Solar Sensor: Testing and Inspection

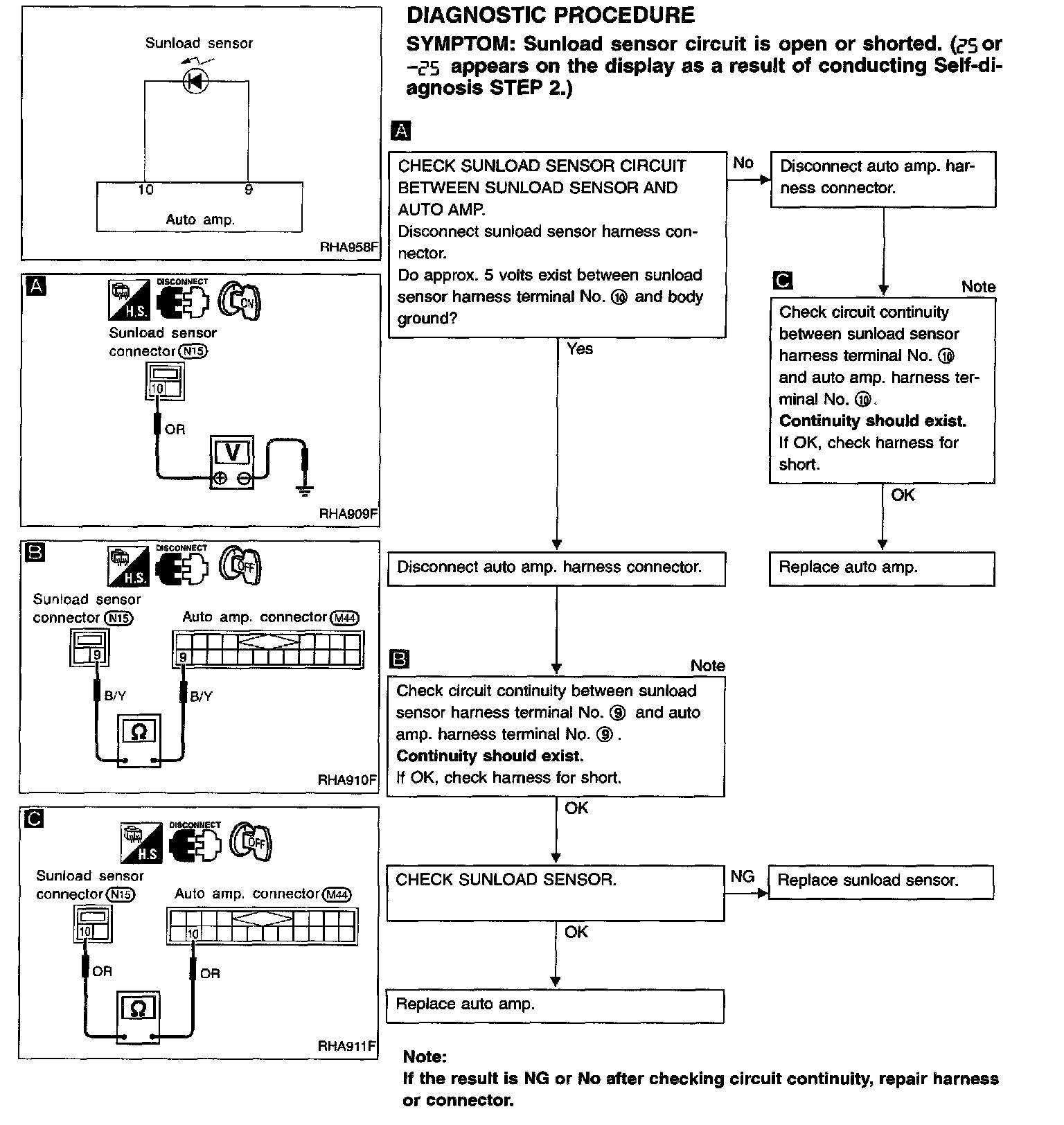

Diagnostic Procedure:

COMPONENT INSPECTION




Sunload sensor
When checking sunload sensor, select a place where sun shines directly on it.

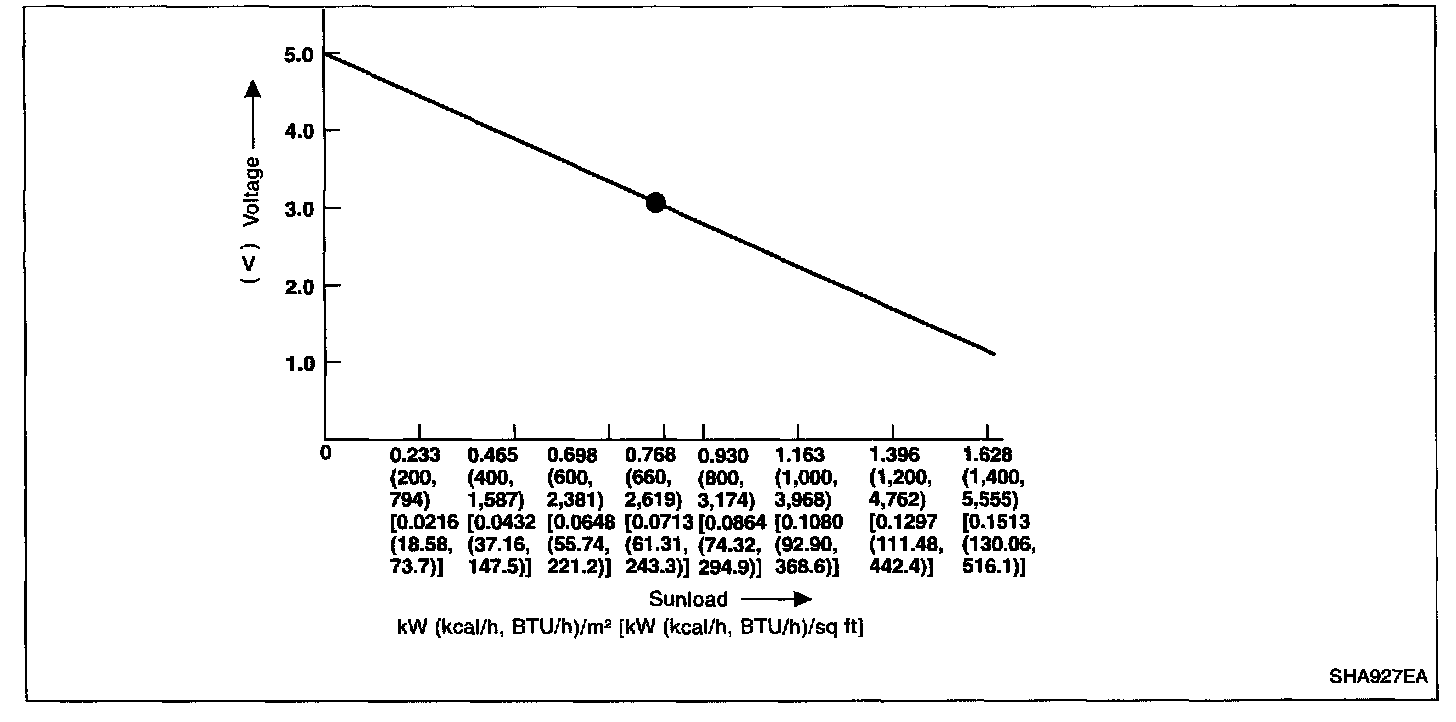

Sunload Sensor Characteristic Curve:
