Interior Lighting Module: Description and Operation

System Description

Outline:

OUTLINE

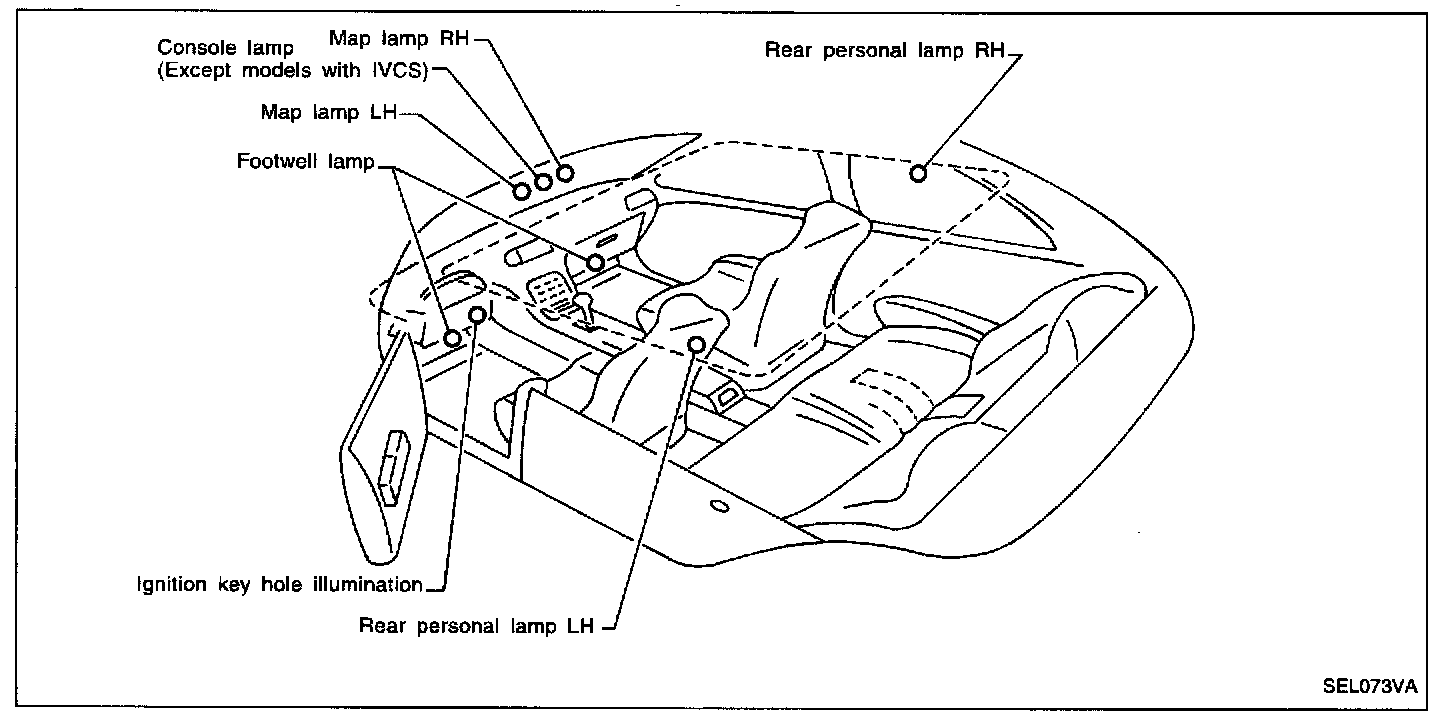

Interior illumination system turns interior illumination lamps on and off while operating the timer. The system operates by means of key switch, lighting switch, each door switch, driver side door unlock sensor, and switches of each lamp. This system is controlled by BCM.




TIMER OPERATION
The timer controls the lighting time of the interior illumination lamps via operation of the driver side door switch, key switch, driver side unlock sensor, and ignition key switch.
- For details of turning on/off function of each of the lamps, see the following charts.

BATTERY SAVER
When the main illumination switch and personal lamp switch are in AUTO position with ignition key in OFF or ACC position, if interior illumination lamps are turned on by door switch open signal and remain lit for more than 30 minutes, the lamps turn off automatically.

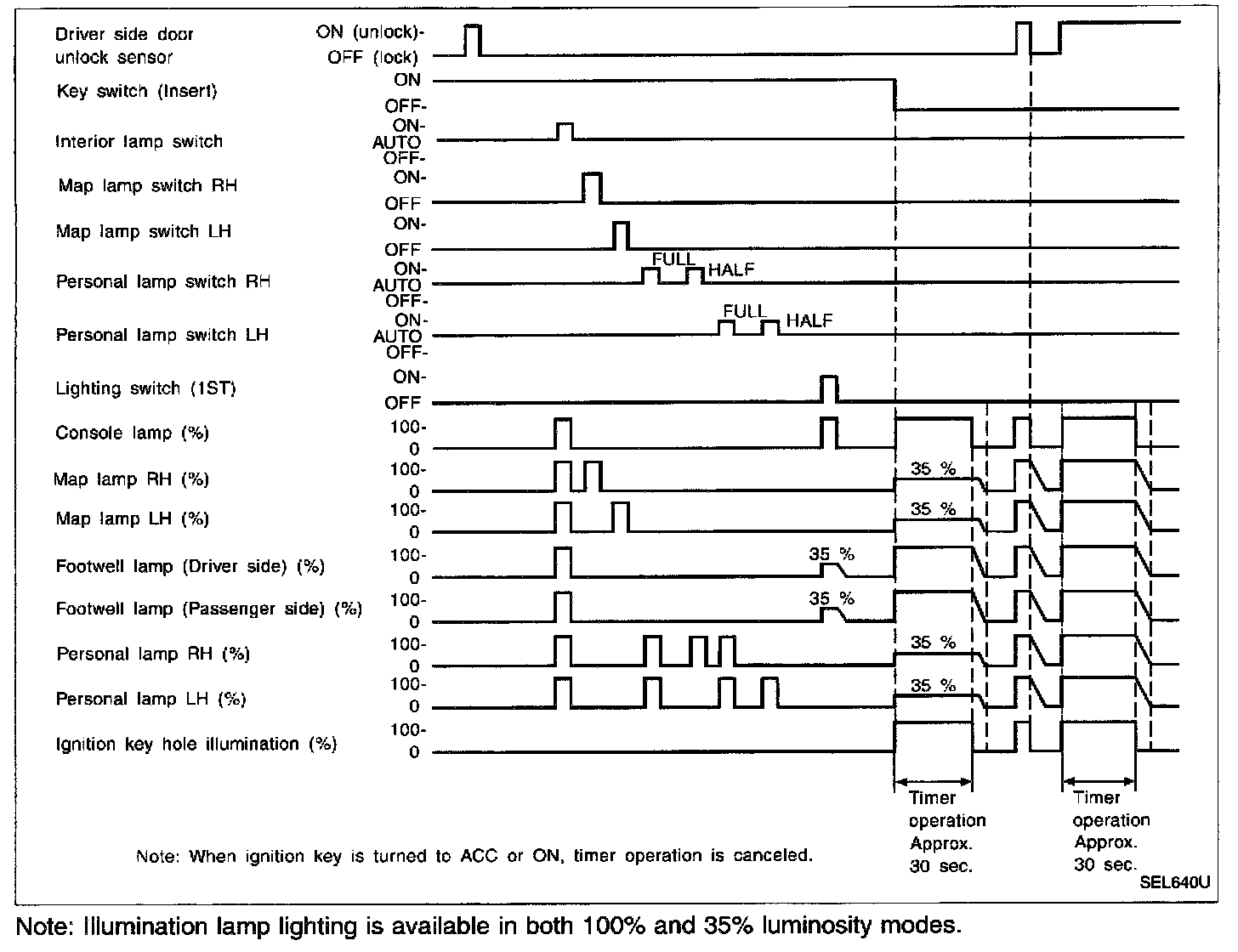

Turn On/Off Mode Of Driver Side Door Open/Close:

TURN ON/OFF MODE OF DRIVER SIDE DOOR OPEN/CLOSE

NOTE: Illumination lamp lighting is available in both 100% and 35% luminosity modes.

Turn On/Off Mode Of Passenger Side Door Open/Close:

TURN ON/OFF MODE OF PASSENGER SIDE DOOR OPEN/CLOSE

Turn On/Off Mode Of Rear Door Open/Close:

TURN ON/OFF MODE OF REAR DOOR OPEN/CLOSE

NOTE: Illumination lamp lighting is available in both 100% and 35% luminosity modes.

Turn On/Off Mode Of Each Switch Condition:

TURN ON/OFF MODE OF EACH SWITCH CONDITION

NOTE: Illumination lamp lighting is available in both 100% and 35% luminosity modes.
