Multiple Junction Connector: Service and Repair

INSTALLATION

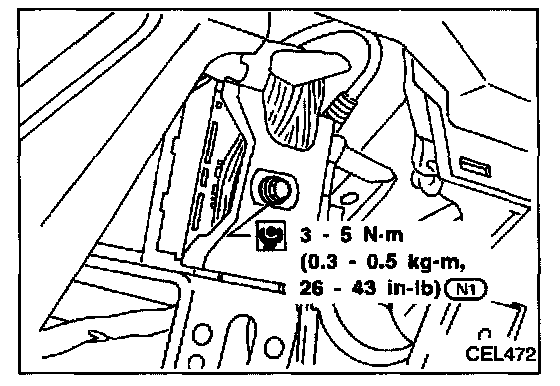

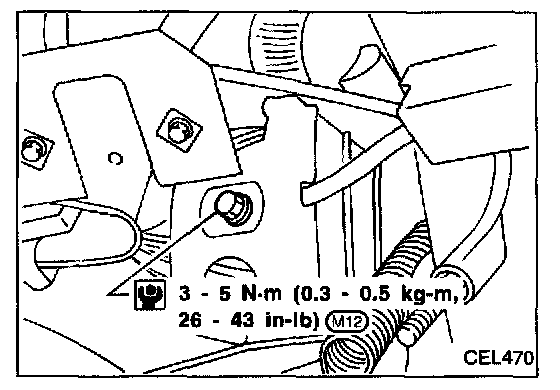

To install SMJ, tighten bolts until orange "fulltight" mark appears and then retighten to specified torque as required.

Tightening Torque: 3 - 5 N.m
(0.3 - 0.5 kg.m, 26 - 43 in.lb)

CAUTION: Do not overtighten bolts, otherwise, they may be damaged.




Grommet
A grommet of the shape shown is used for engine room harness through hole and engine control harness.

CAUTION: Do not use old inner protector after removal; replace with new one.
