Lifting Points
>>

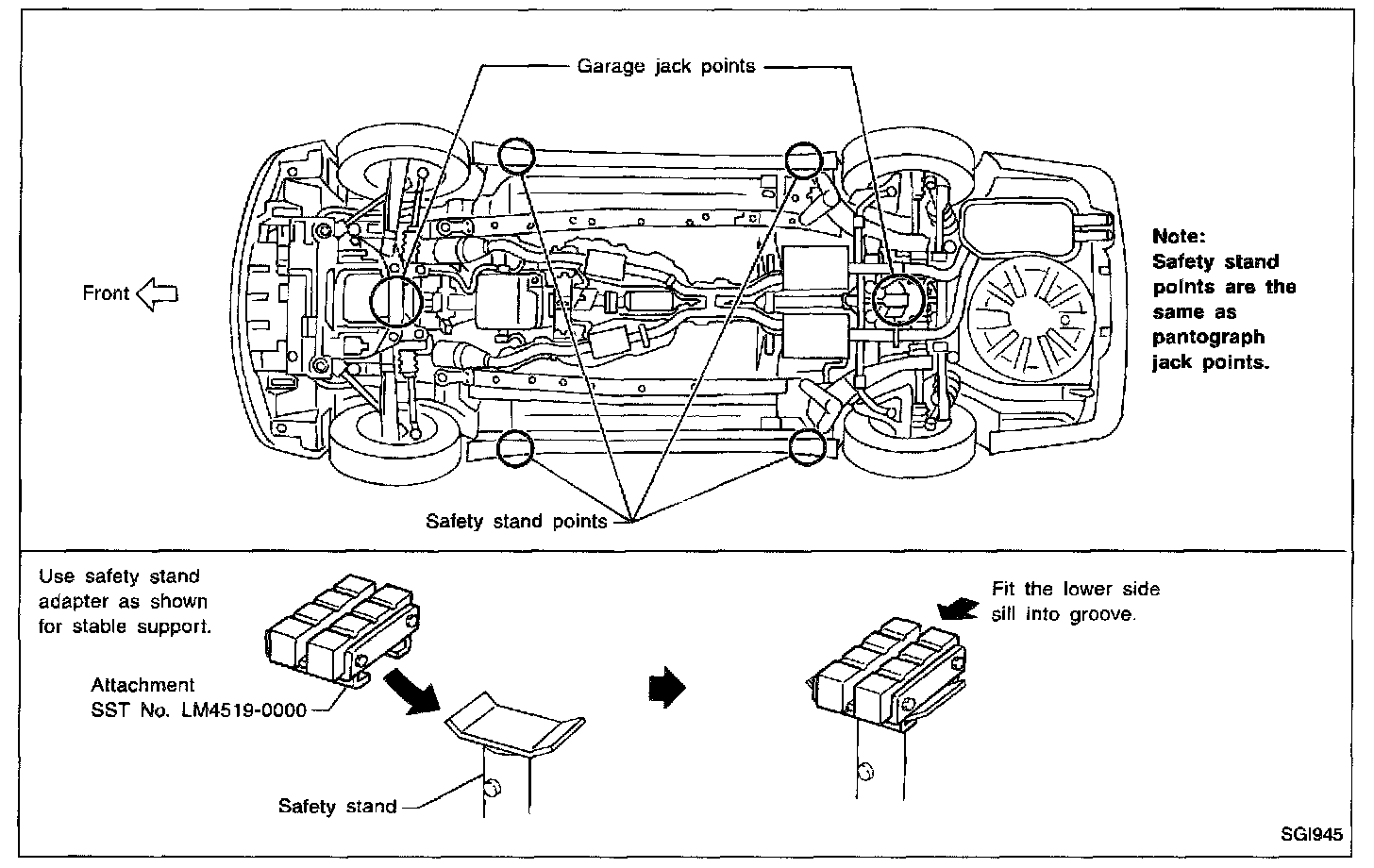

Garage Jack and Safety Stand
Garage Jack and Safety Stand
WARNING:
-
Never get under the vehicle while it is supported only by the jack. Always use safety stands when you have to get under the vehicle.
-
Place wheel chocks at both front and back of the
wheels
on the ground.
