Exhaust Manifold






TIGHTENING SPECIFICATIONS
Mounting Bolts [1]: 5.1 - 6.5 Nm (45.1 - 57.3 inch lbs.)

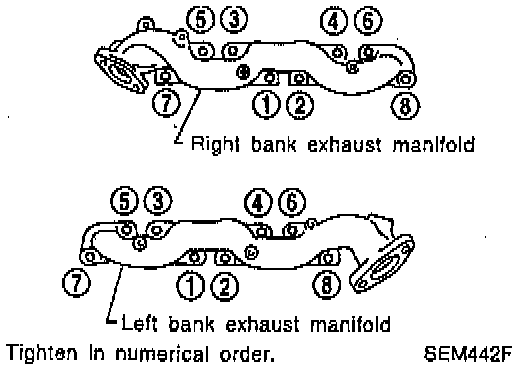

[1] Refer to the illustration for the proper tightening sequence.
