Power Seat Motor - No Forward/Aft Movement: Overview

Classification:
BT01 - 007

Reference:
ITB01 - 009

Date:
March 1, 2001

1996-2001 Q5; POWER SEAT MOTOR - NO OPERATION (FORWARD/AFT)

APPLIED VEHICLE(S):
1996-2001 Q45 (FY33)

SERVICE INFORMATION

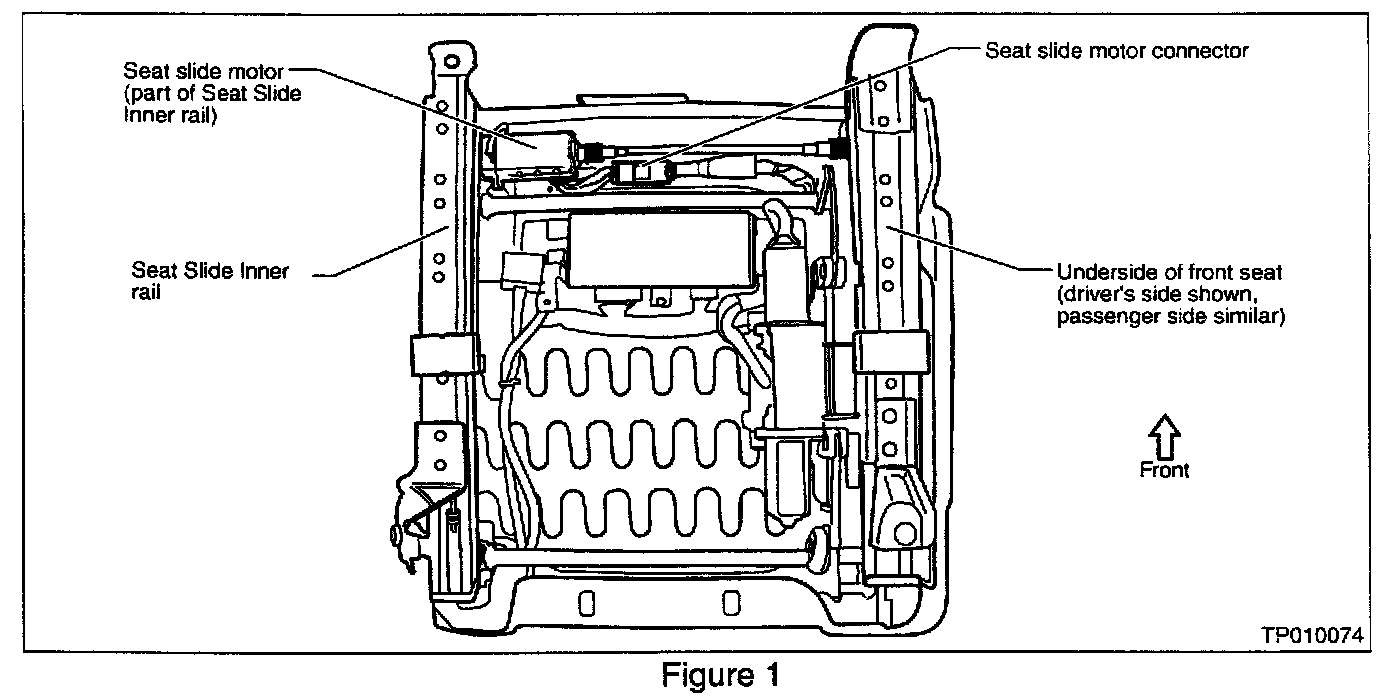

If either the driver's or front passenger's seat in an Applied vehicle will not move in the forward or backward direction, the Seat Slide Inner rail (which incorporates the slide motor and slide track assembly, see Figure 1) may need replacement.

Follow the Service Procedure in this Bulletin to assist in diagnosing the incident and install the applicable Seat Slide Inner rail from the Parts Information section of this bulletin, if this incident should occur.





PARTS INFORMATION

CLAIMS INFORMATION

NOTE:
This is the ONLY approved repair procedure for this incident. A claim to Infiniti division for the repair of this incident may be denied if the repair is not performed exactly as outlined in this bulletin.





Submit a Primary Failed Part (PP) line claim using the claims coding shown.
