Flow of Diagnosis

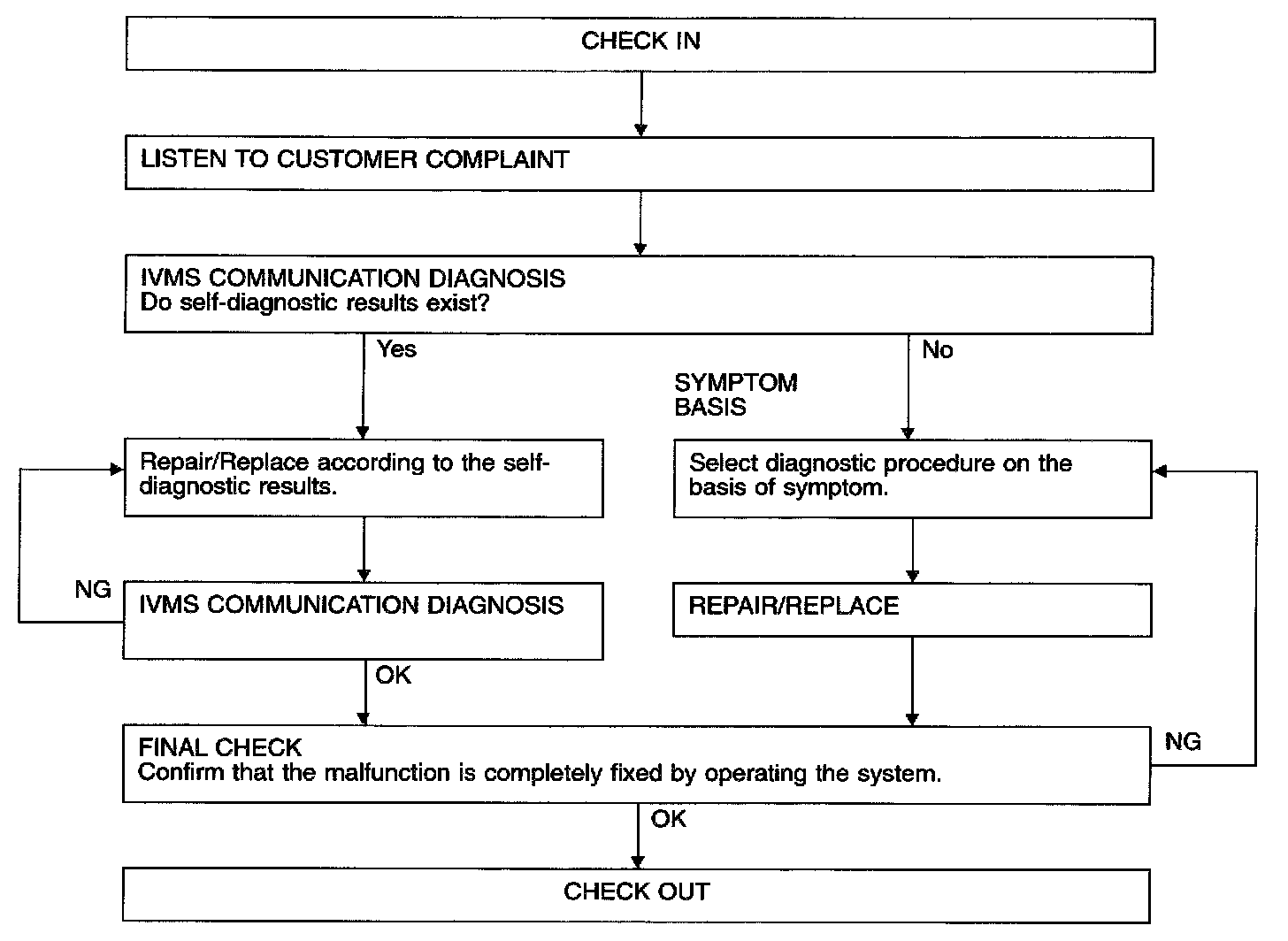

Work Flow:

WORK FLOW

NOTE:
- When LCU connectors are disconnected for more than 1 minute such as during trouble diagnoses, the "disconnected" data will be memorized by the BCM. (While BCM memorizes the "disconnected" data, IVMS communication diagnosis of CONSULT-II will display "PAST NO RESPONSE".) Therefore, after reconnecting the LCU connectors, erase the memory.
- To erase the memory, perform the procedure below.
Erase the memory with CONSULT-II or turn the ignition switch to "OFF" position and remove 7.5 A fuse [No. [14] located in the fuse block (J/B)].

Part 1:

Part 2:

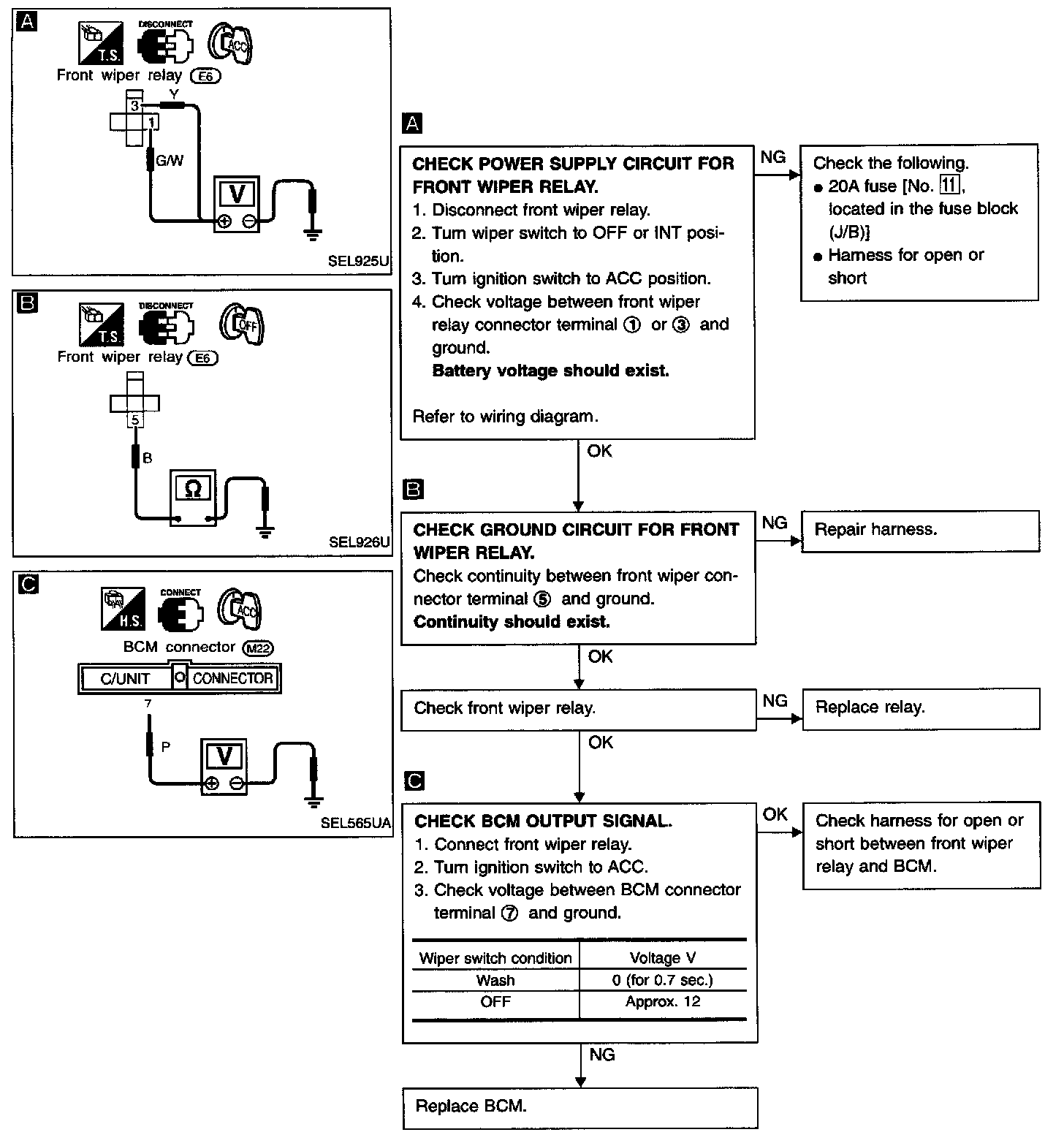

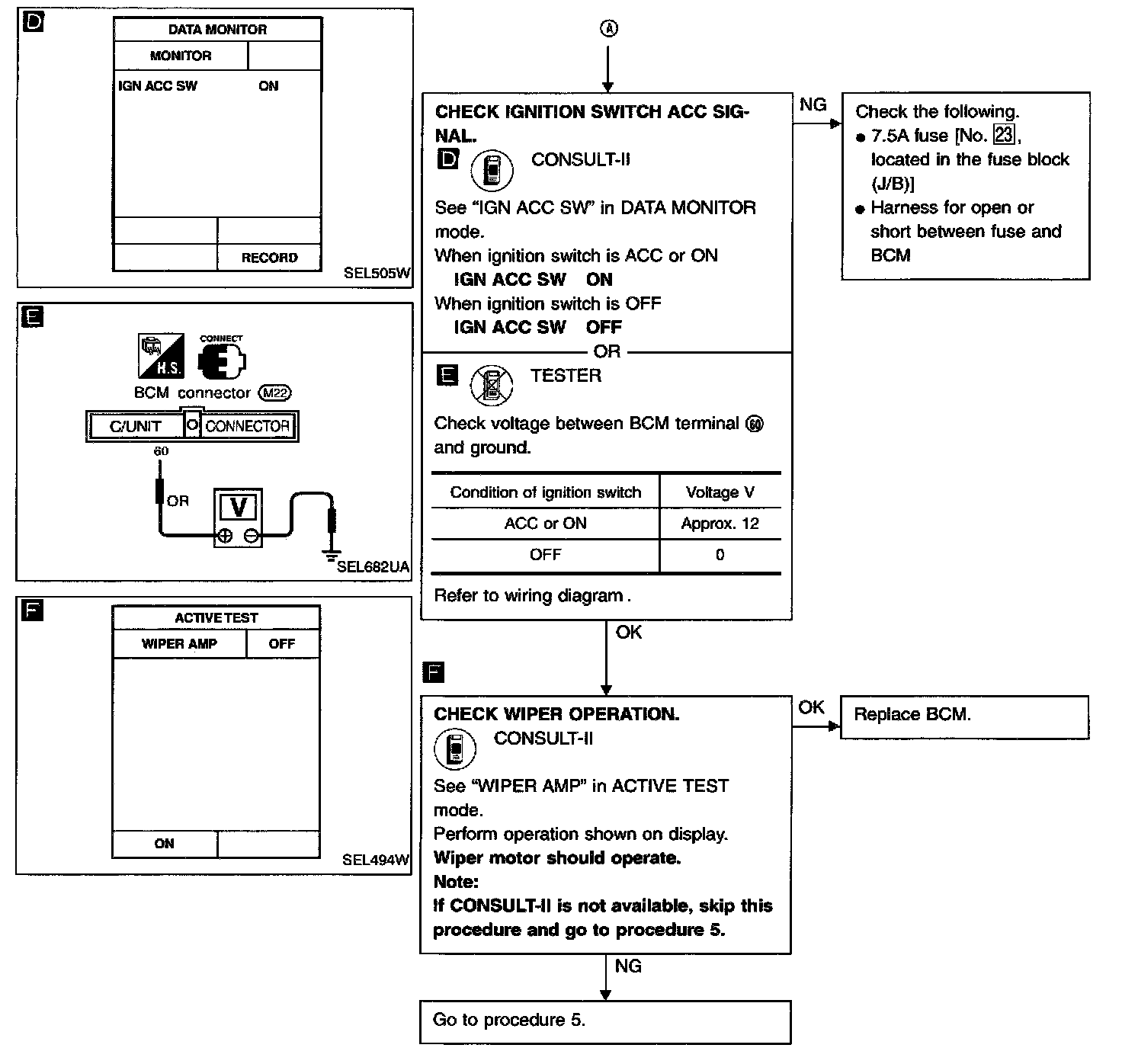

DIAGNOSTIC PROCEDURE 1
SYMPTOM: Intermittent wiper does not operate.




DIAGNOSTIC PROCEDURE 2
SYMPTOM: Intermittent time of wiper cannot be adjusted.




DIAGNOSTIC PROCEDURE 3
SYMPTOM: Wiper and washer activate individually but not in combination.




DIAGNOSTIC PROCEDURE 4
SYMPTOM: Intermiffent wiper operates, but there is no change in intermiffent time between when vehicle is stopped and moving.




DIAGNOSTIC PROCEDURE 5
SYMPTOM: Wiper and washer activate individually but intermittent wiper and washer combination does not operate.
