Dashboard / Instrument Panel: Service and Repair
CAUTION:- Disconnect both battery cables in advance
- Disconnect air bag system line in advance.
- Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
- Be careful not to scratch pad and other parts.
Part 1:
Part 2:
Part 3:

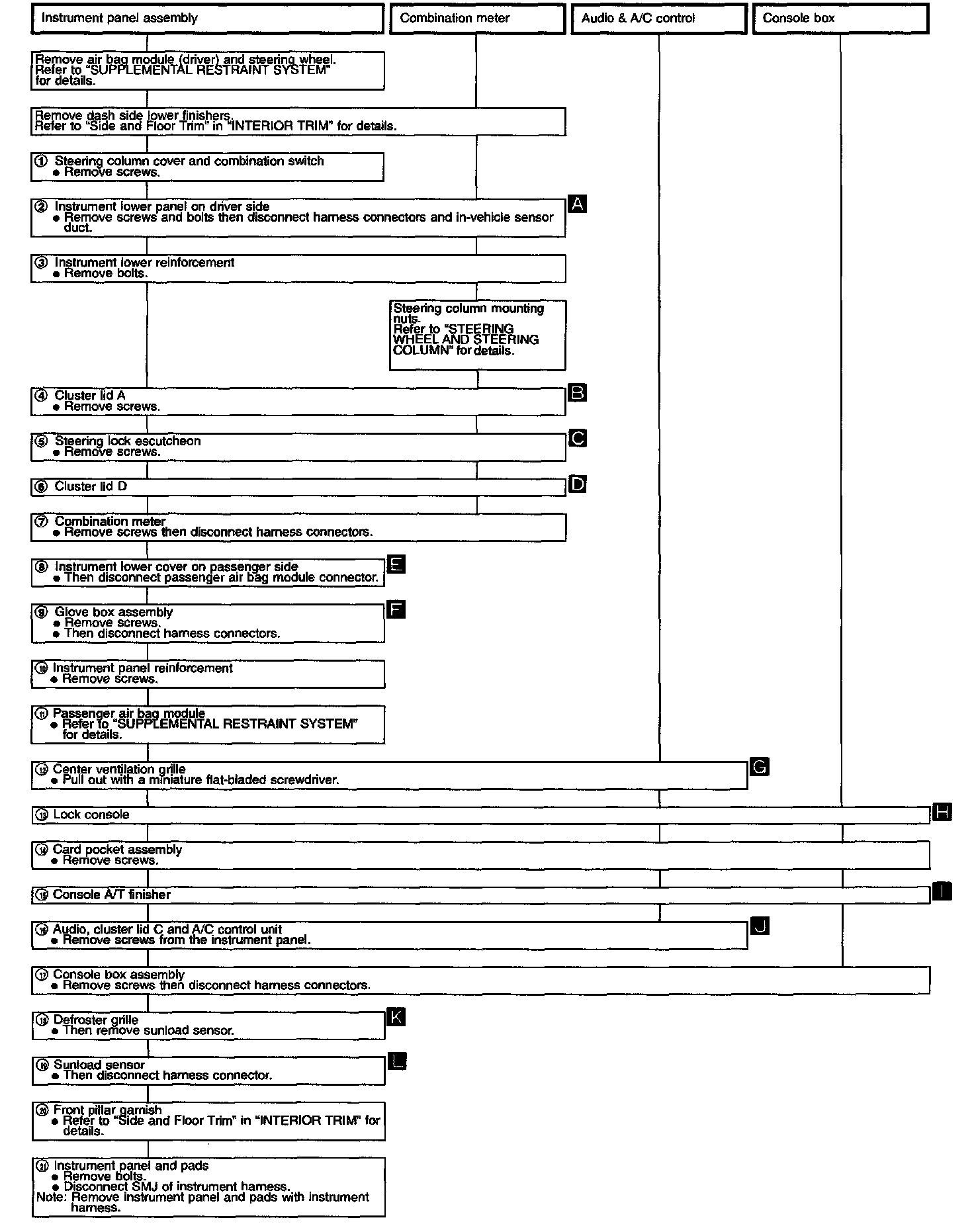

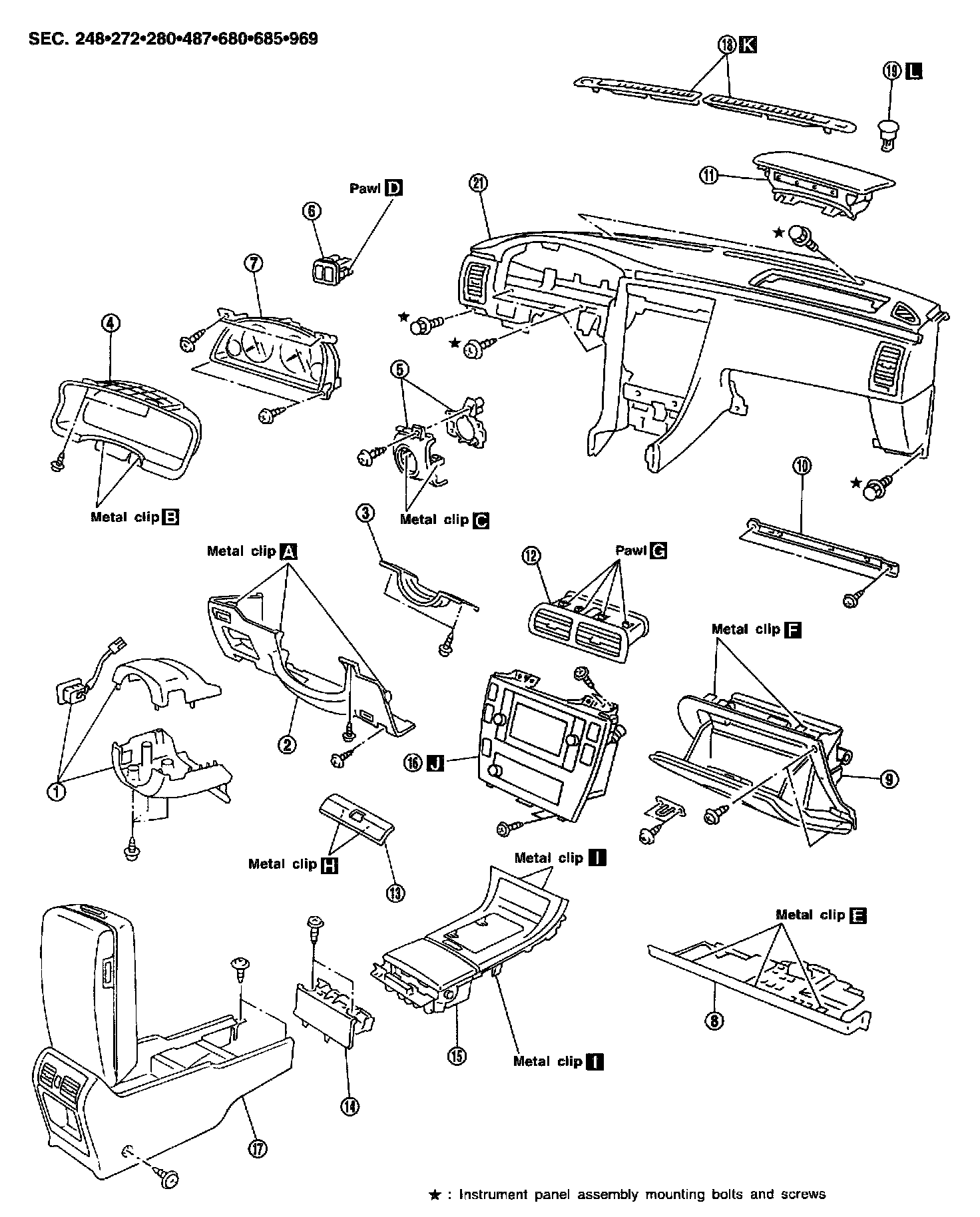

REMOVAL - Instrument panel assembly
