Vehicle Security (Theft Warning) System Diagram
Vehicle Security (Theft Warning) System Diagram

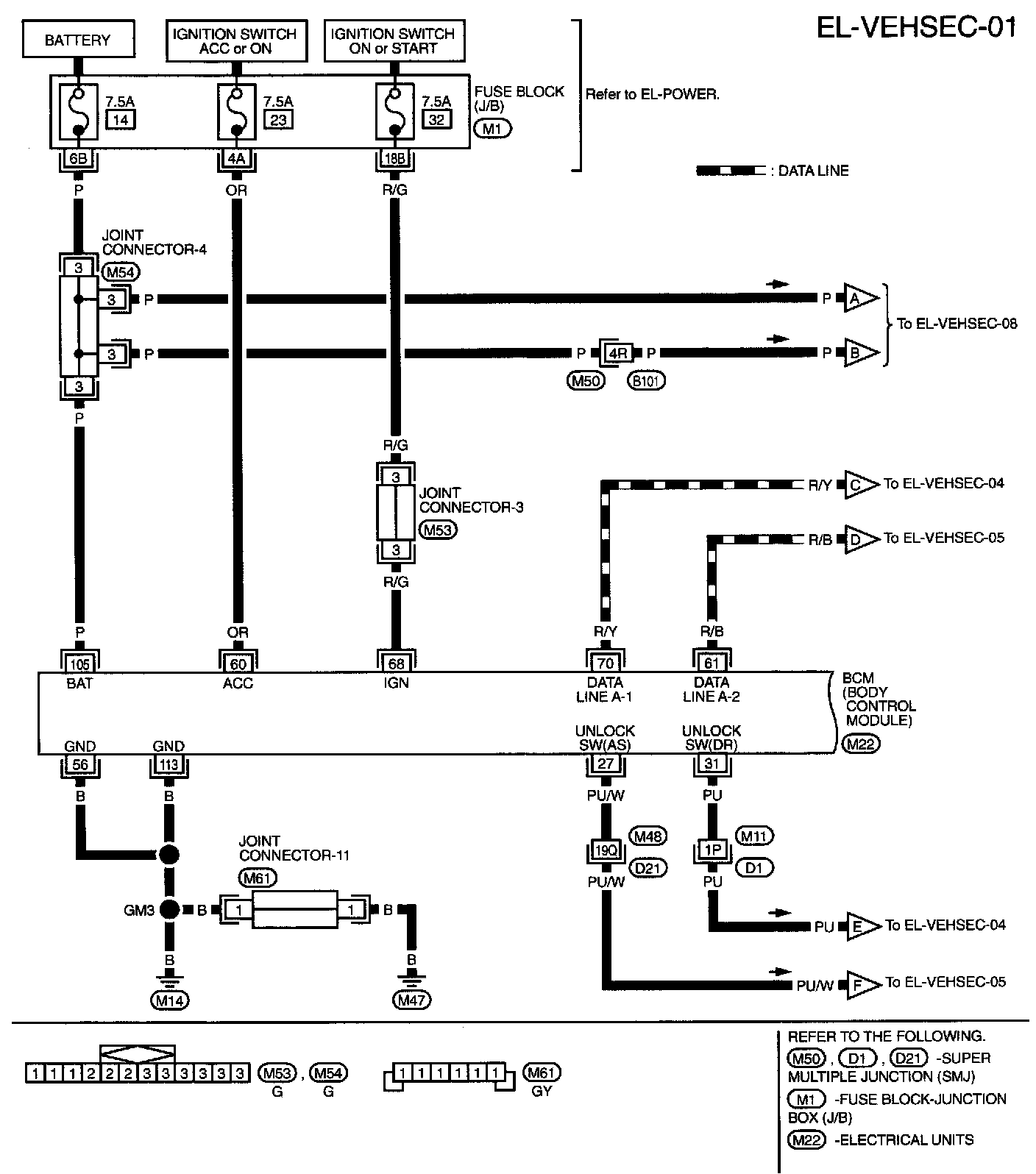

EL-VEHSEC-01:

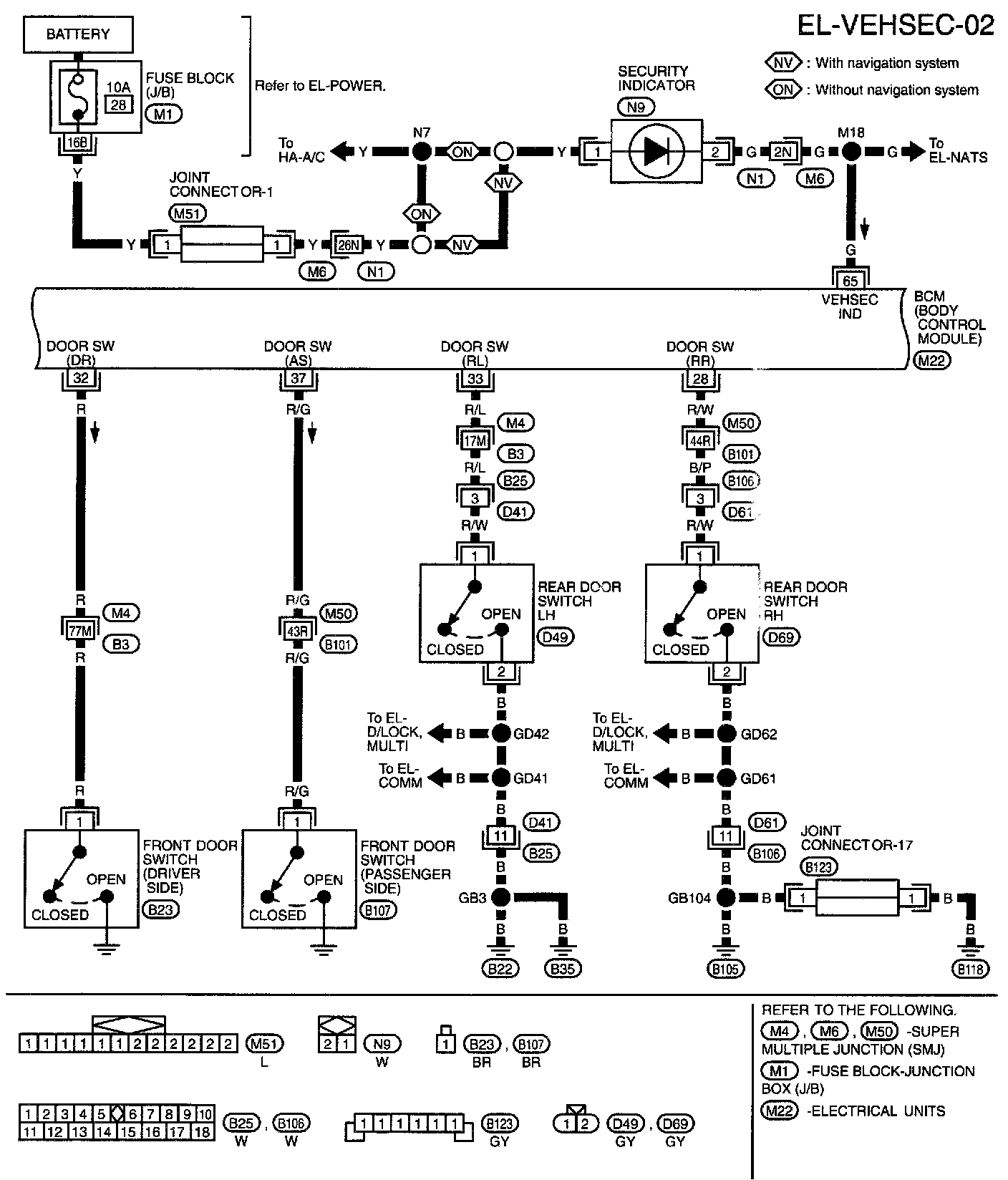

EL-VEHSEC-02:

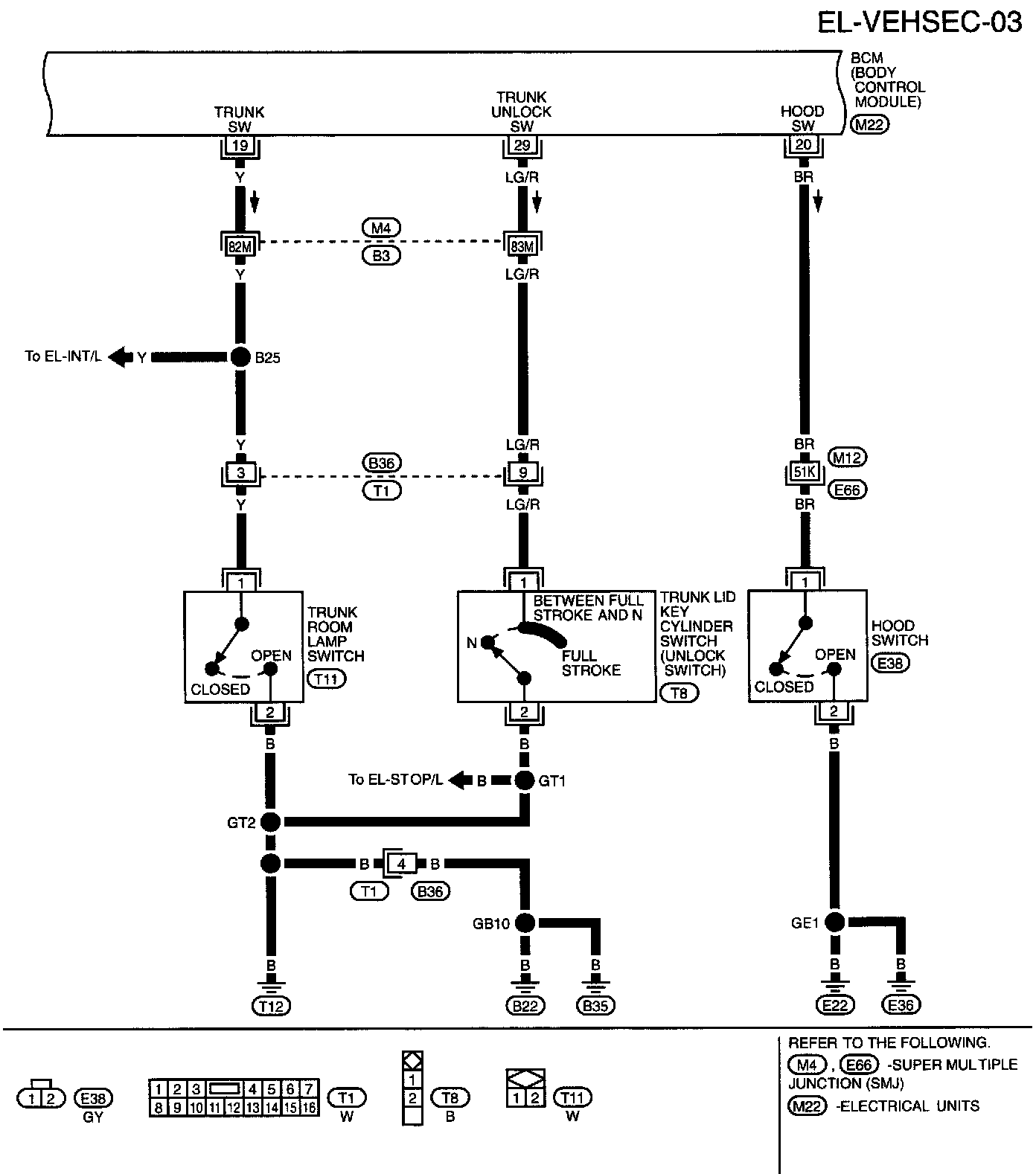

EL-VEHSEC-03:
EL-VEHSEC-04:

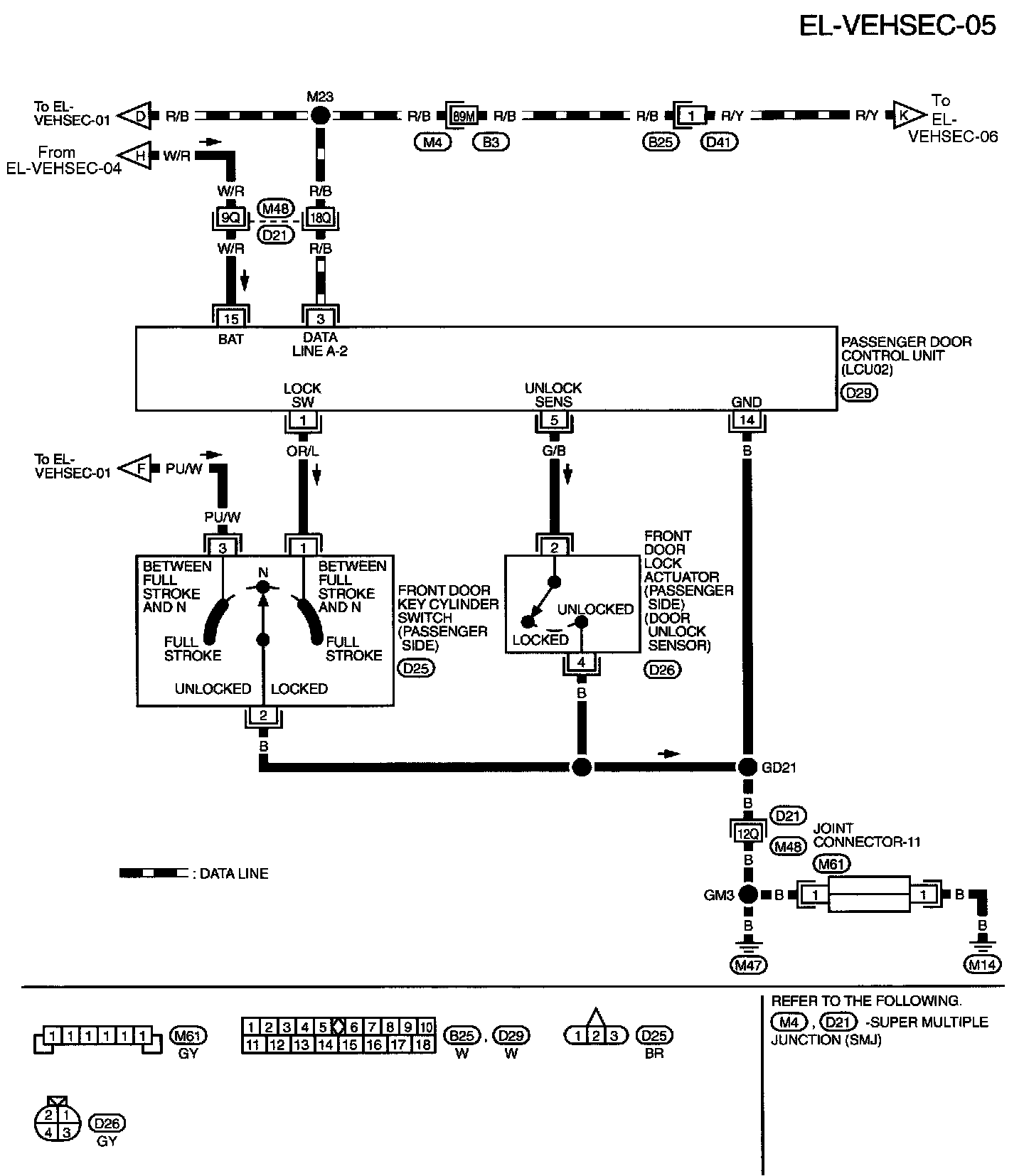

EL-VEHSEC-05:

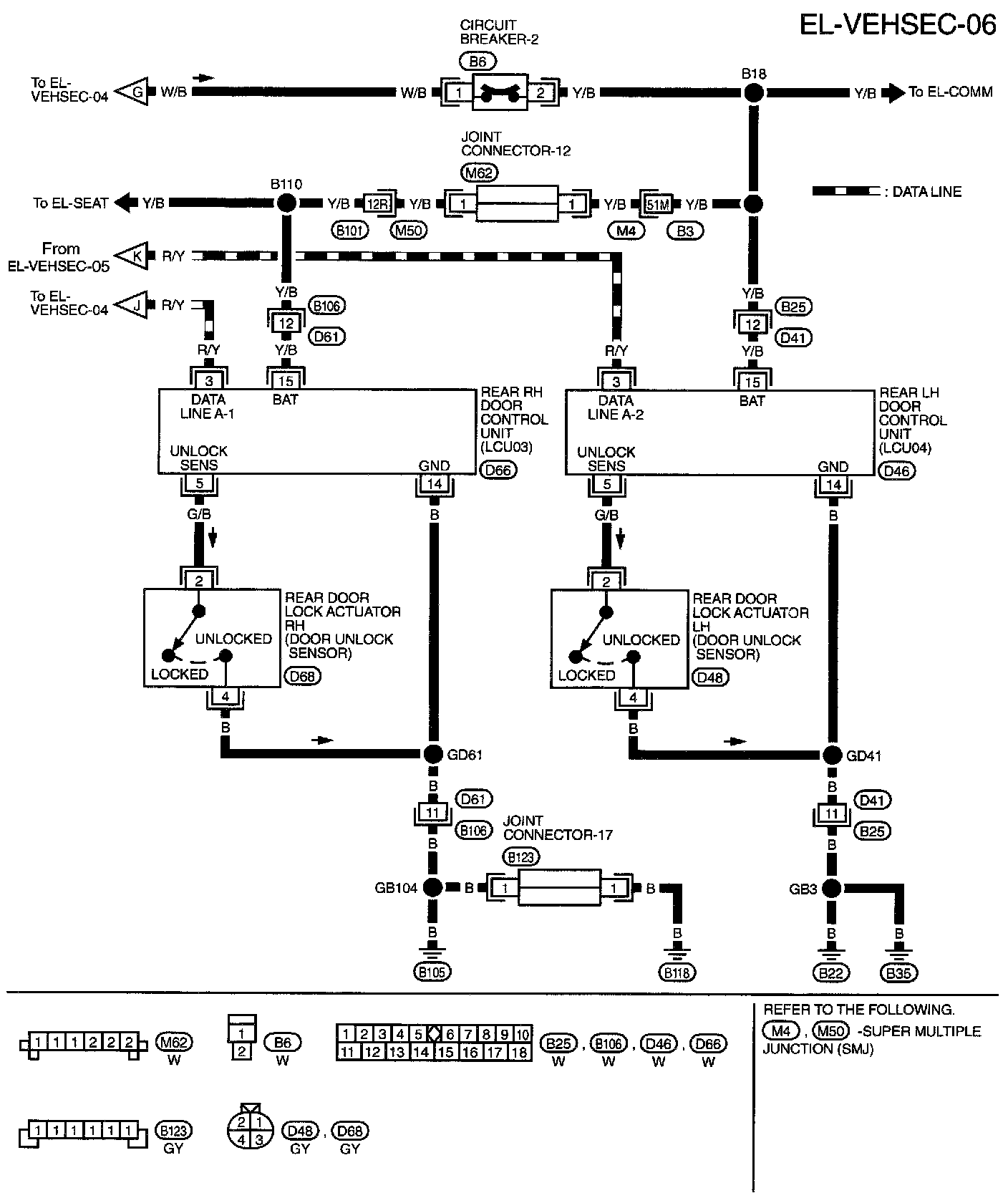

EL-VEHSEC-06:

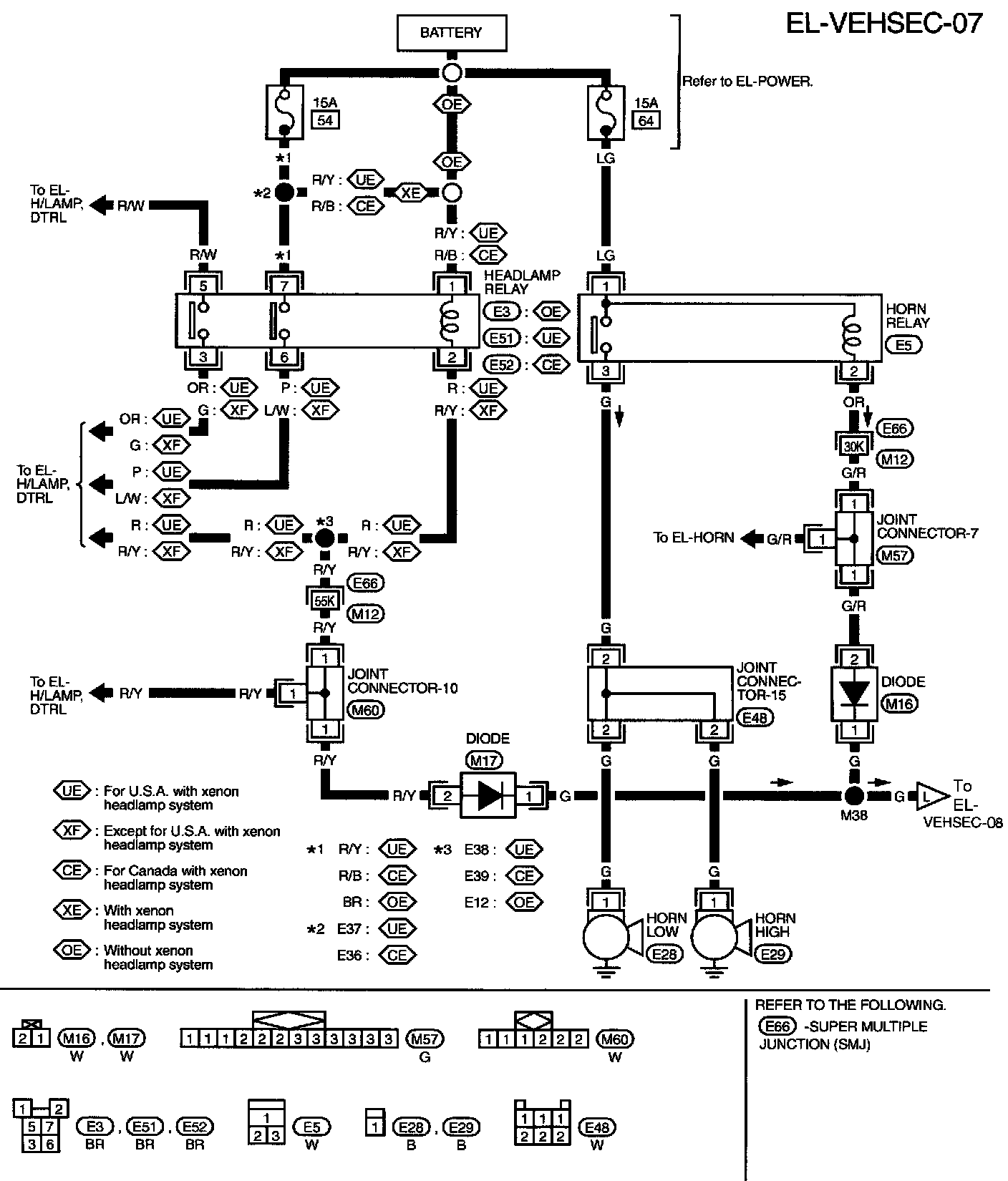

EL-VEHSEC-07:
EL-VEHSEC-08:
