Courtesy Lamp
>>
El-Step/L
El-Step/L

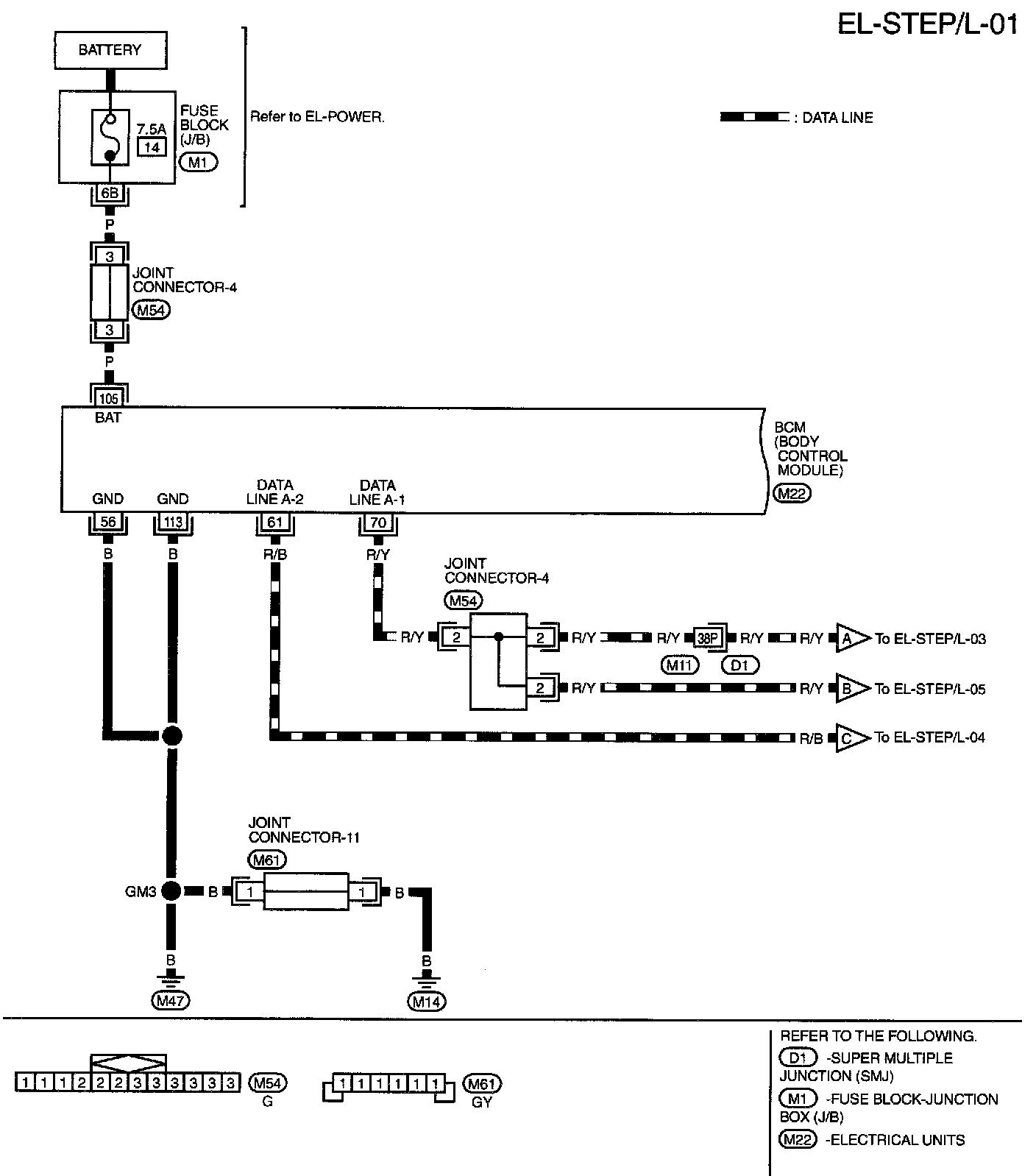

EL-STEP/L-01:
EL-STEP/L-02:

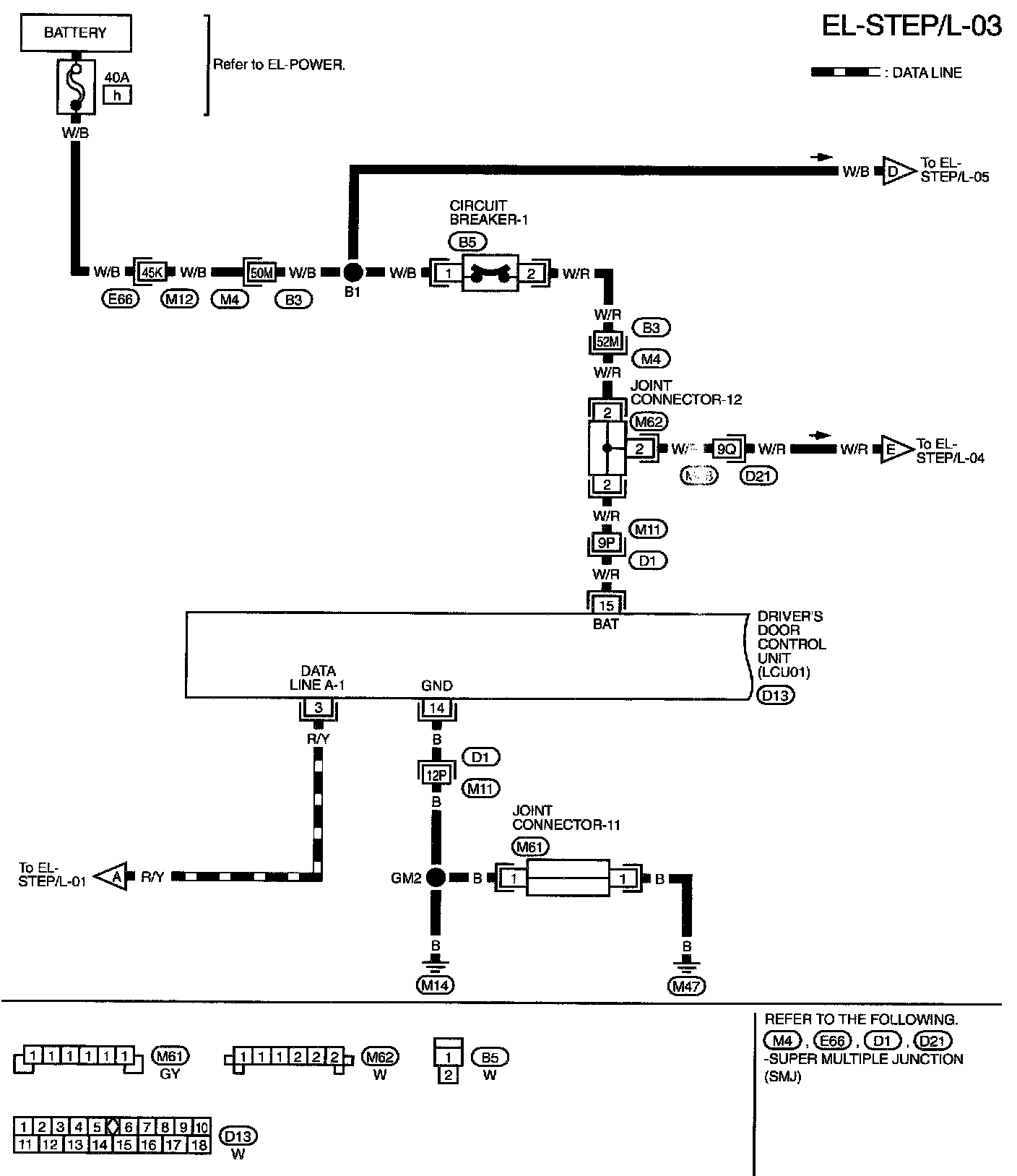

EL-STEP/L-03:

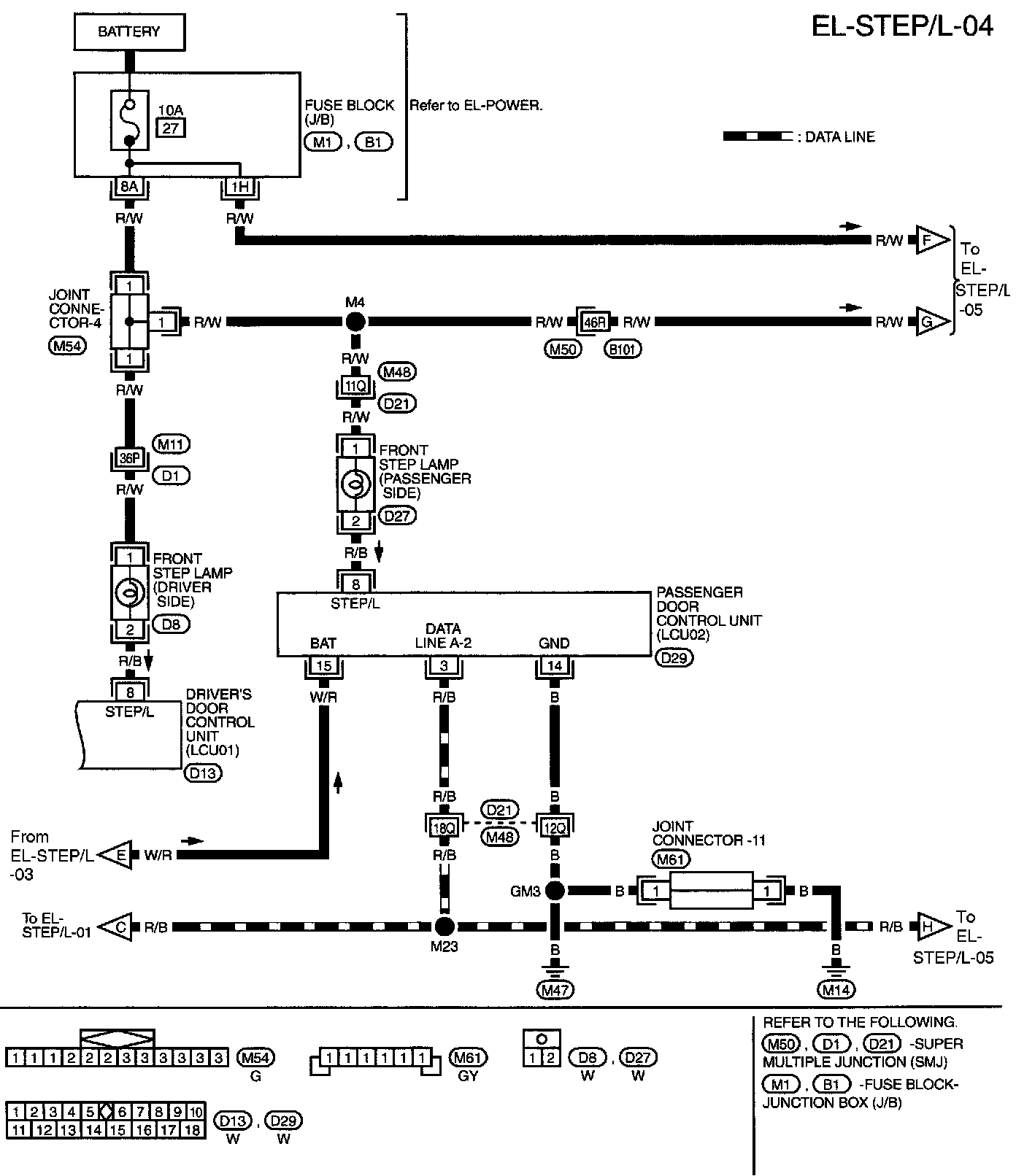

EL-STEP/L-04:
EL-STEP/L-05:
