Headlamp
>>
El-H/Lamp
El-H/Lamp

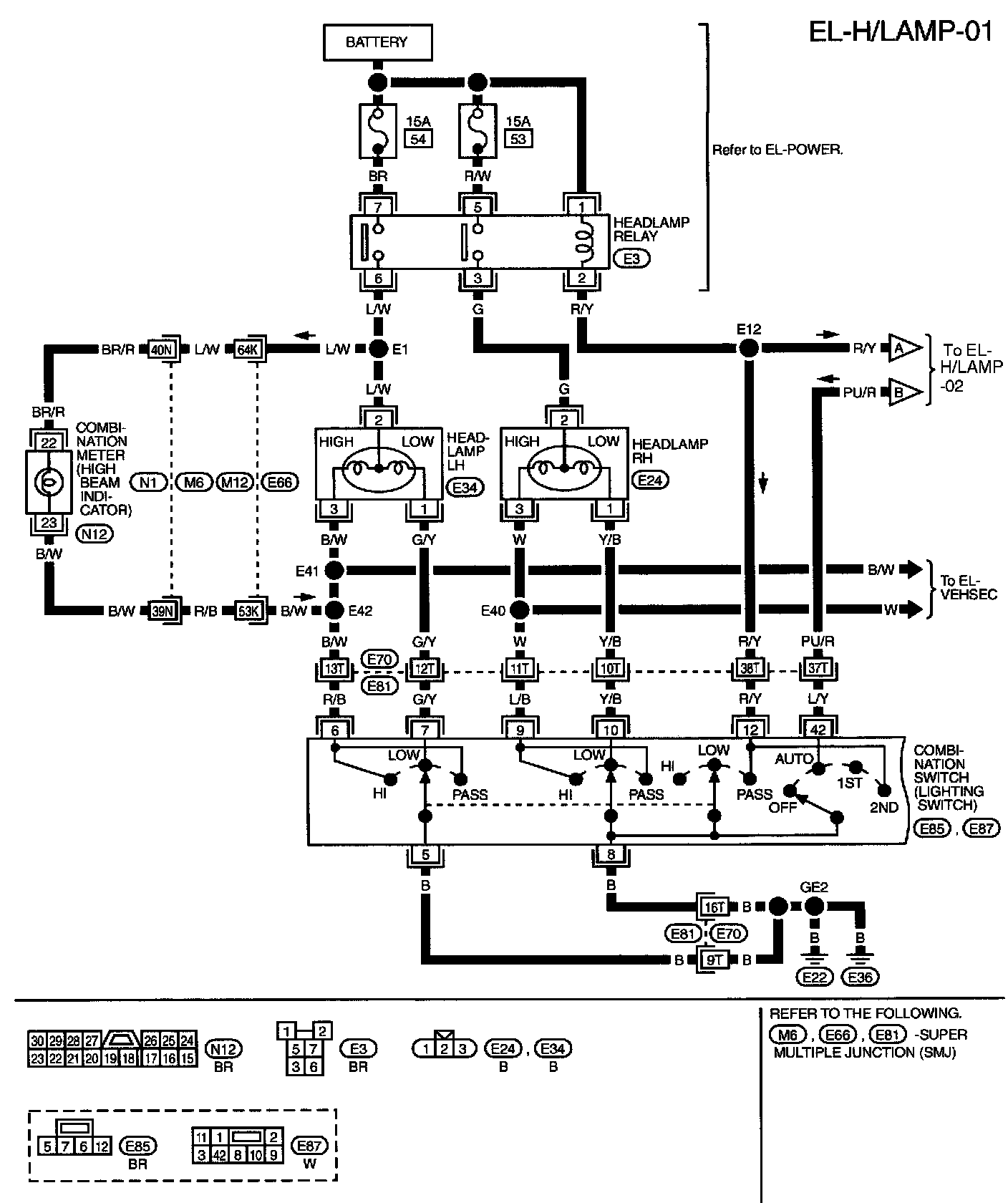

EL-H/LAMP-01 (USA / Conventional):
EL-H/LAMP-02 (USA / Conventional):
EL-H/LAMP-03 (USA / Conventional):

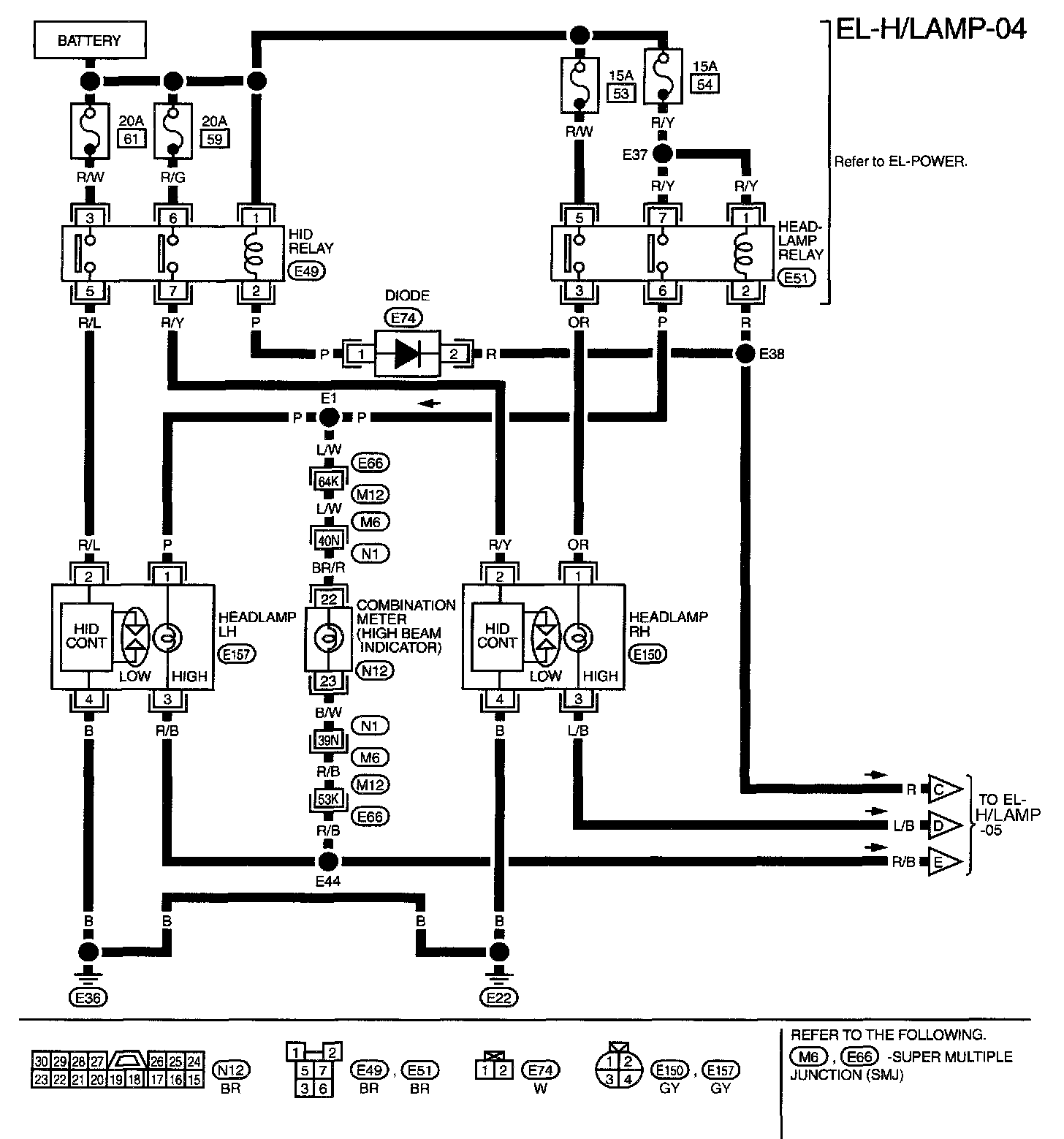

EL-H/LAMP-04 (USA / Xenon):

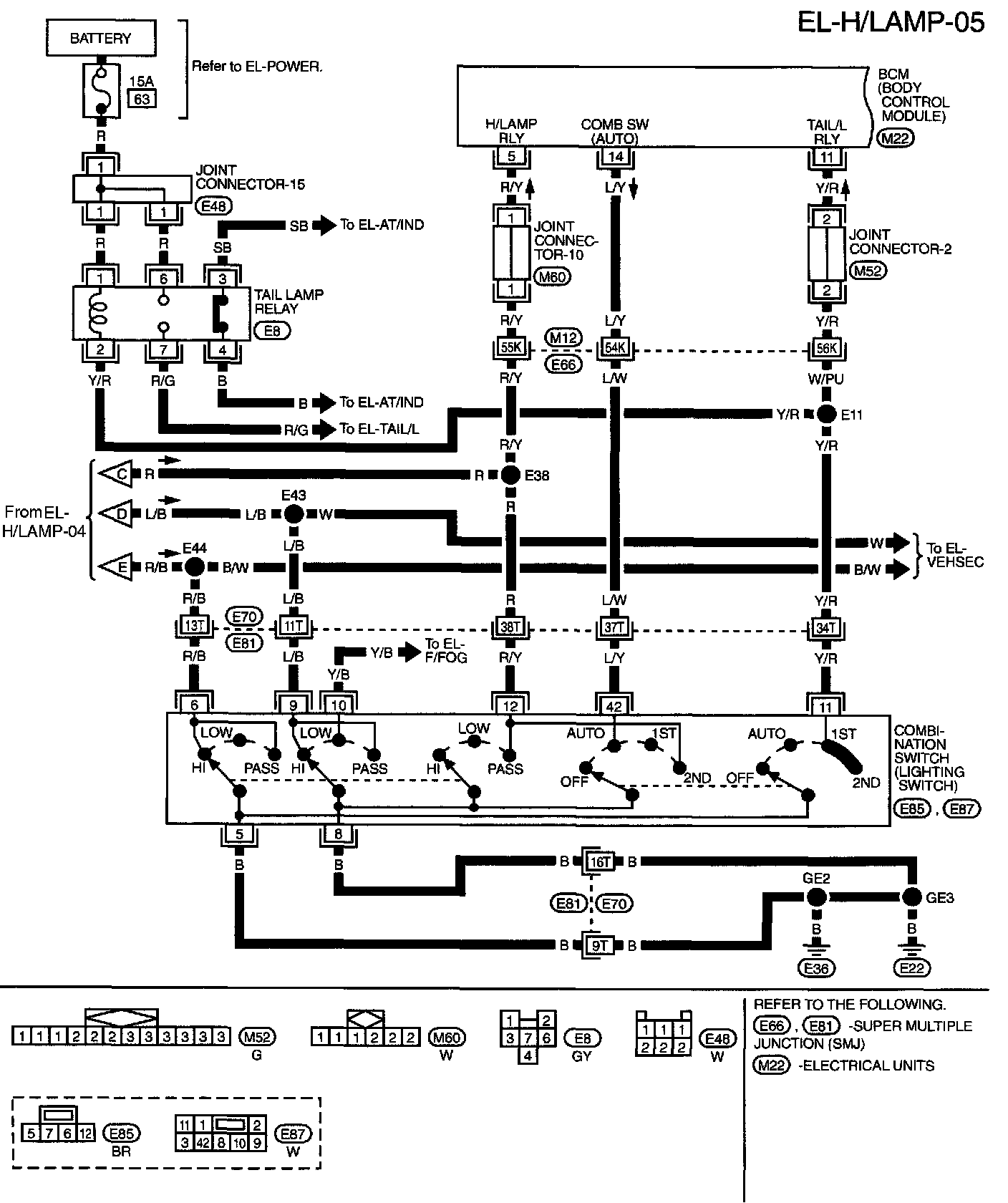

EL-H/LAMP-05 (USA / Xenon):

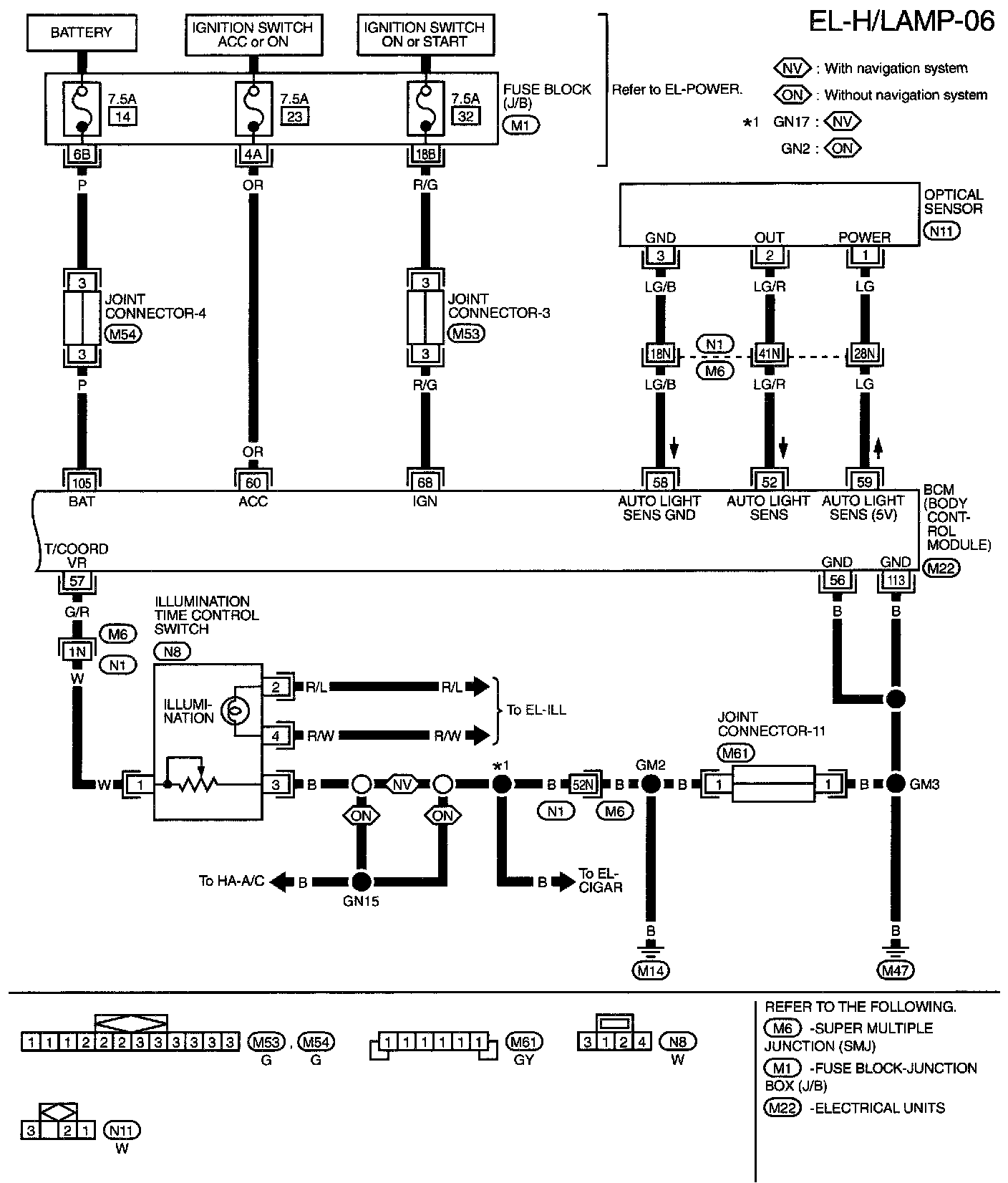

EL-H/LAMP-06 (USA / Xenon):
