Home >> Infiniti >> 2001 >> Q45t V8-4130cc 4.1L DOHC MFI (VH41) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> Schematic

Schematic

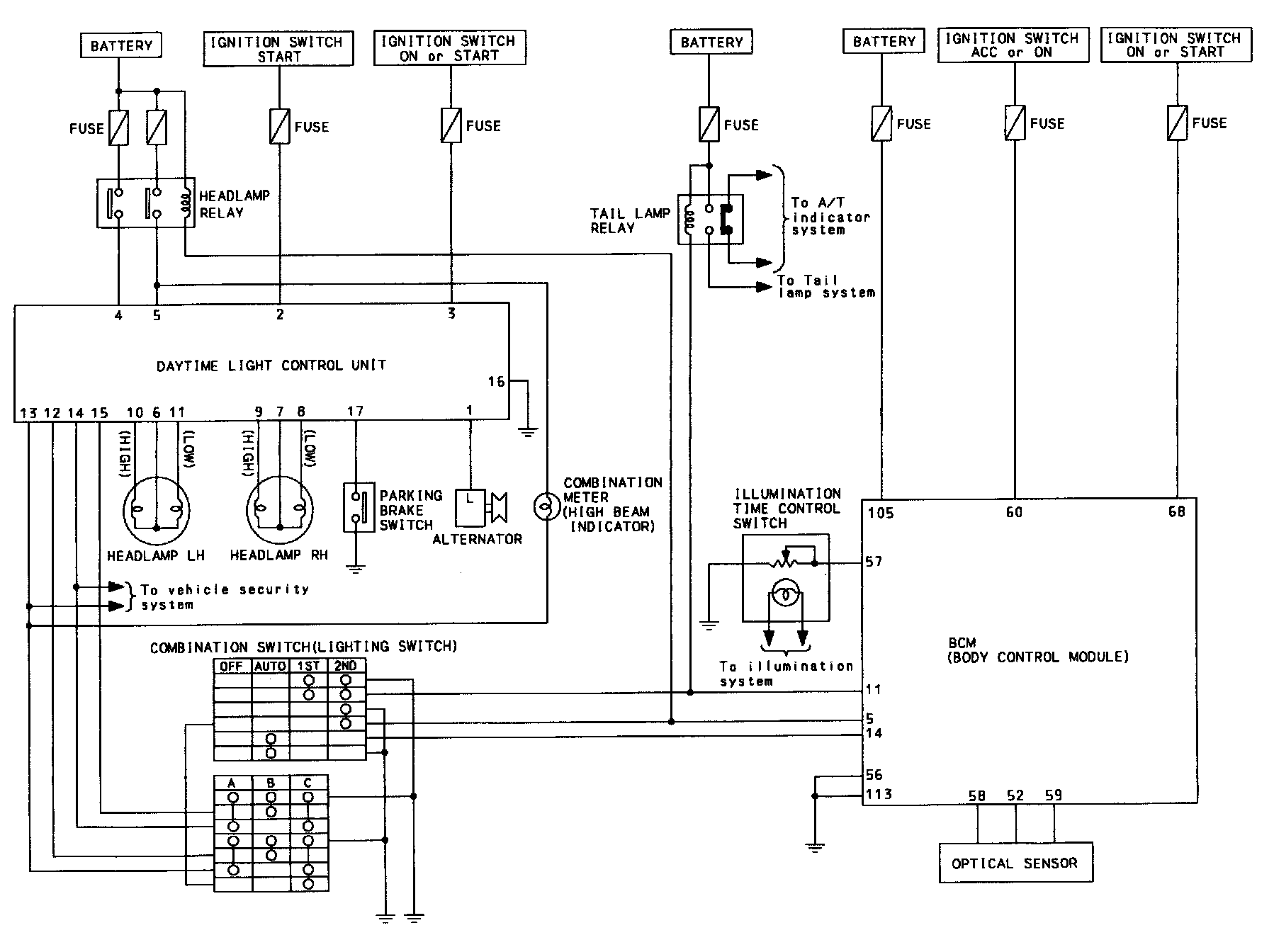

Schematic (USA / Conventional):

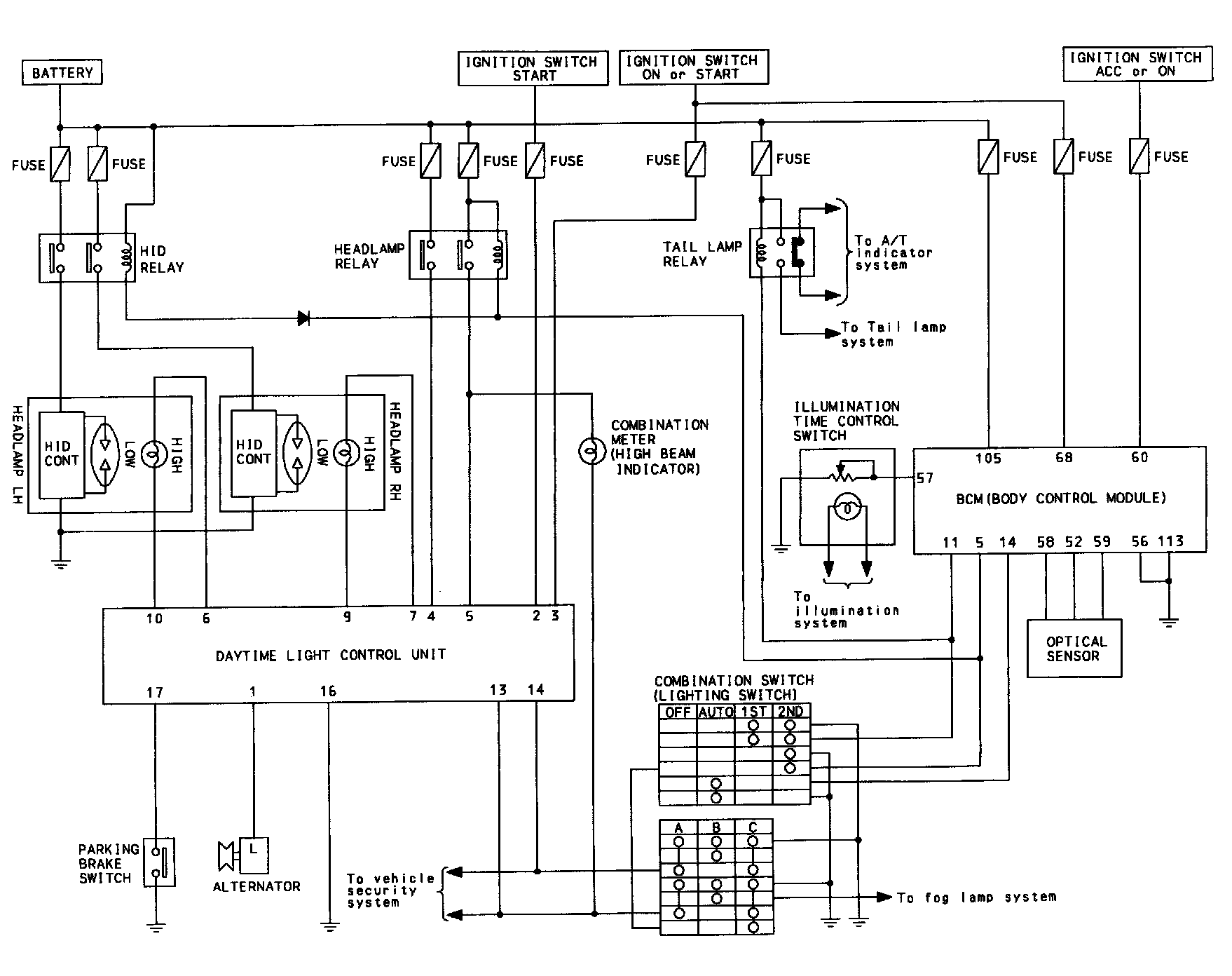

Schematic (USA / Xenon):

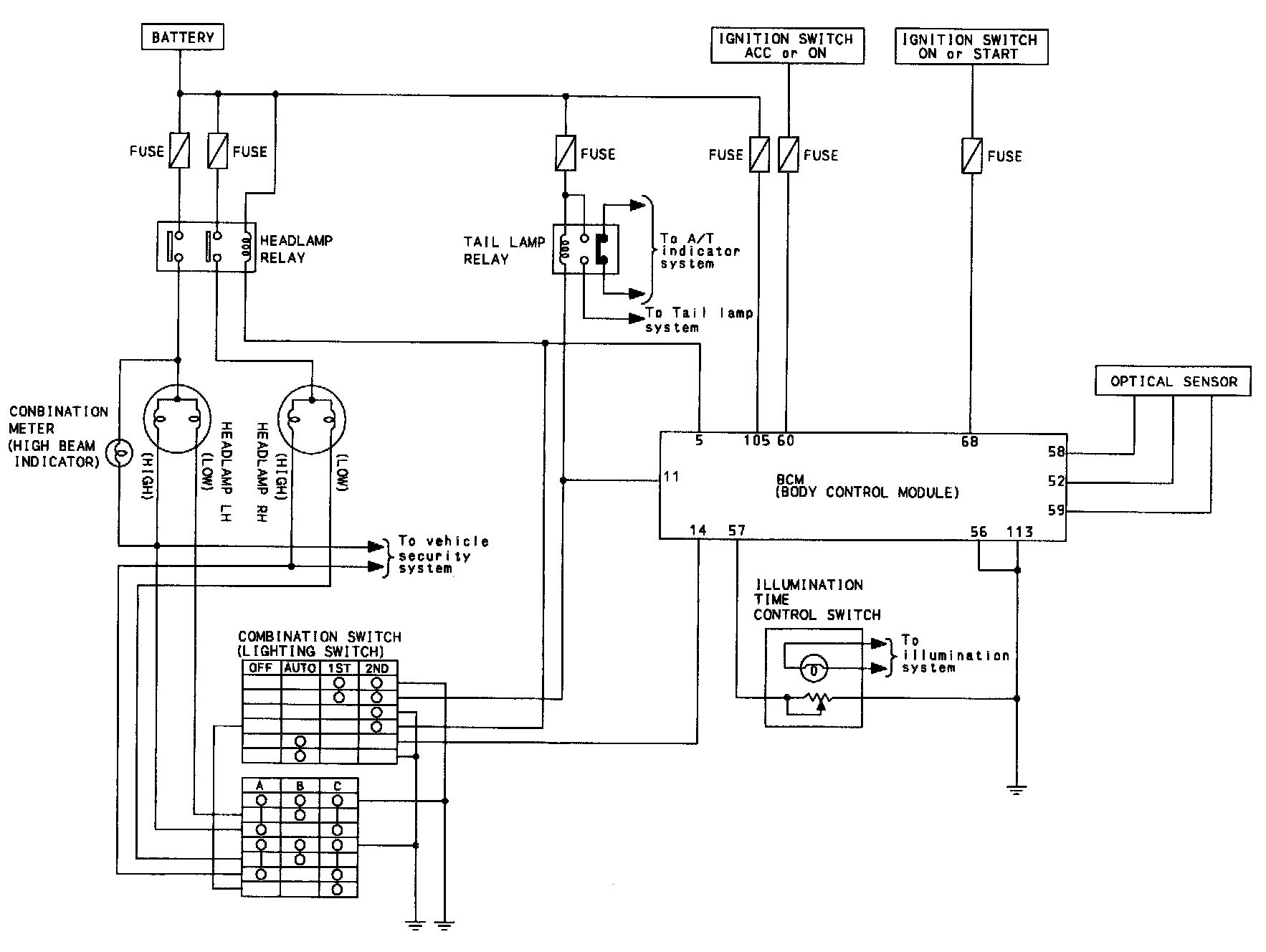

Schematic (Canada / Conventional):

Schematic (Canada / Xenon):
