Home
>>
Infiniti
>>
2001
>>
Q45t V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
EL-T&FLID
EL-T&FLID
EL-T&FLID-01:

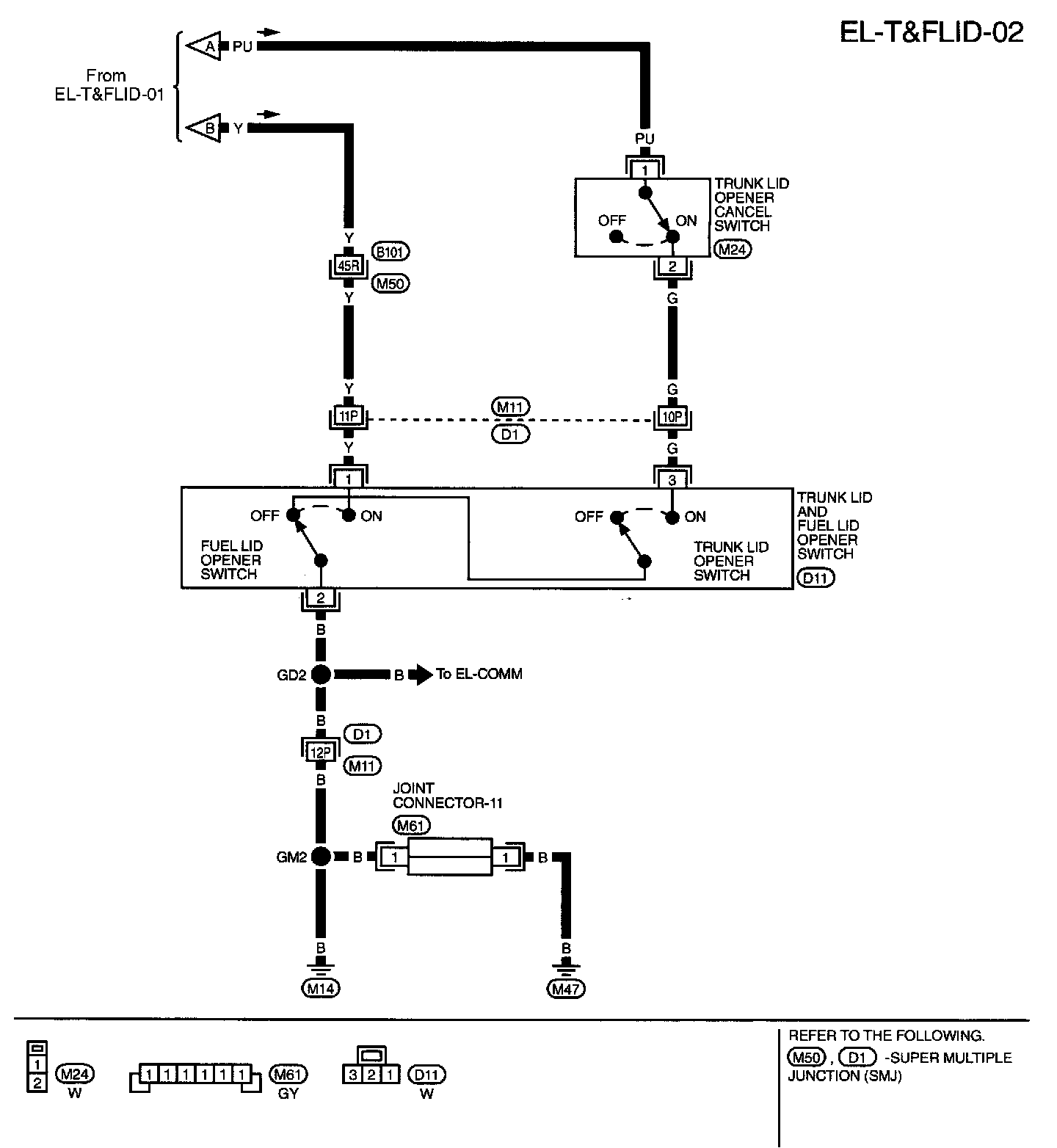

EL-T&FLID-02:
