Rear Power Window Switch Illumination
Rear Power Window Switch Illumination

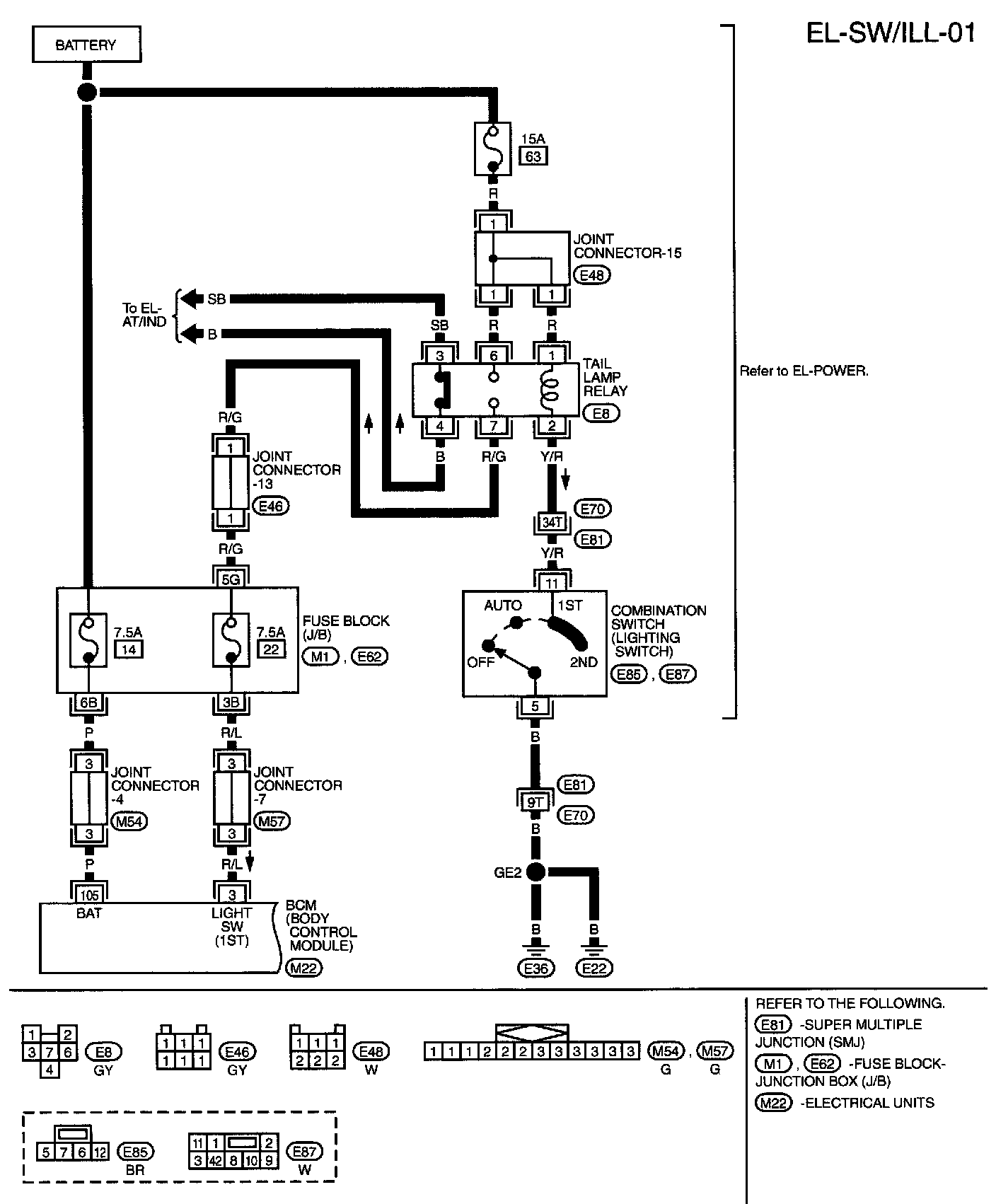

EL-SW/ILL-01:
EL-SW/ILL-02:
