Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2001
>>
Q45t V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Major Overhaul
Major Overhaul

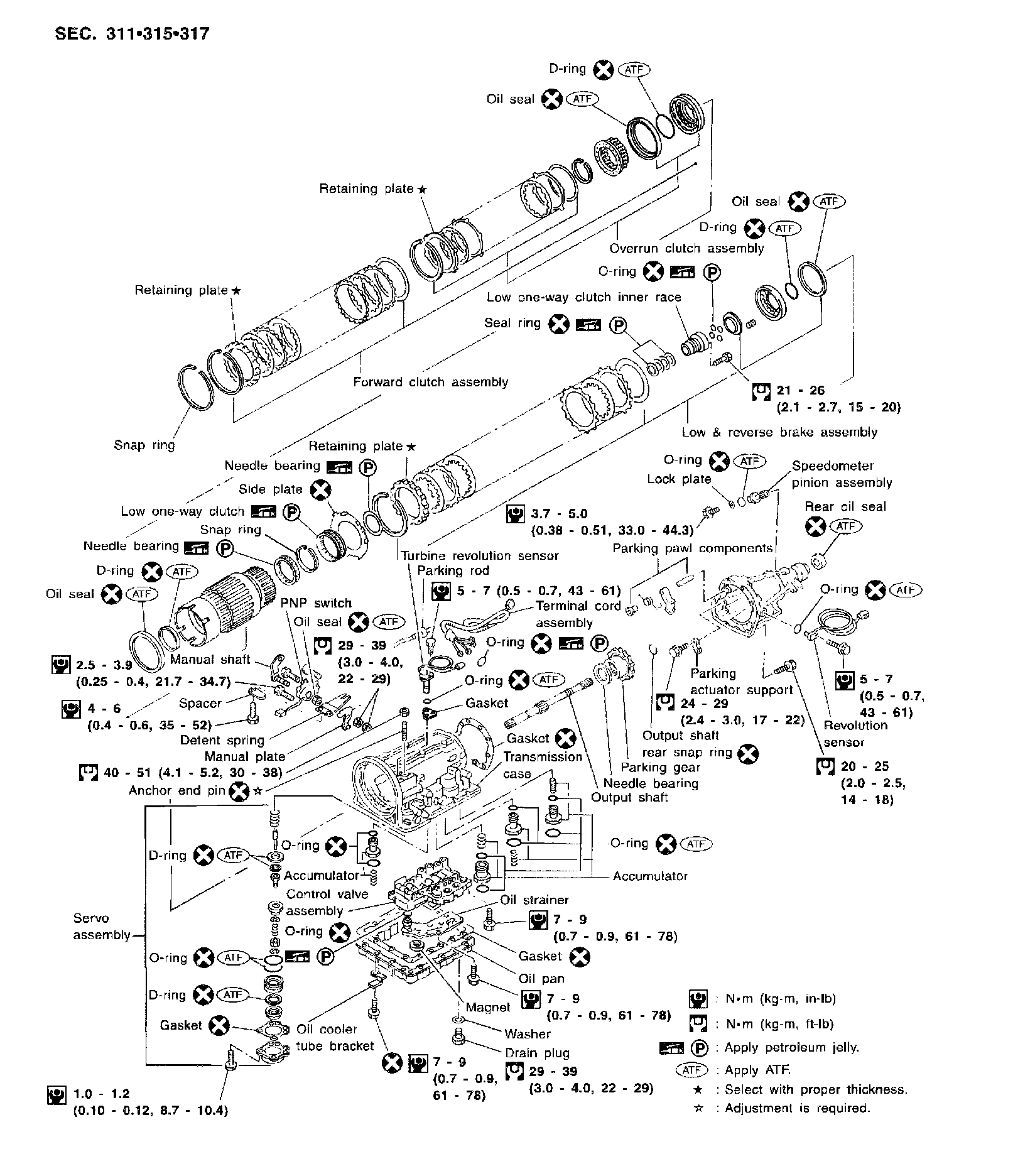

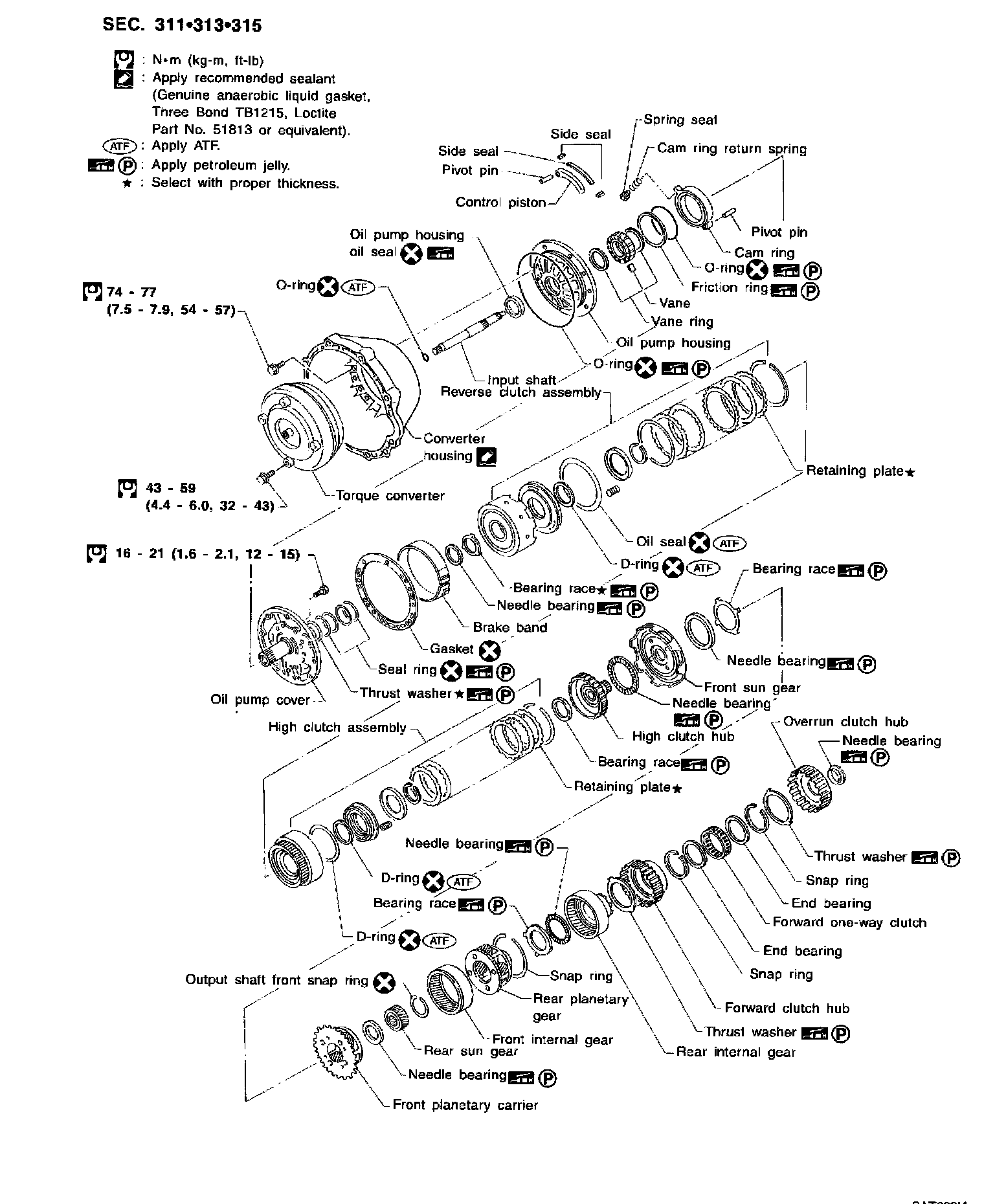

COMPONENTS
1 of 2
2 of 2
OIL CHANNEL
�� -:
LOCATIONS OF NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS
