Powertrain Management
>>
Computers and Control Systems
Computers and Control Systems

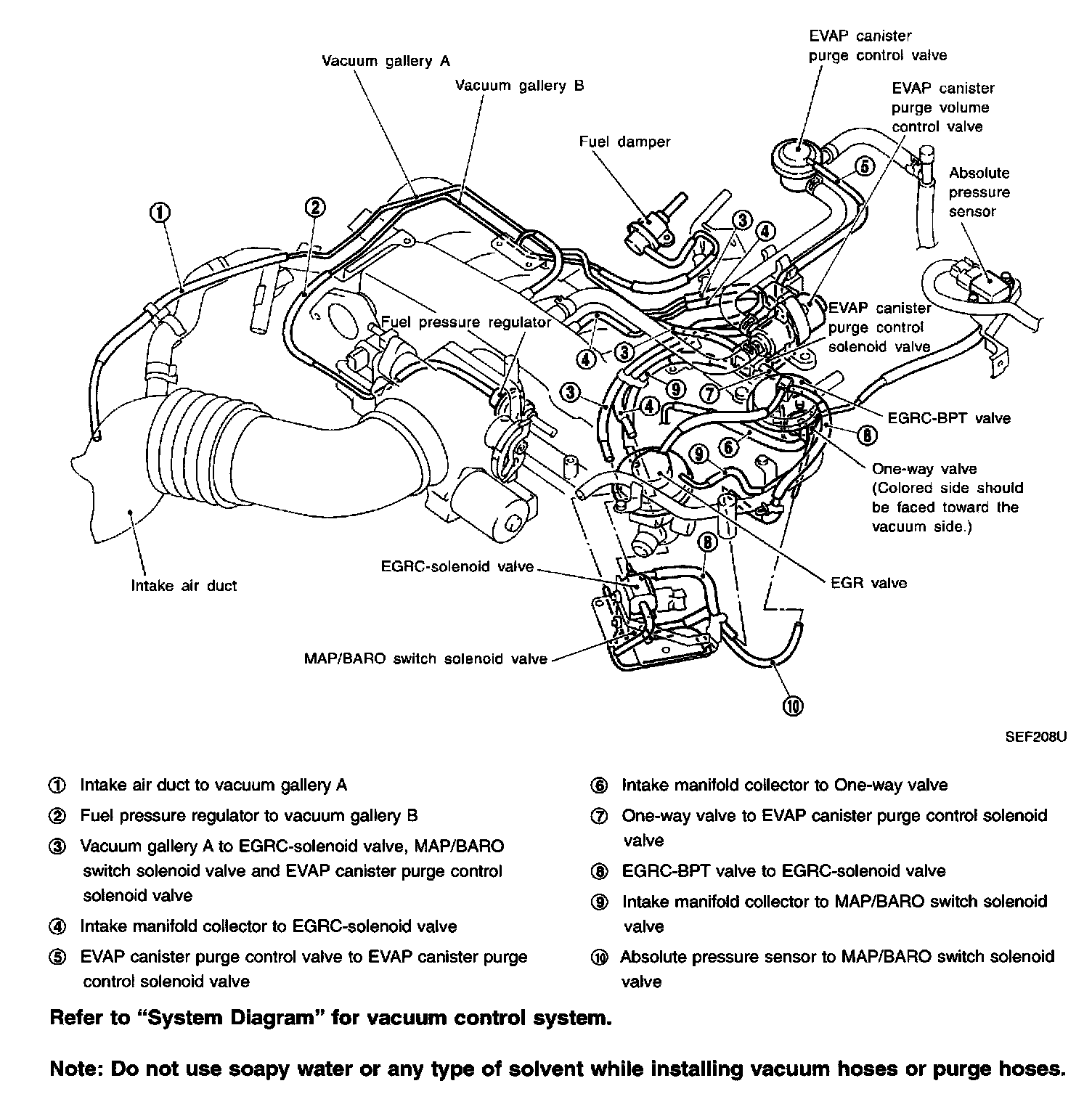

Vacuum Hose Drawing:
