Pinout Values and Diagnostic Parameters

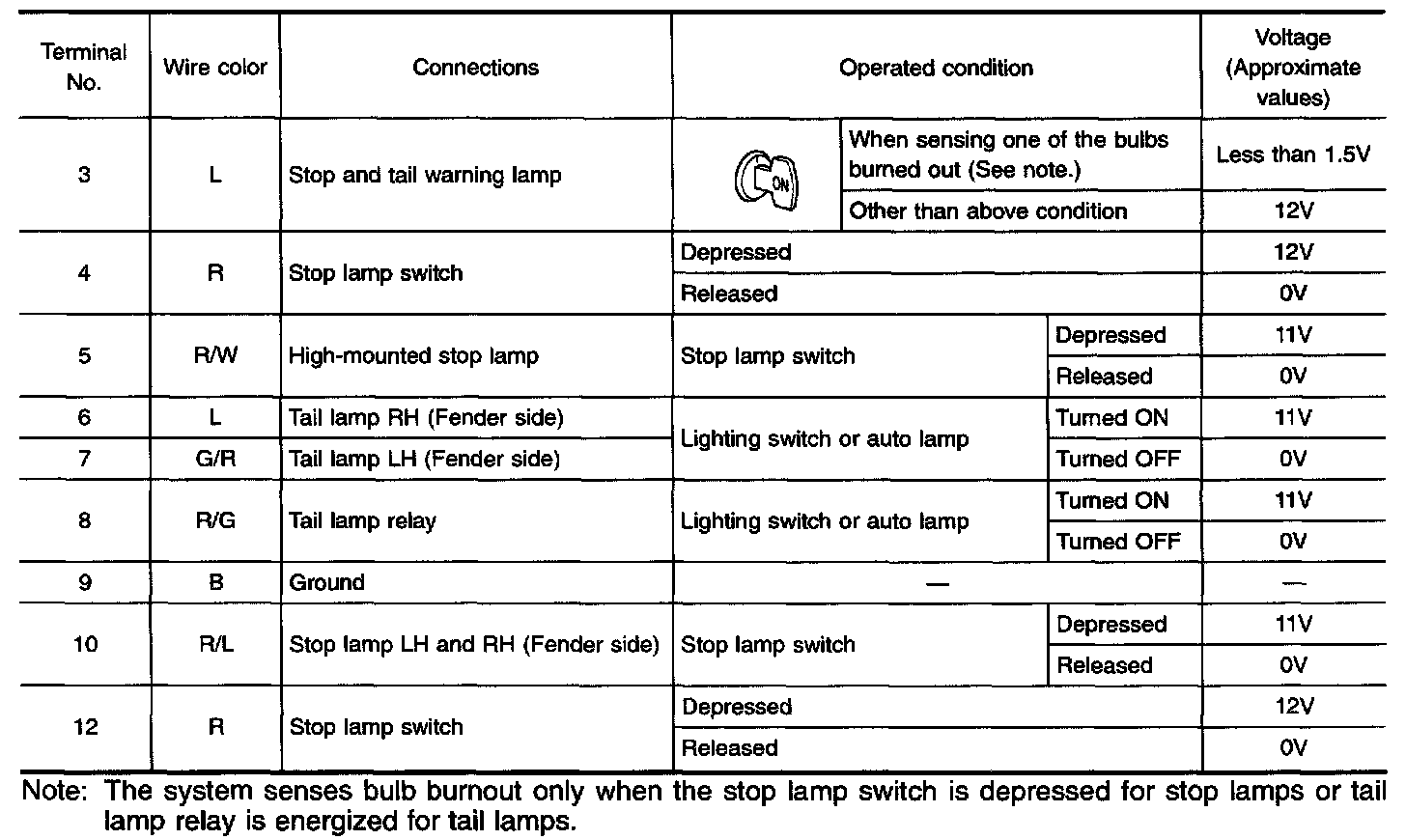

Stop And Tail Lamp Sensor Inspection Table (Terminal No. 3 - 12):
