Q45t V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Routing Schematics
Power Routing Schematics

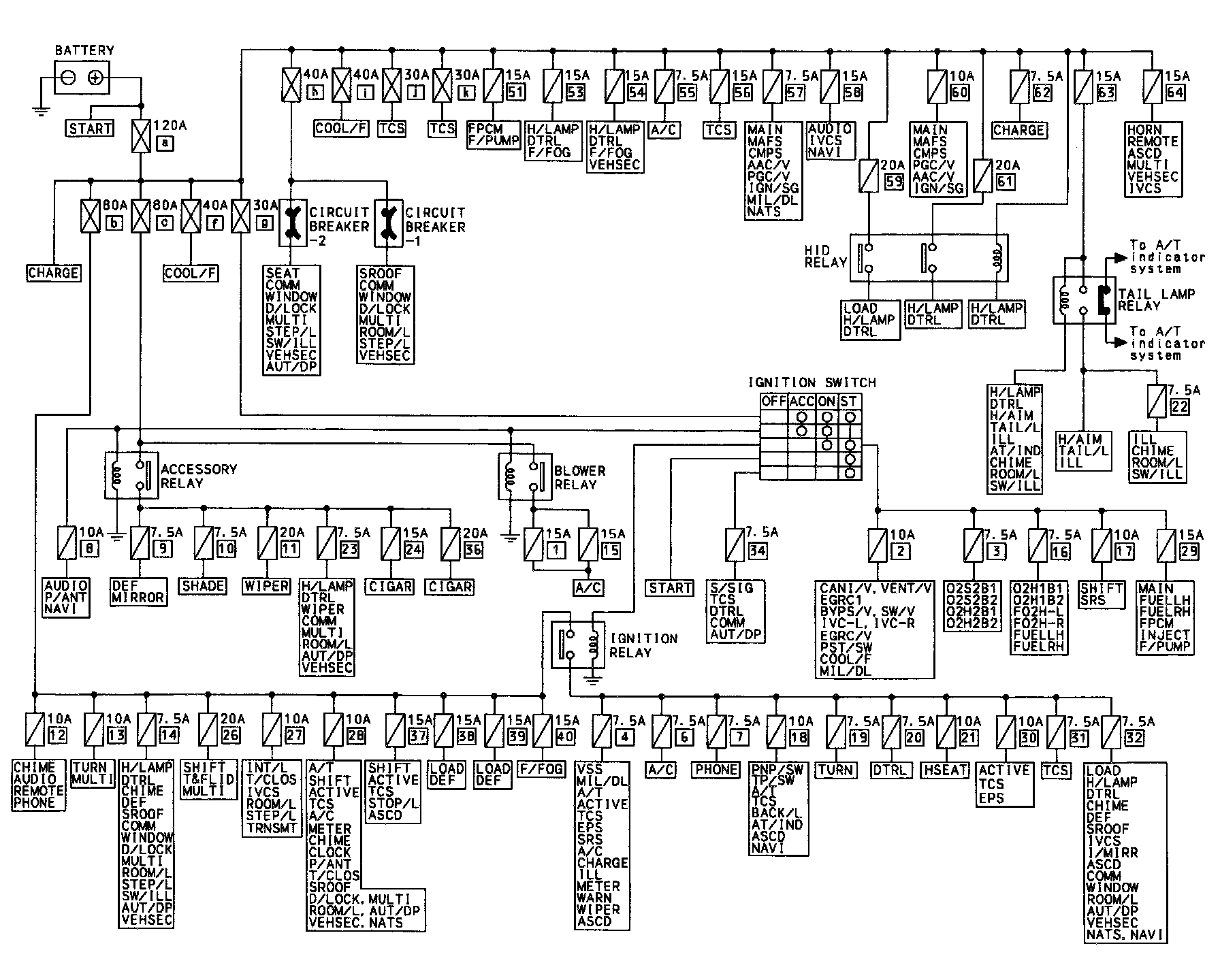

Schematic:
Fuse Block - Junction Block (J/B) Terminal Arrangement (B1, B2, E61, E62, E63, E64, M1):

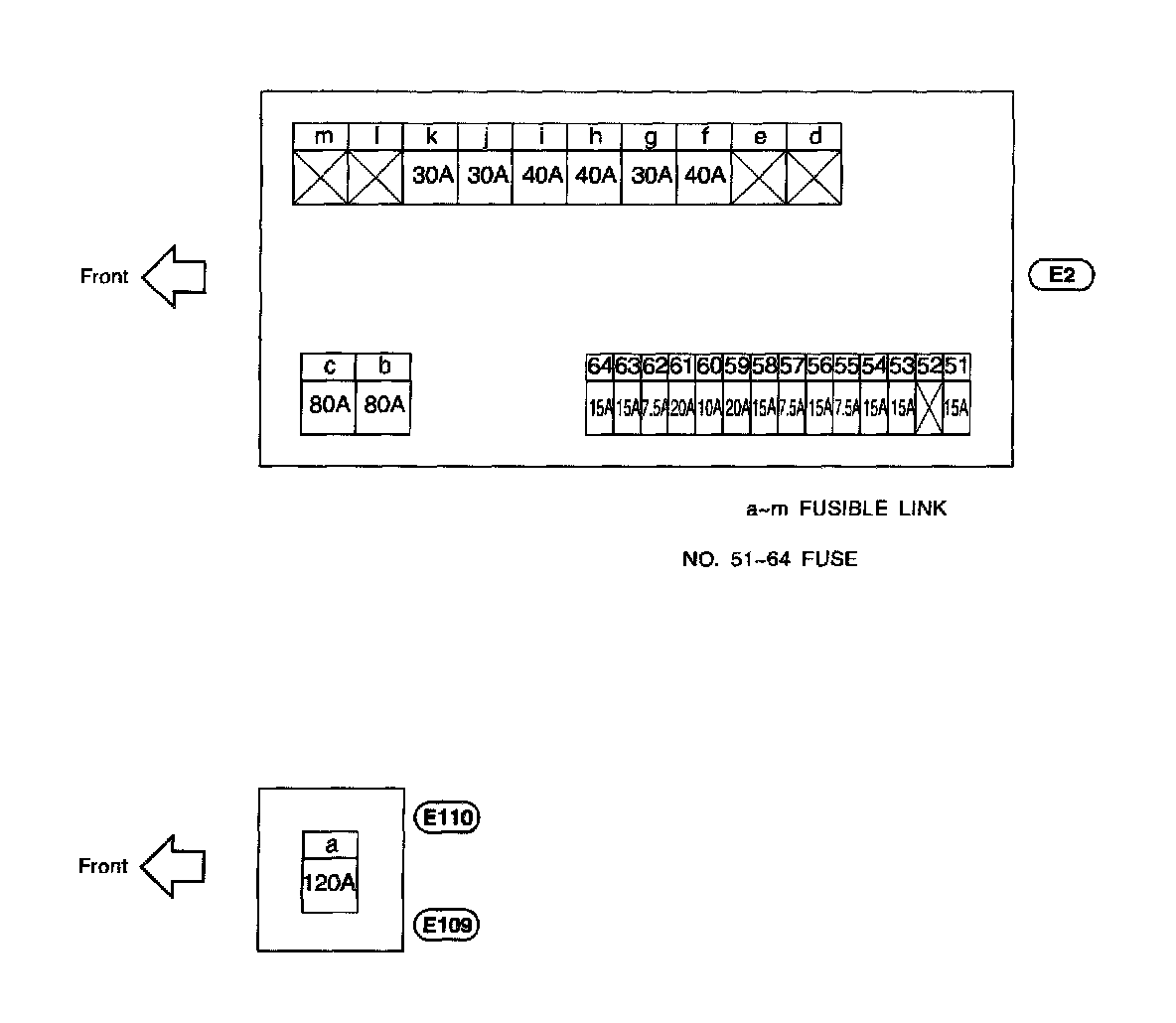

Fuse And Fusible Link Box Terminal Arrangement (E2, E109, E110):
