Pinout Values and Diagnostic Parameters

TCM Terminals and Reference Value
PREPARATION





- Measure voltage between each terminal and terminal (A or by following "TCM INSPECTION TABLE".





TCM HARNESS CONNECTOR TERMINAL LAYOUT

TCM INSPECTION TABLE (Data are reference values.)





Terminals 1 through 4

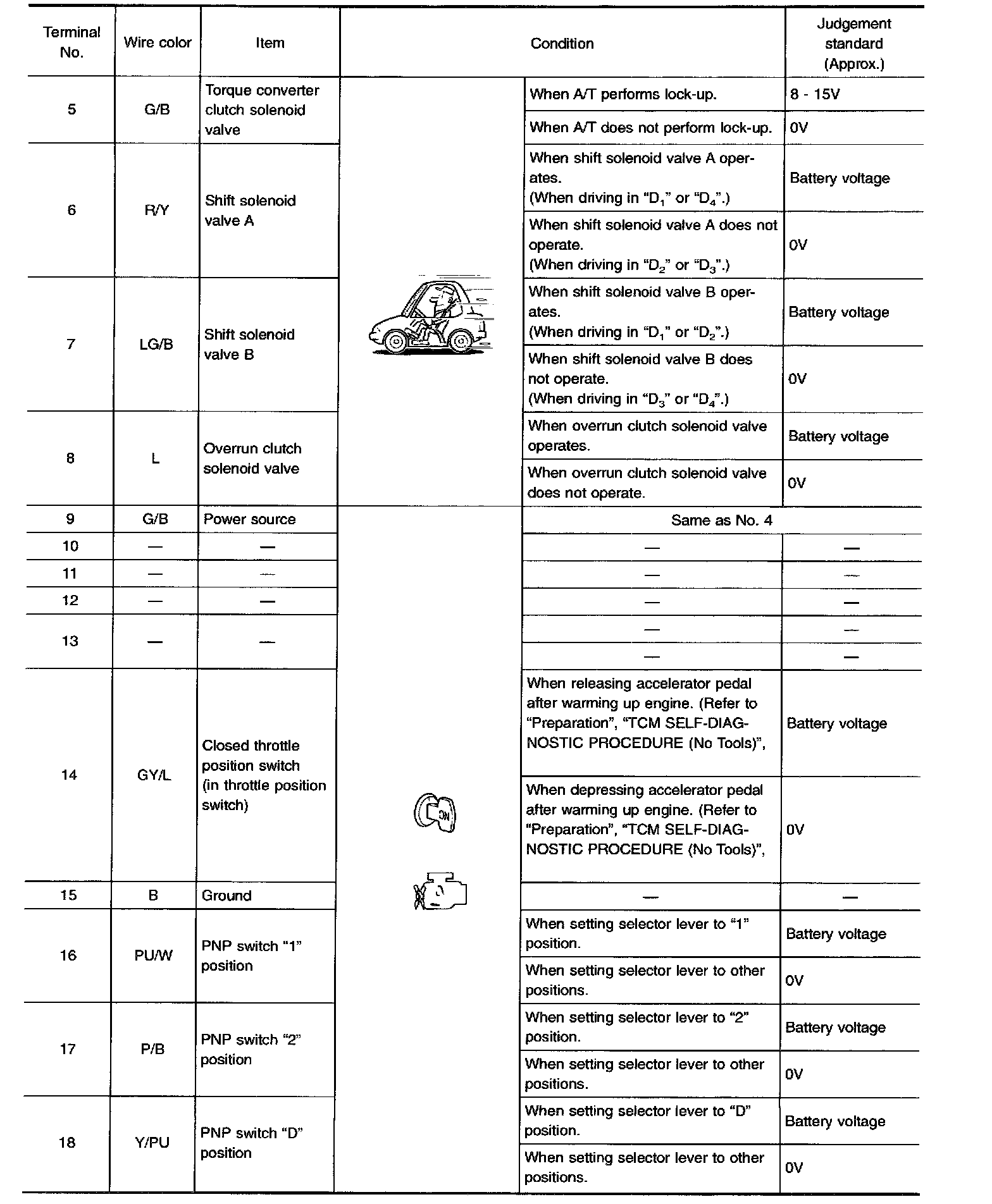

Terminals 5 through 18

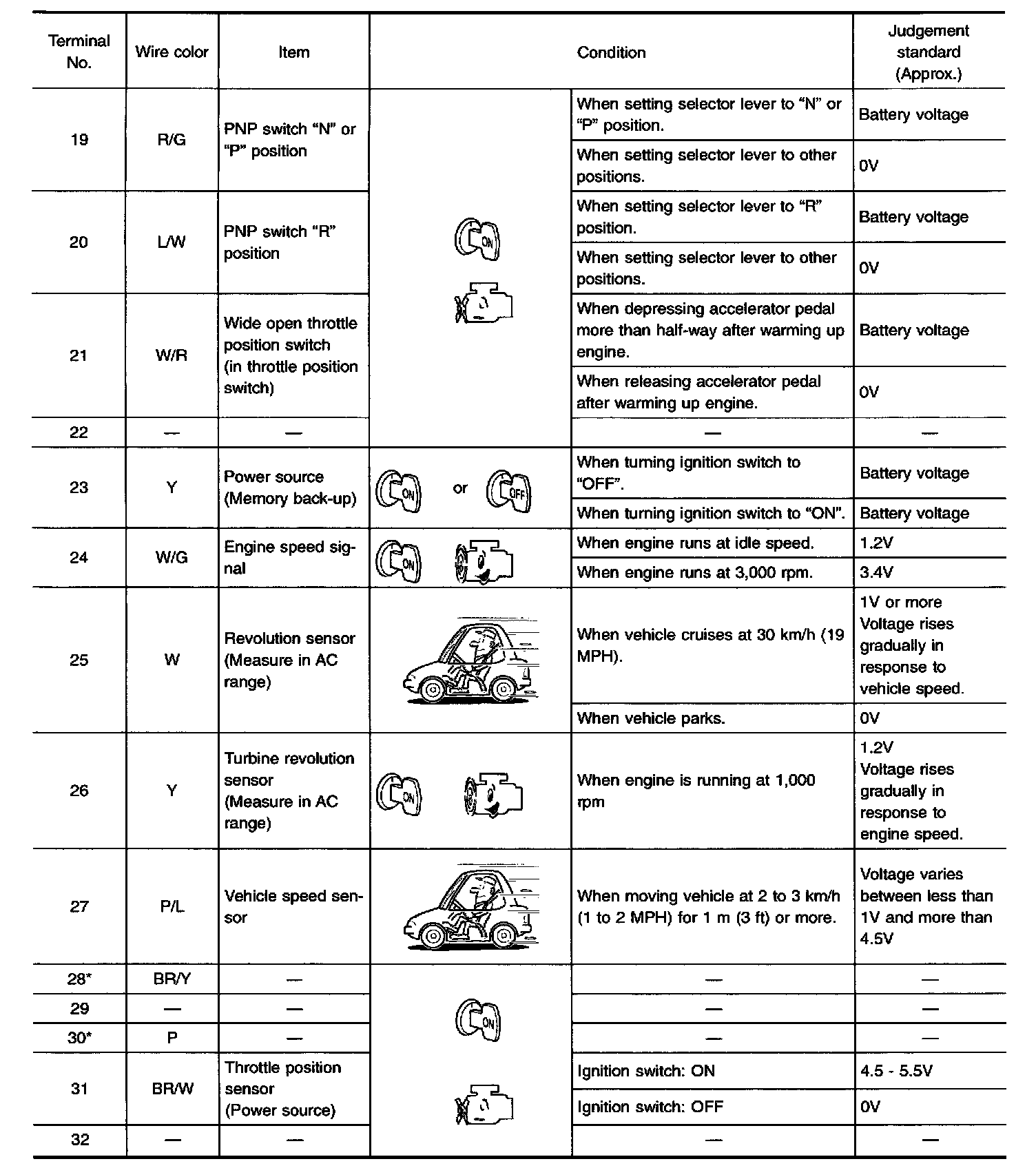

Terminals 19 through 32

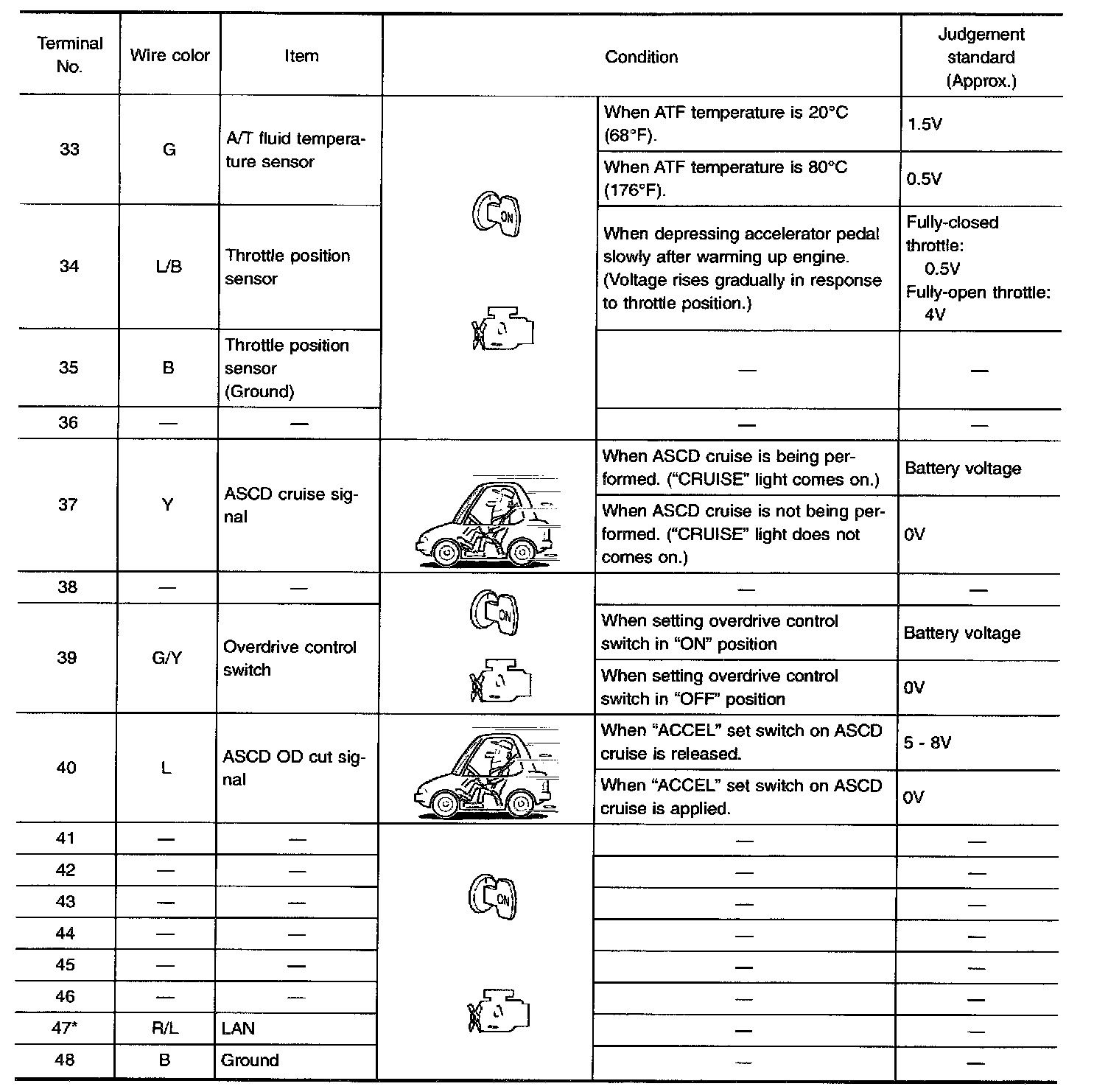

Terminals 33 through 48
