Starter Motor: Service and Repair

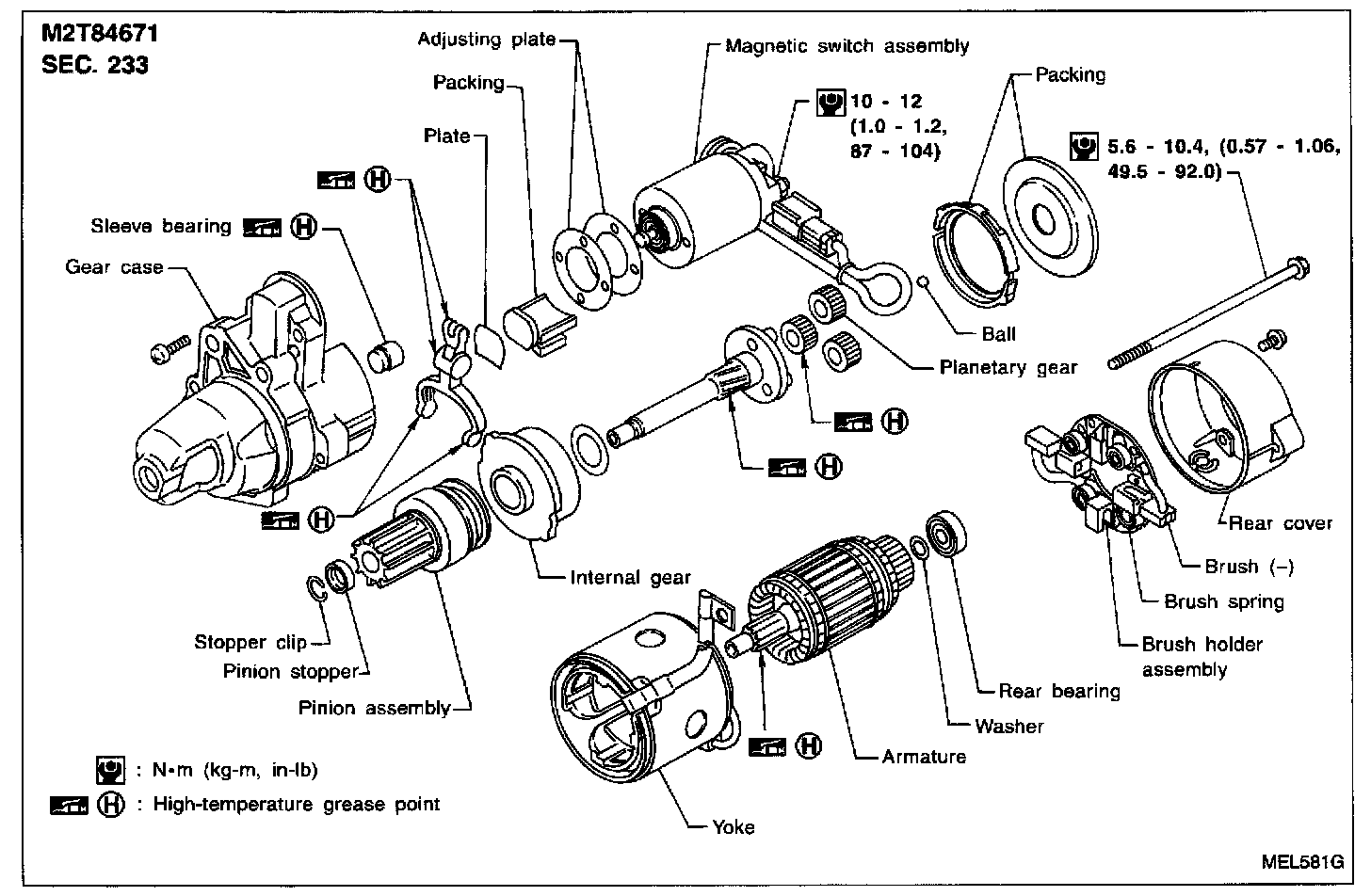

Construction

REMOVAL
1. Remove steering gear and linkage assembly.
2. Remove harness connector.
3. Remove starter by moving it in the direction of the arrow.

INSTALLATION
To install, reverse the removal procedure.
