Electrical Diagrams

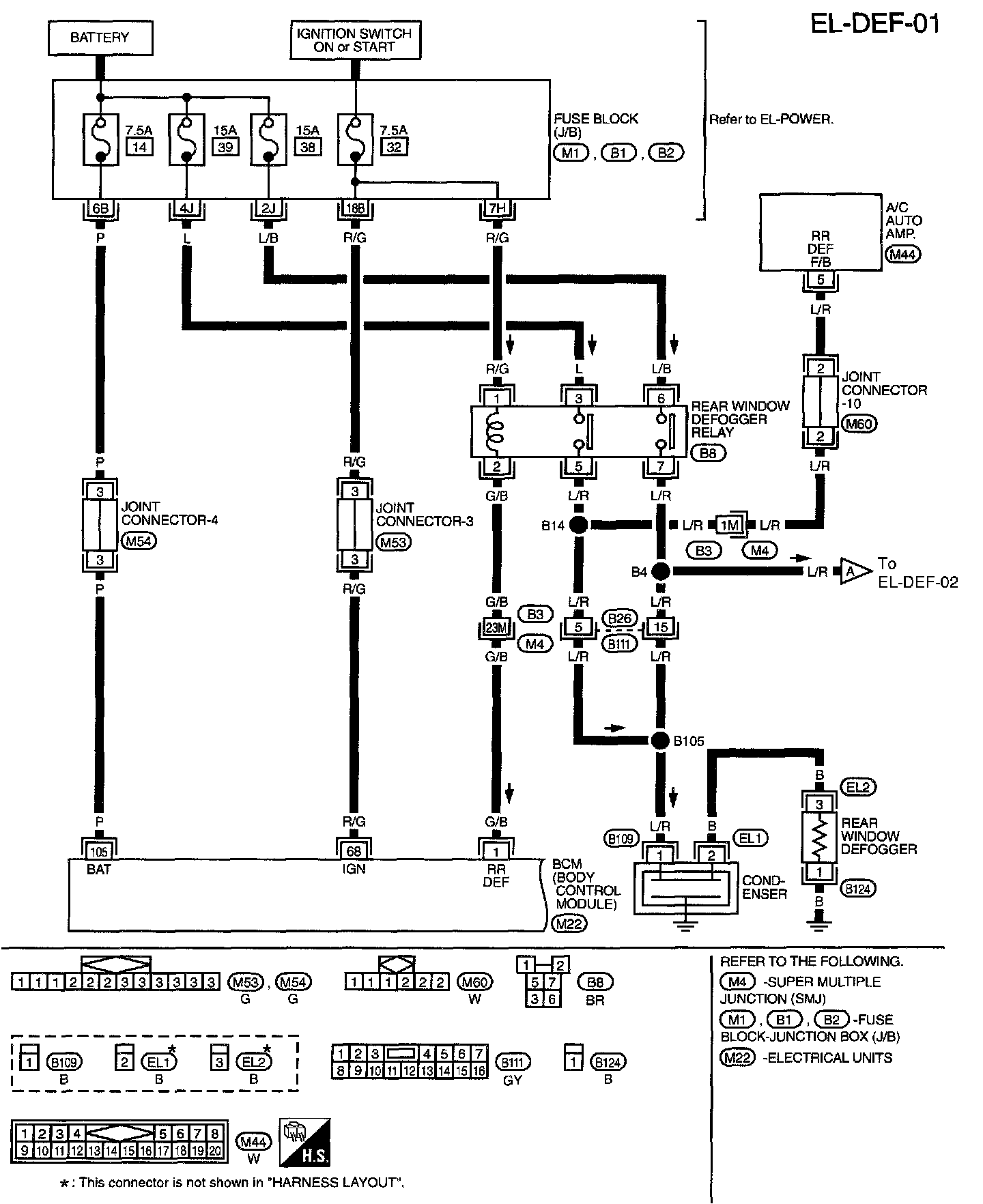

EL-DEF-01 (Without Navigation System):

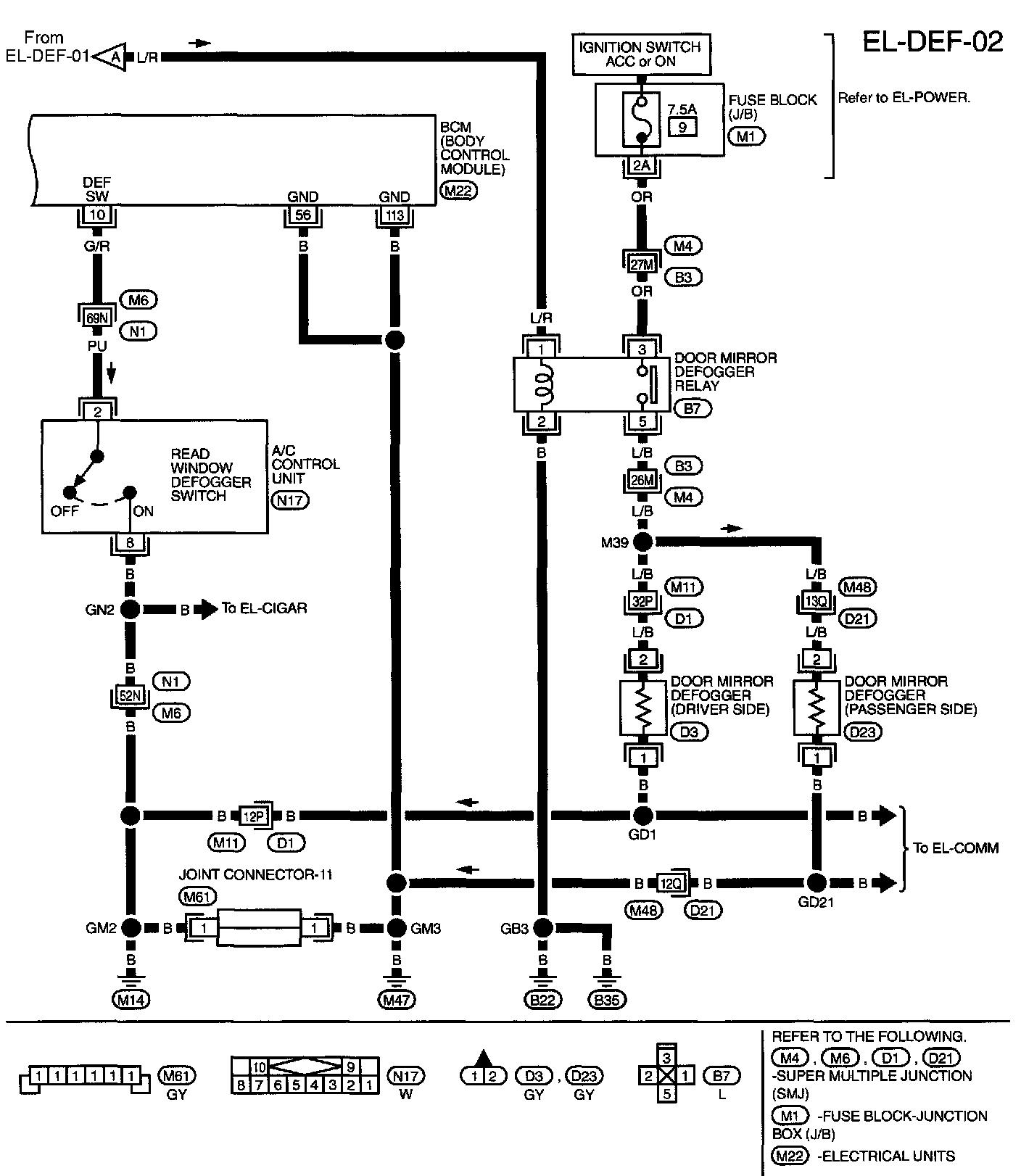

EL-DEF-02 (Without Navigation System):

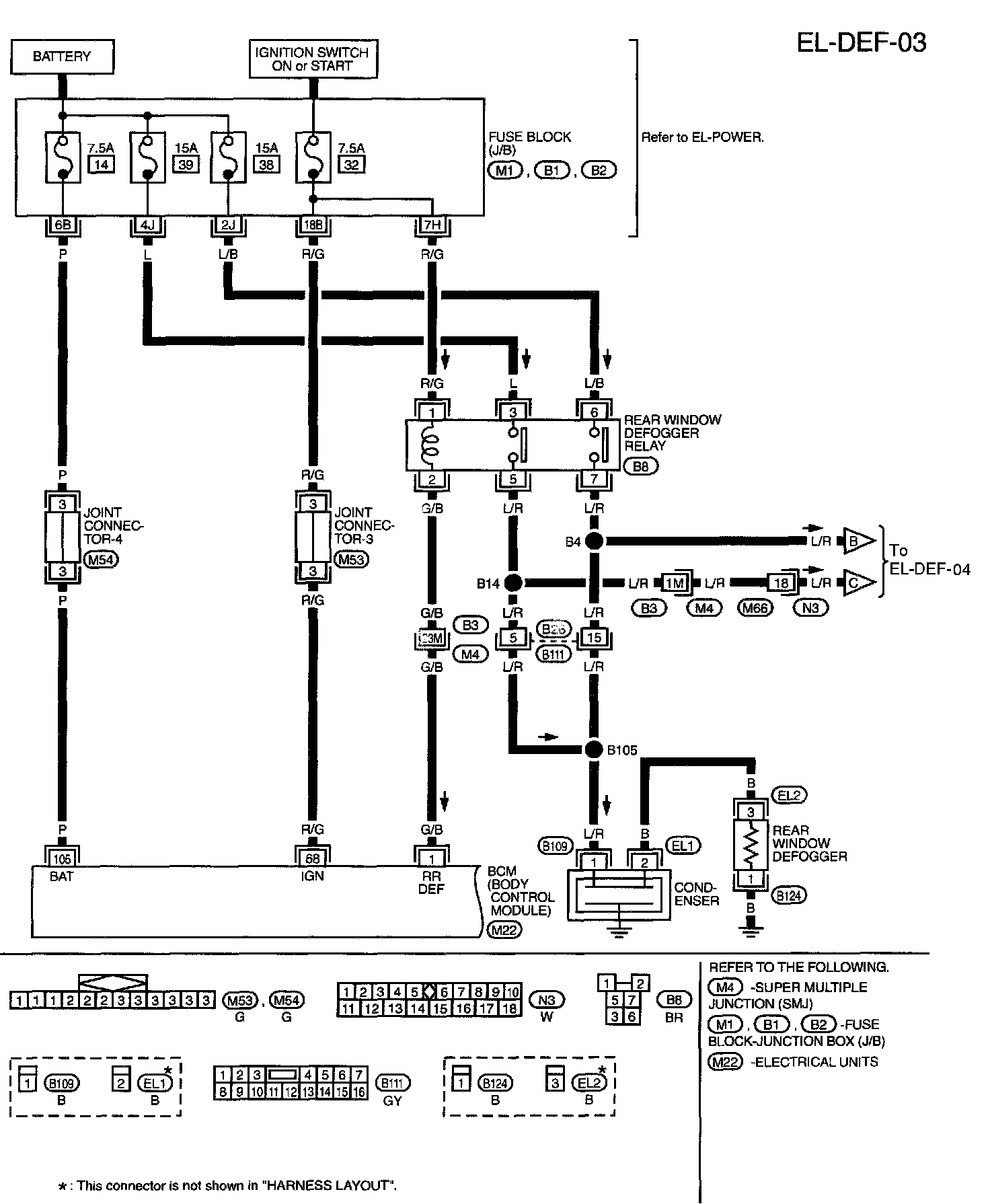

EL-DEF-03 (With Navigation System):
EL-DEF-04 (With Navigation System):
