Component Tests and General Diagnostics

Work Flow:

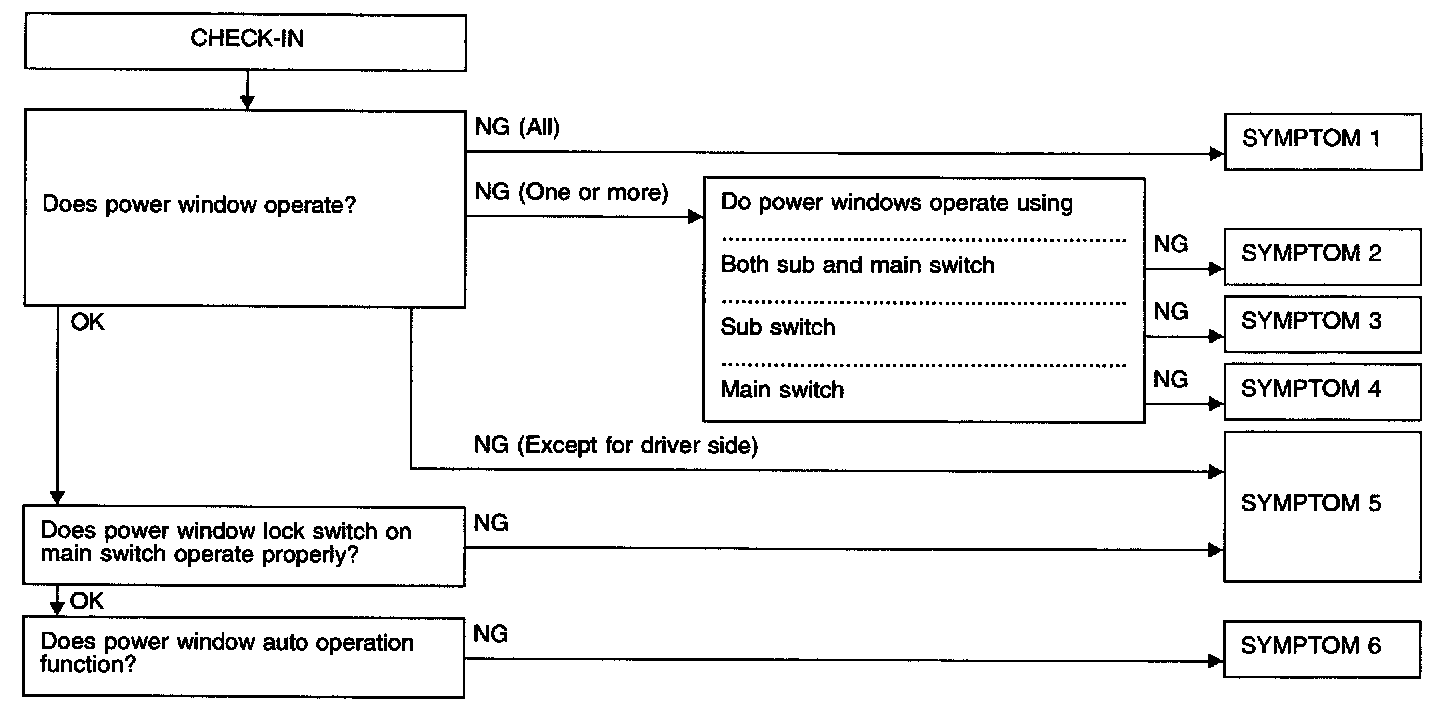

WORK FLOW

NOTE:
- When LCU connectors are disconnected for more than 1 minute such as during trouble diagnoses, the "disconnected" data will be memorized by the BCM. (While BCM memorizes the "disconnected" data, IVMS communication diagnosis of CONSULT-II will display "PAST NO RESPONSE".) Therefore, after reconnecting the LCU connectors, erase the memory.
- To erase the memory, perform the procedure below.
Erase the memory with CONSULT-II or turn the ignition switch to "OFF" position and remove 7.5 A fuse [No. [14] located in the fuse block (J/B)].




PRELIMINARY CHECK




SYMPTOM CHART

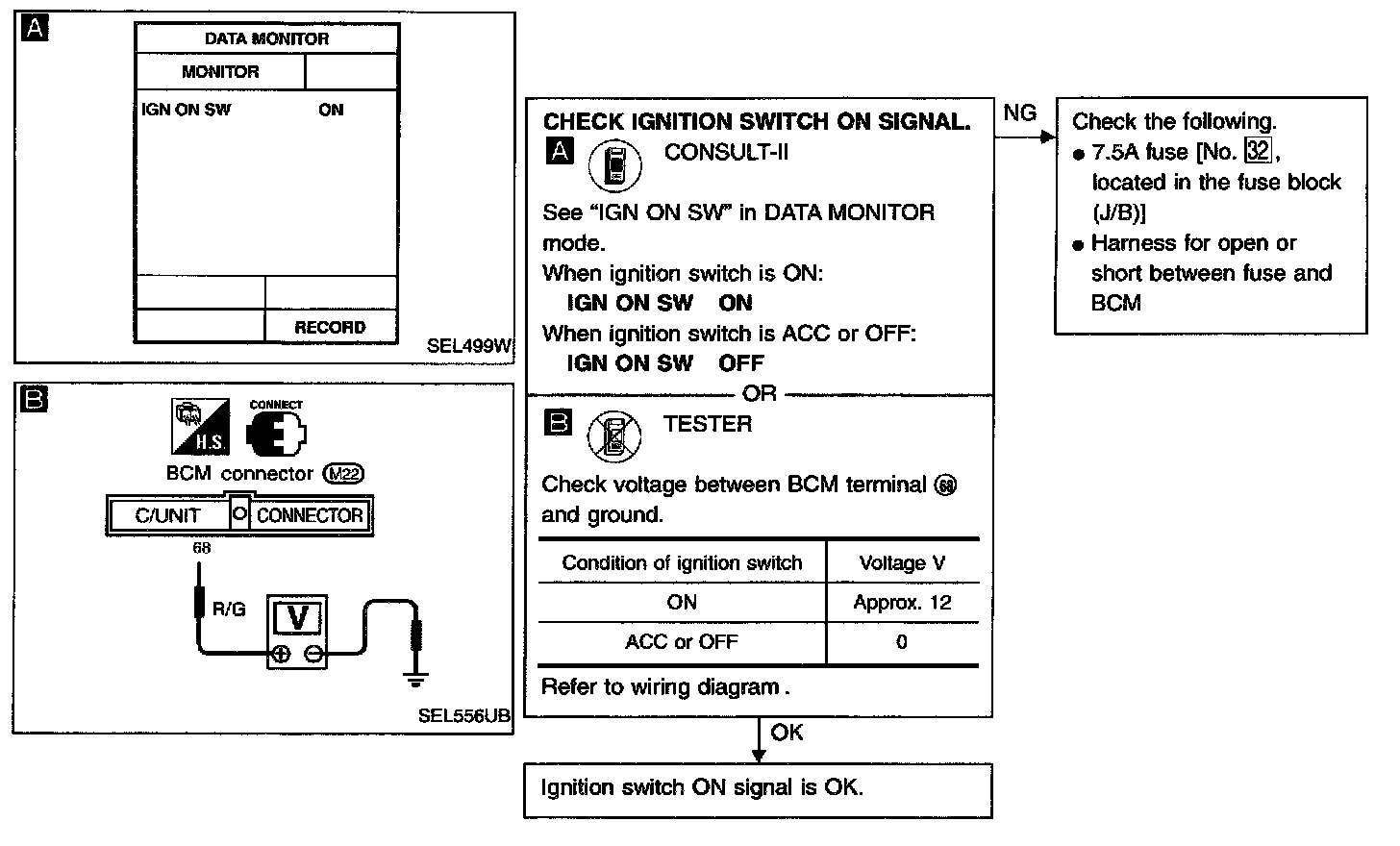

DIAGNOSTIC PROCEDURE 1 (Ignition switch ON signal check)




DIAGNOSTIC PROCEDURE 2 (Power window lock switch check)




DIAGNOSTIC PROCEDURE 3 [Power window main switch (Driver side, Passenger side, Rear LH, RH) check]




DIAGNOSTIC PROCEDURE 4 [Power window sub-switch (Passenger side, Rear LH, RH) check]




DIAGNOSTIC PROCEDURE 5 (Power window regulator check)

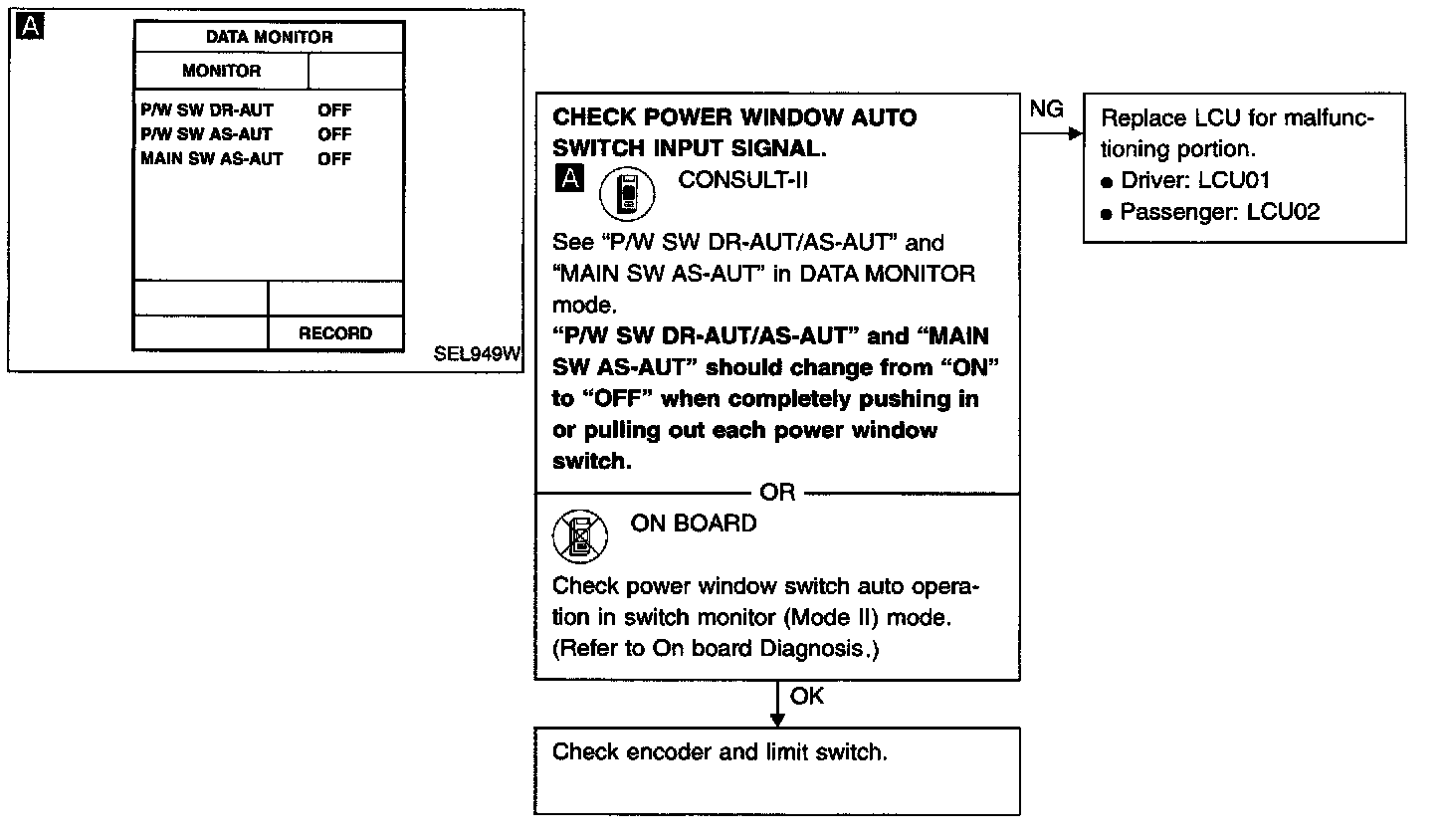

DIAGNOSTIC PROCEDURE 6 (Power window automatic switch check)




DIAGNOSTIC PROCEDURE 7 (Front door switch check)




DIAGNOSTIC PROCEDURE 8 (Encoder and limit switch check)
