CONSULT Customizing Procedure

1. Turn ignition switch "OFF".
2. Connect "CONSULT-II" to the data link connector.

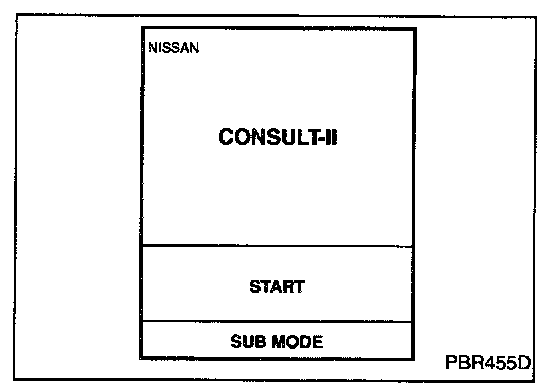

3. Turn ignition switch "ON".
4. Touch "START".




5. Touch "IVMS".




6. Touch "WIPER".

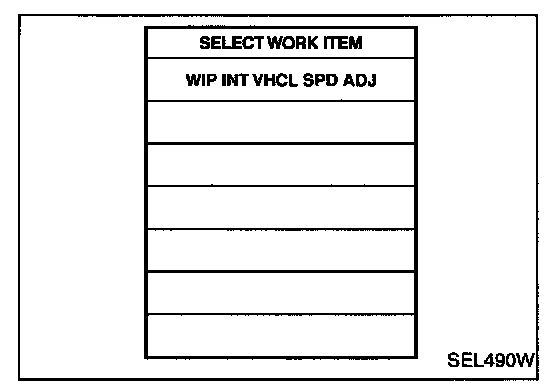

7. Touch "WORK SUPPORT".

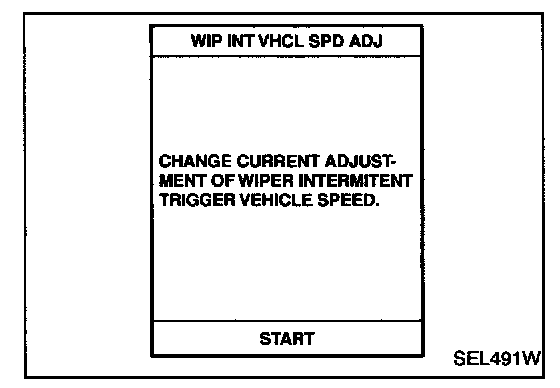

8. Touch "WIP INT VHCL SPD ADJ".




9. Touch "START".
- Wiper intermittent speed control by vehicle speed can be canceled or resumed.




10. Touch "CHANGE SETT" for changing "CURRENT SETTING". For no changing "CURRENT SETTING", touch "END".




11. Touch "END" after customizing is completed.
