CONSULT-II Basic Operation (IVMS)

1. Turn ignition switch "OFF".
2. Connect "CONSULT-II" to the data link connector.




3. Turn ignition switch "ON".
4. Touch "START".

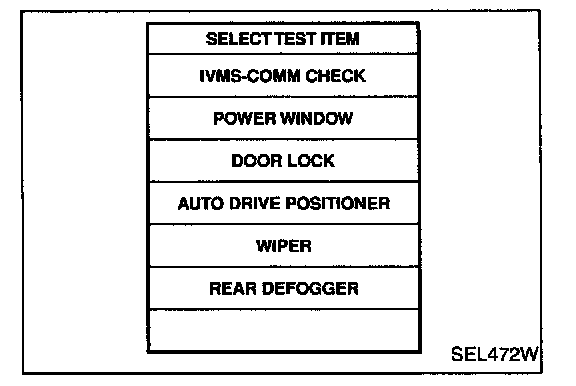

5. Touch "IVMS".




6. Touch "WIPER".

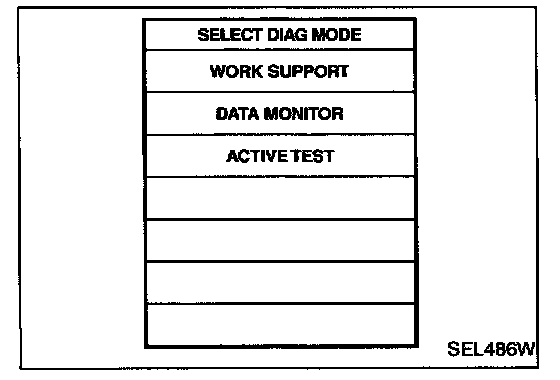

- WORK SUPPORT, DATA MONITOR and ACTIVE TEST are available for the wiper and washer.
