Initial Inspection and Diagnostic Overview

Preliminary Check

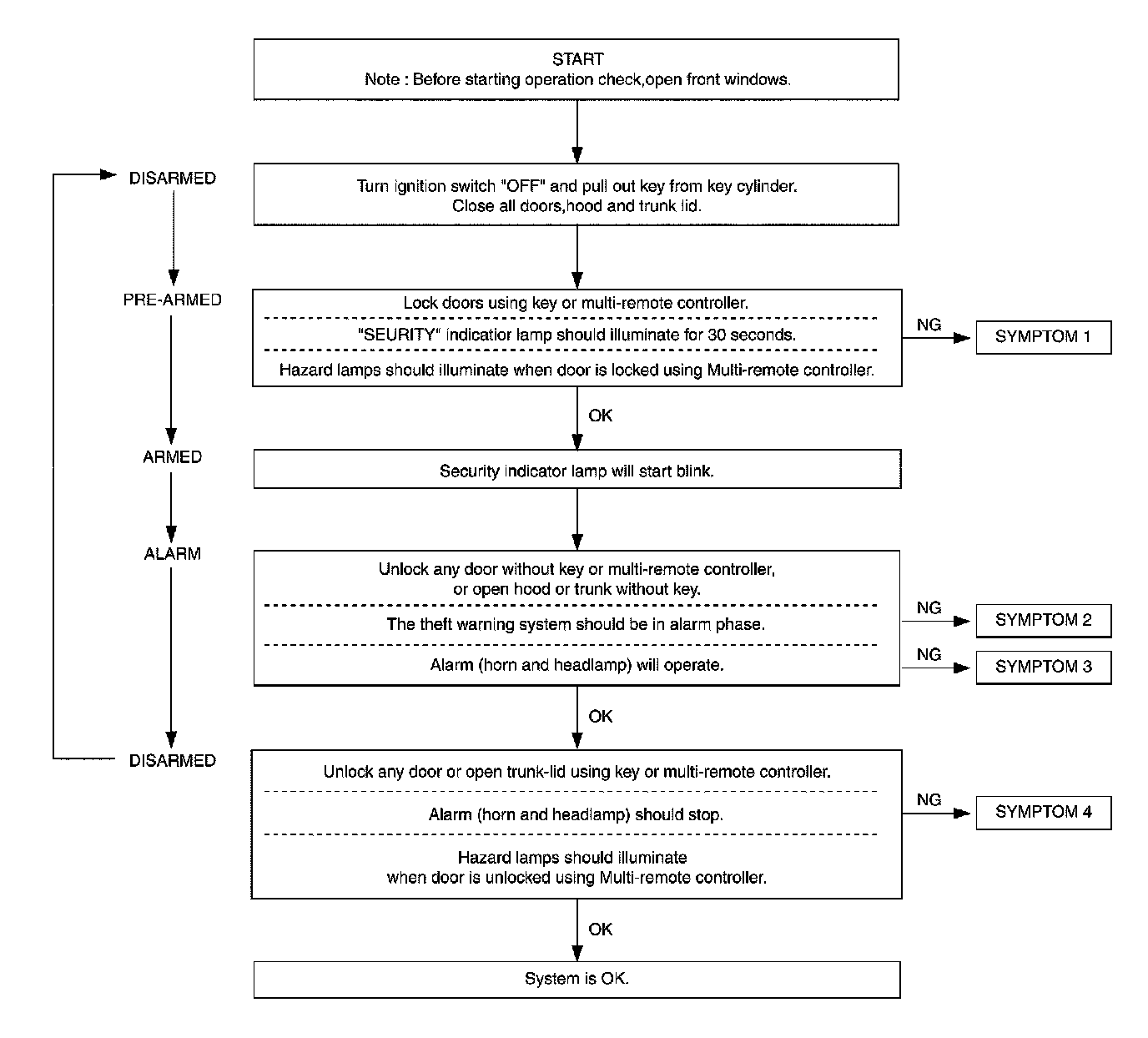

The system operation is canceled by turning ignition switch to "ACC" at any step between START and ARMED in the above flow chart.

NOTE: Before performing PRELIMINARY CHECK, disconnect IVCS unit connectors not to operate INFINITI communicator.

After performing preliminary check, go to symptom chart.
Symptom Chart
