Reverse Interlock Door Mirror System

System Description
- When switching the door mirror remote control switch position (LH/RH), the system moves driver or passenger door mirror face downward, in relation to the A/T selector lever being shifted to Reverse Position.
- The mirror position with the reverse gear engaged can be adjusted and the adjusted mirror position can be stored in memory (2 positions).
- With reverse gear-linked operation signal, the door mirror control unit-LH/RH (LCU) installed on the door panel drives and controls the motors (UP/DOWN, LH/RH).
- Using the self-diagnostic function and CONSULT-II, system diagnosis can be performed.

OUTLINE OF OPERATION

Operation conditions
If the following conditions are satisfied, starts operating after approximately 0.5 seconds.
- Ignition switch is in ON position.
- Set the door mirror remote control switch to the neutral position �right position, or left position.
- A/T selector lever is in R position.

NOTE:
- If the conditions for reverse gear-linked operation are satisfied during manual operation, the manual operation is interrupted and switched to the reverse gear-linked operation.

Operation angle

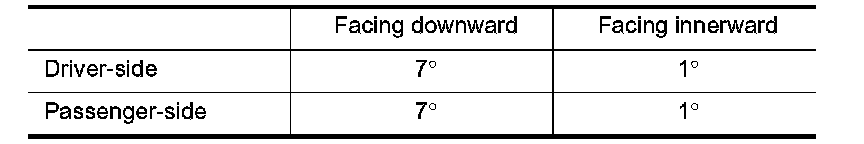

Fixed Operation Angle:

Fixed operation angle

End of operation
If the following conditions are satisfied, the reverse gear-linked operation is stopped.
- When the set angle is reached.
- When no operation signal or no operation end signal can be received for approximately 2 seconds or more after BCM actually outputs the reverse gear-linked operation signal.
- After receiving the operation signal from the door mirror control unit, when BCM has stayed in the status for 60 seconds.

Return operation
If one of the following conditions is satisfied, the mirror face returns upward.
- When the ignition switch is turned OFF.
- When the A/T selector lever is shifted to any position except R position.
- When the door mirror remote control switch is in the neutral position.

NOTE:
- After the above operation, if no operation conditions previously mentioned are satisfied, shifting the A/T selector lever to R position will not move the mirror face downward.

End of return operation
- Mirror face returns to the original position.
- When no operation signal or no operation end signal can be received for approximately 2 seconds or more after BCM actually outputs the reverse gear-linked operation signal.
- After receiving the operation signal from the door mirror control unit, when BCM has stayed in the status for 60 seconds.

MIRROR POSITION MEMORY FUNCTIONS
Equipped with a function which allows memorizing the desired mirror face positions (2 positions each for LH/ RH door mirror).

Memory operation conditions
The seat and steering wheel positions are in accordance with memory 1 or memory 2 in the automatic drive position control. Refer to "AUTOMATIC DRIVE POSITIONER".

Memory operation procedure
1. Turn ignition switch ON.
2. Shift the A/T selector lever to R position.
3. Switch the door mirror remote control switch to right or left, and set the mirror face to the desired angle.
4. Press the setting button, and within 5 seconds, press the memory switch which stores the current seat and steering wheel positions for 0.5 seconds or more.
5. If the memory switch with certain positions stored is used, it turns off for 0.5 seconds after the operation, and after that it illuminates continuously (for approx. 5 seconds).
6. If a memory switch with no positions stored is used, it illuminates (for approx. 5 seconds) after the memory switch operation.

POWER SUPPLY AND GROUND

Power is supplied at all times
- through 10A fuse[No.8, located in the fuse block (J/B)]
- to driver side door mirror control unit terminal No.8 and passenger side door mirror remote control unit terminal No.8.
- through 10A fuse[No.3, located in the fuse block (J/B)]
- to BCM terminal No.105.

Power is supplied
- through 10A fuse[No.9, located in the fuse block (J/B)]
- to TCM terminal No.41.

BCM is connected to LCU03 and LCU04 as DATA LINE A-2 and DATA LINE A-3. When door mirror remote control switch is turned left or right, ground is supplied
- to BCM terminal No.24 or No.21
- through door mirror remote control switch terminal No.6 or No.5.

When selector lever is R position, ground is supplied
- to TCM terminal No.41.
- from back-up lamp relay terminal No.1.
- to BCM terminal No.141.
- through back-up lamp relay terminal No.3.

Then signal input to driver side door mirror control unit and passenger side door mirror control unit terminal No.7 from BCM terminal No.61 and No.67 by DATA LINE A-2 and DATA LINE A-3.

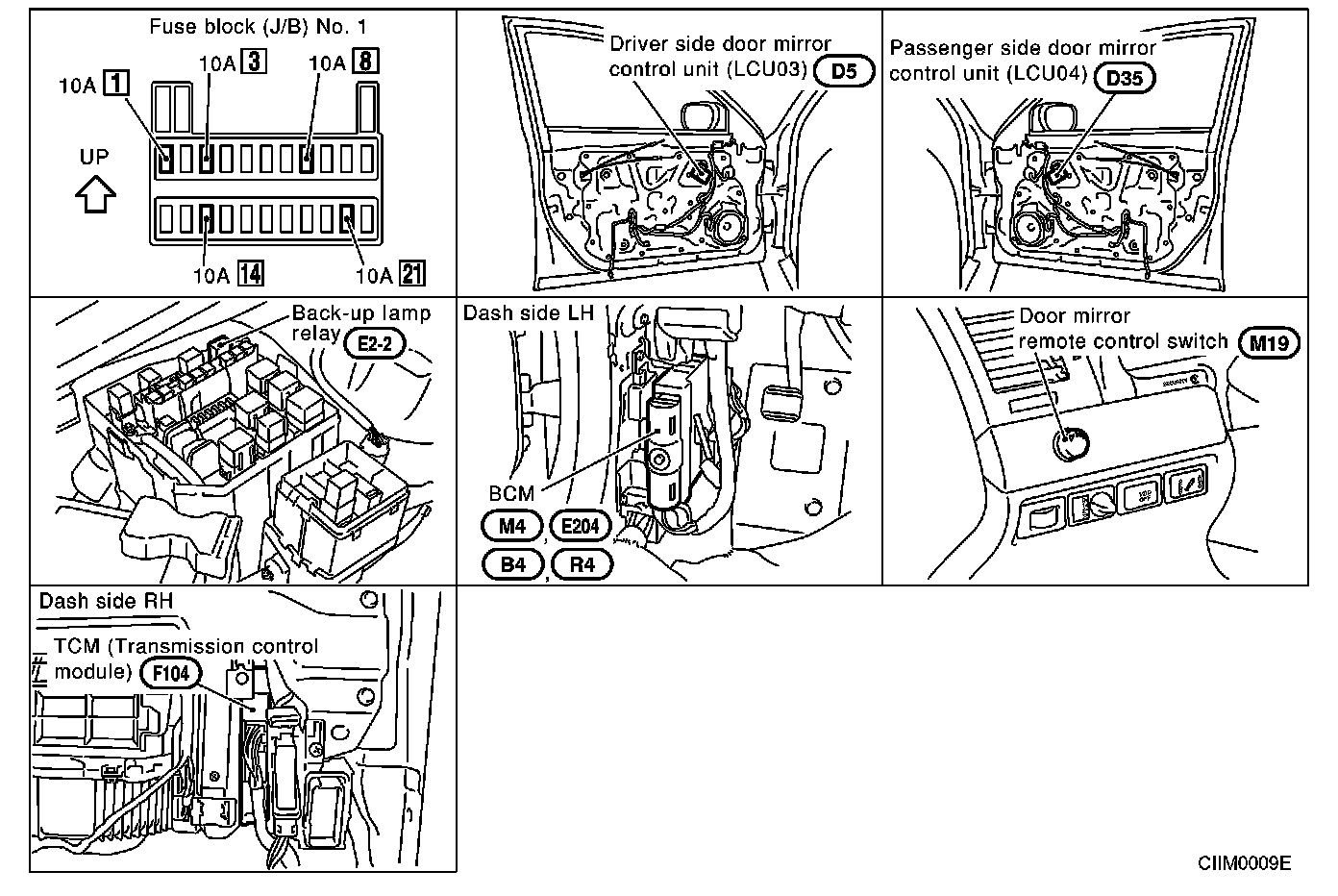

Component Parts And Harness Connector Location:

Component Parts and Harness Connector Location
