Radio, Stereo, and Compact Disc: Service and Repair

Removal and installation of Audio unit
1. Remove console box assembly "CONSOLE BOX ASSEMBLY" .
2. Remove lower cluster lid C, "CLUSTER LID C" .
3. Remove screws (4) and remove Audio unit.

Removal and Installation of AV and NAVI Control Unit
1. Refer to "Precautions for AV and NAVI Control Unit Replacement". and Take a note of necessary items.
2. Remove the trunk compartment trim. "TRUNK ROOM TRIM & TRUNK LID FINISHER" .

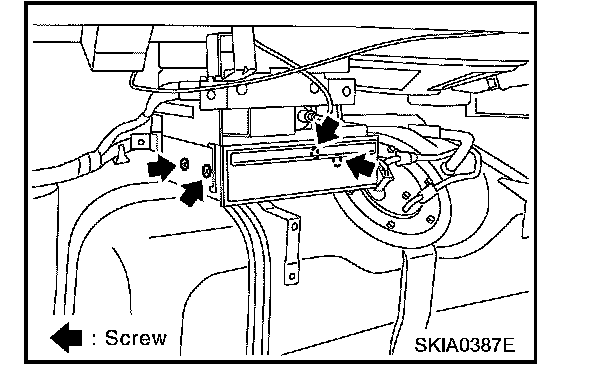

3. Remove the screws and remove the AV and NAVI control unit.
