Pinout Values and Diagnostic Parameters

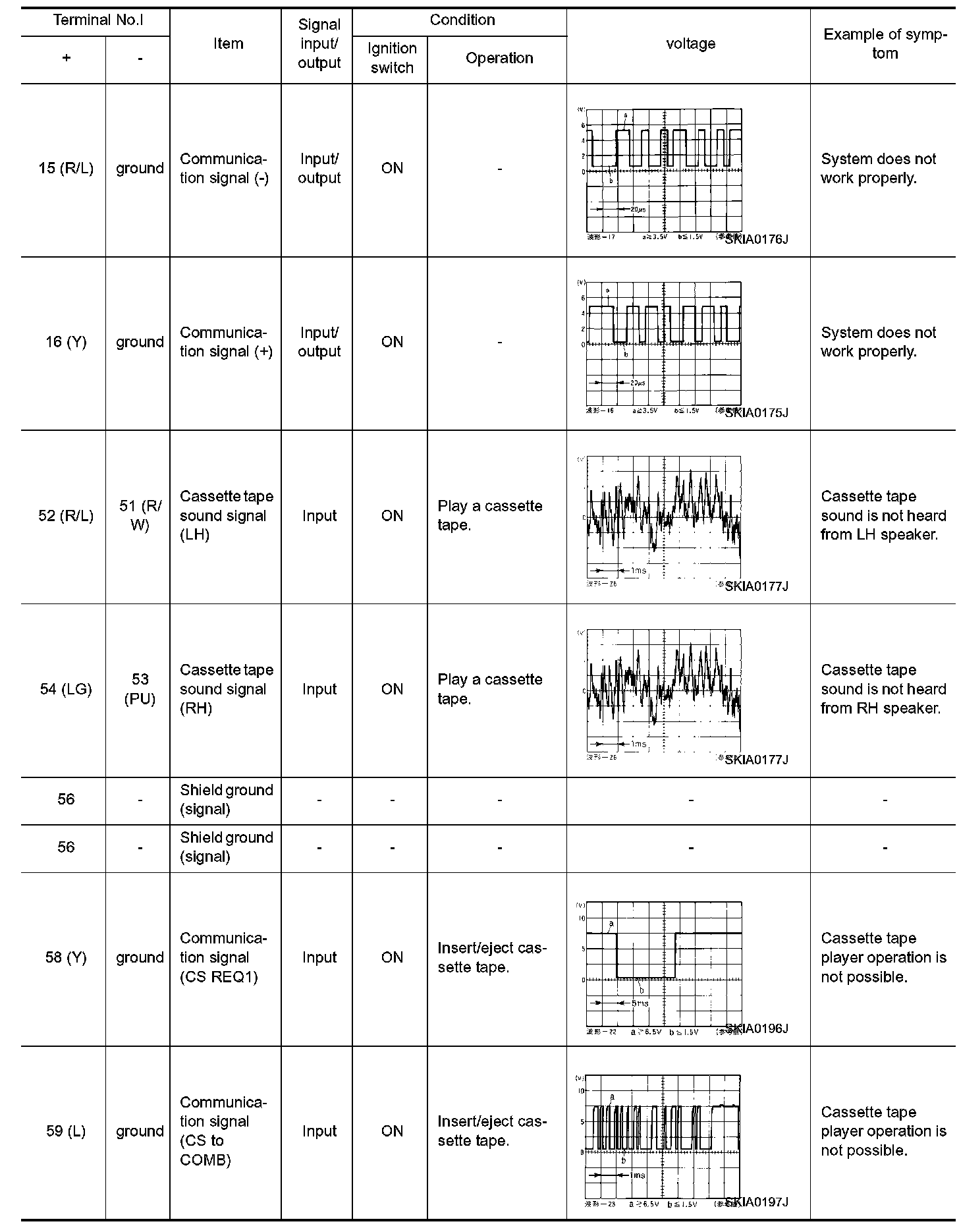

Terminals And Reference Value For Audio Unit Part 1:



Terminals And Reference Value For Audio Unit Part 2:



Terminals And Reference Value For Audio Unit Part 3:
