Component Tests and General Diagnostics

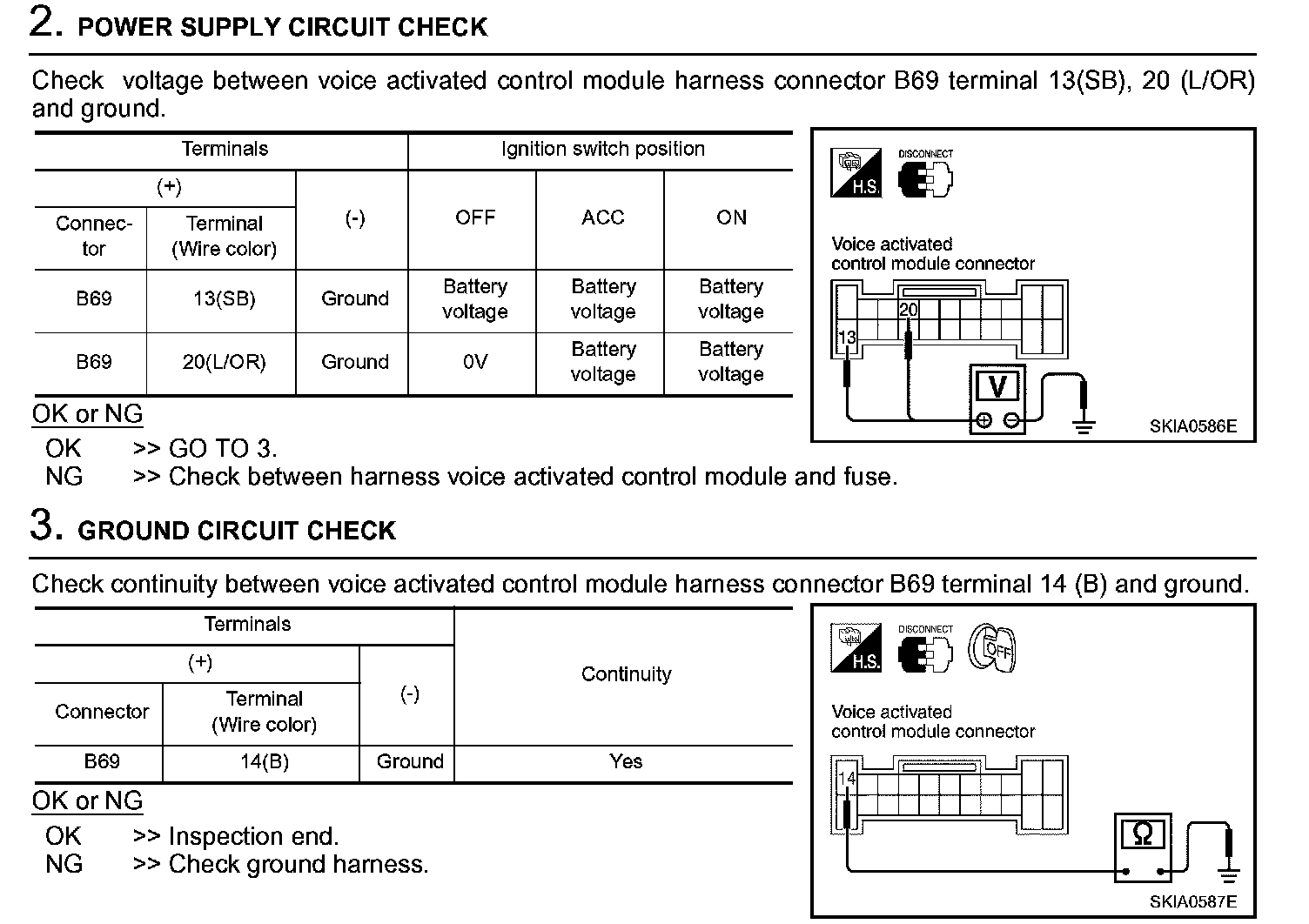

Power Supply And Ground Circuit Check Step 1:
Power Supply And Ground Circuit Check Step 2 - 3:
