Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Voice Activation System
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

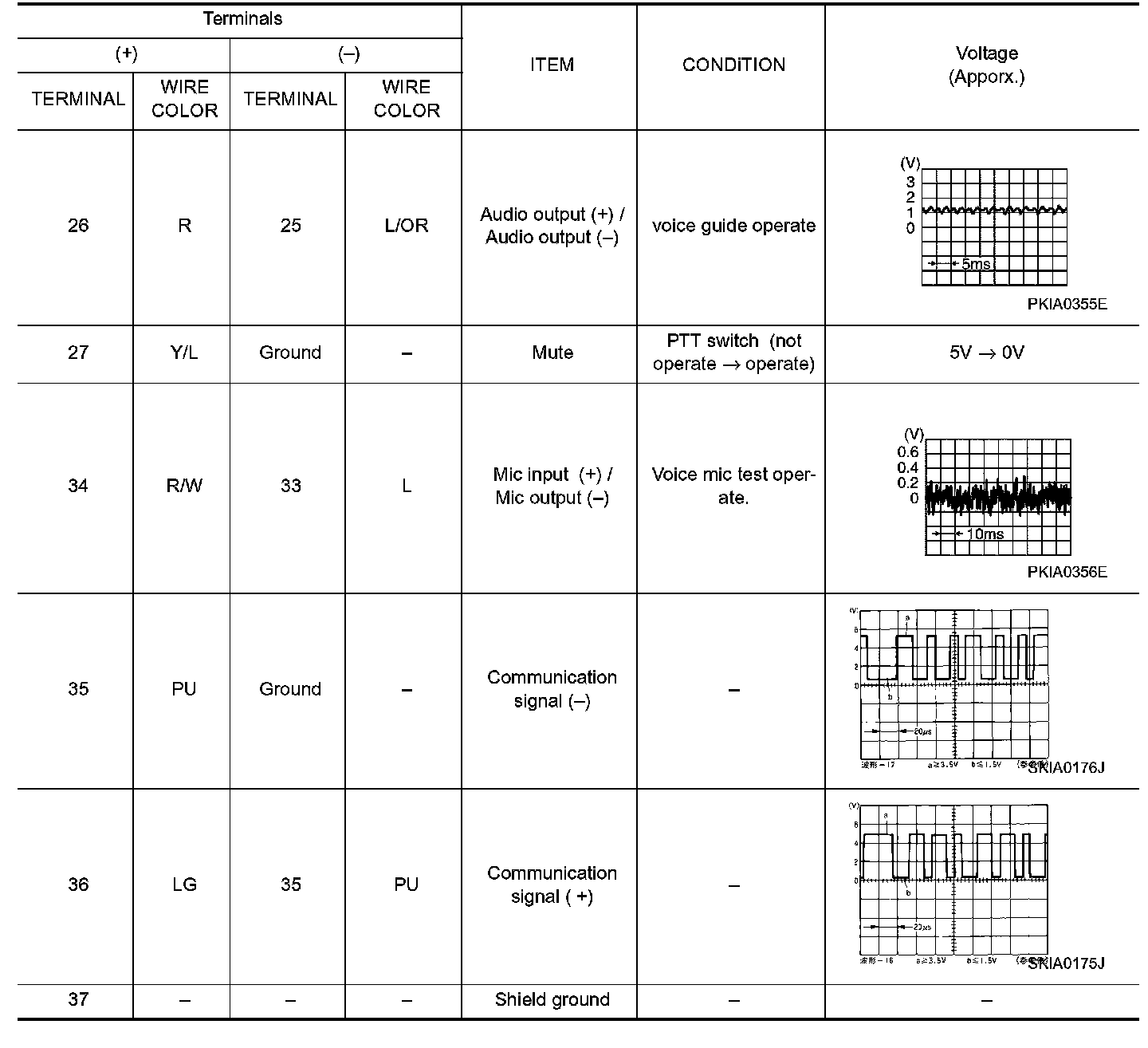

Terminals And Reference Values For Voice Activated Control Module Part 1:
Terminals And Reference Values For Voice Activated Control Module Part 2:
