Front Door Harness

Front Door Harness:

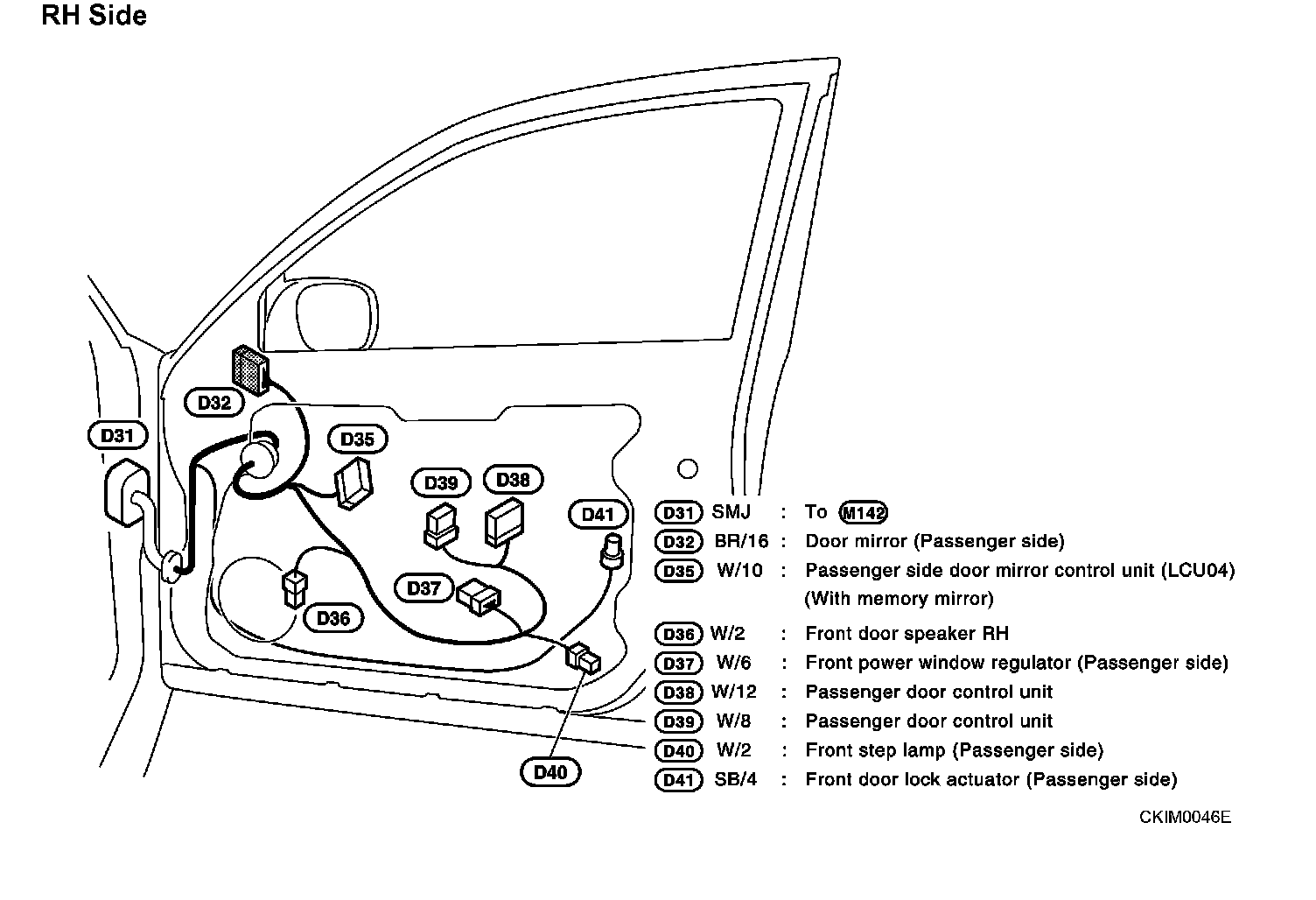

Front Door Harness RH Side:



Front Door Harness LH Side:

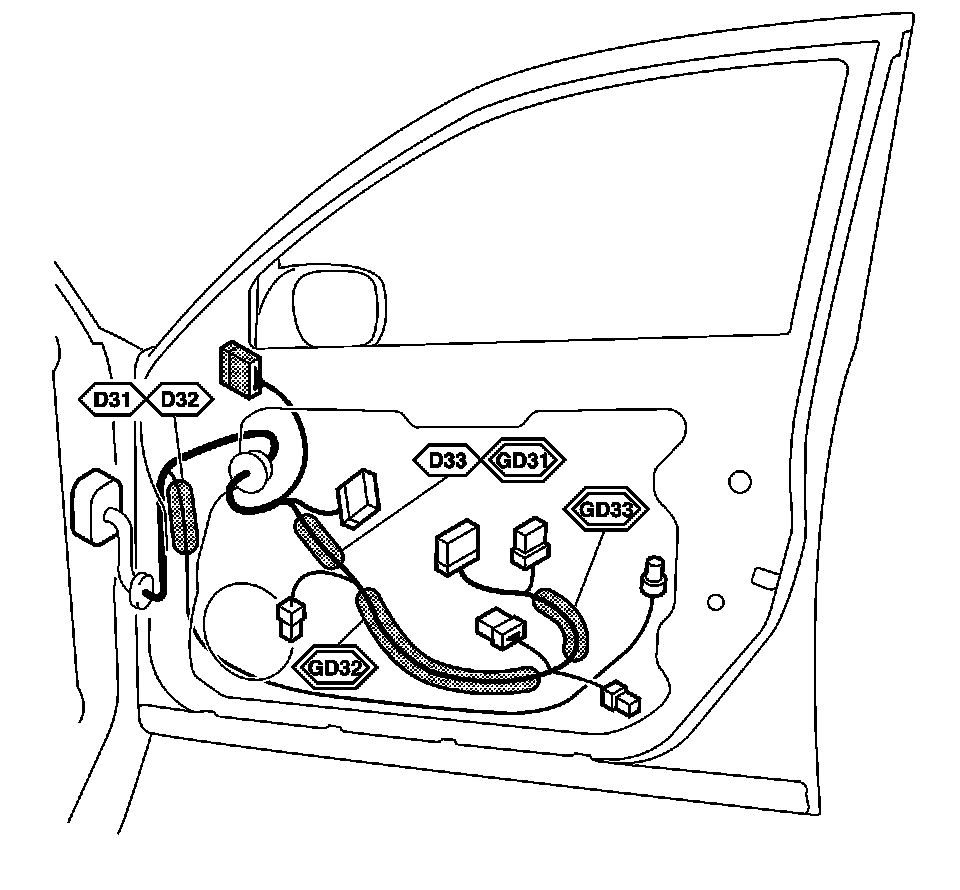

Front Door Harness RH Side:
