Rear Door Harness
Rear Door Harness

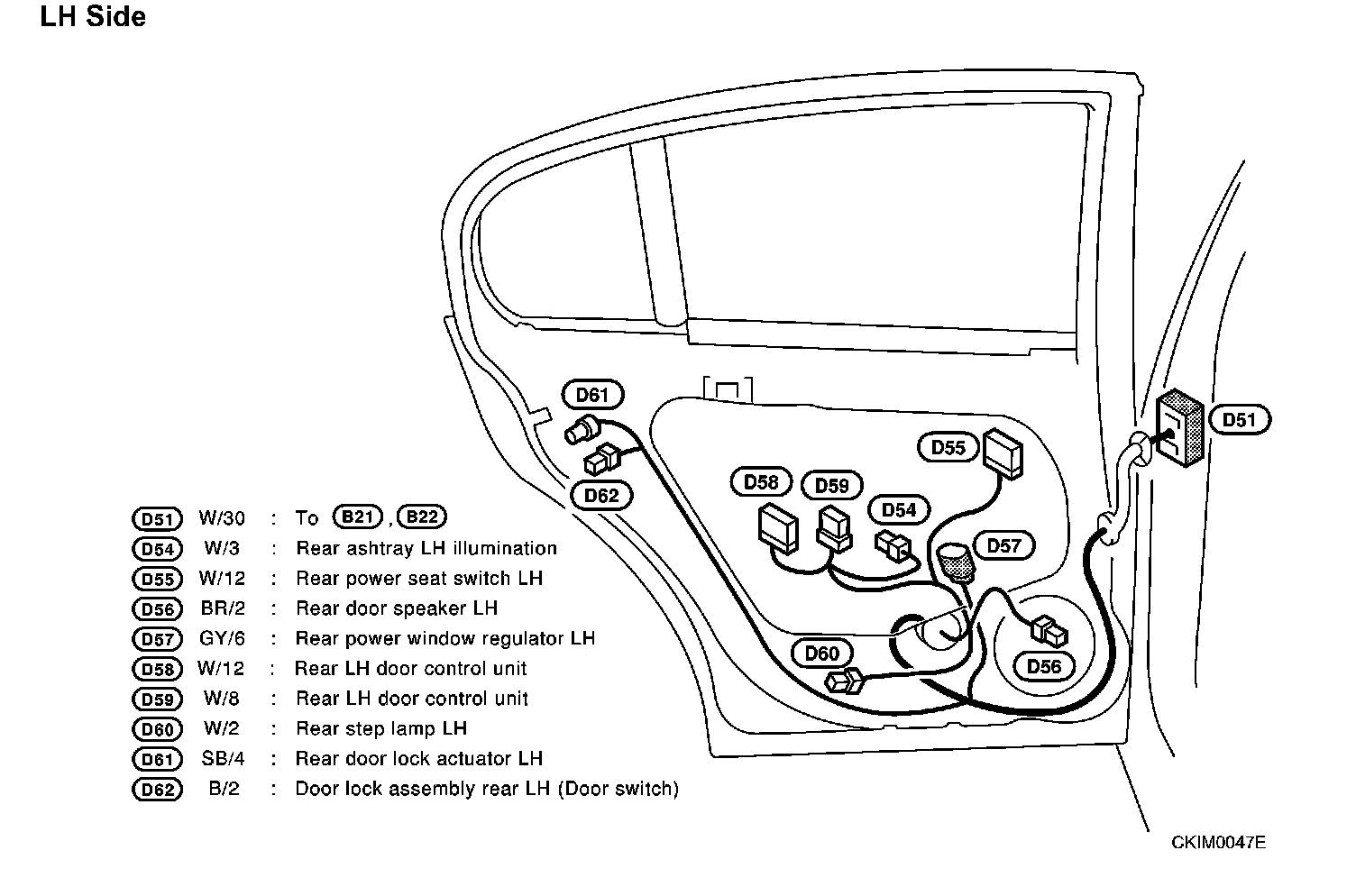

Rear Door Harness LH Side:

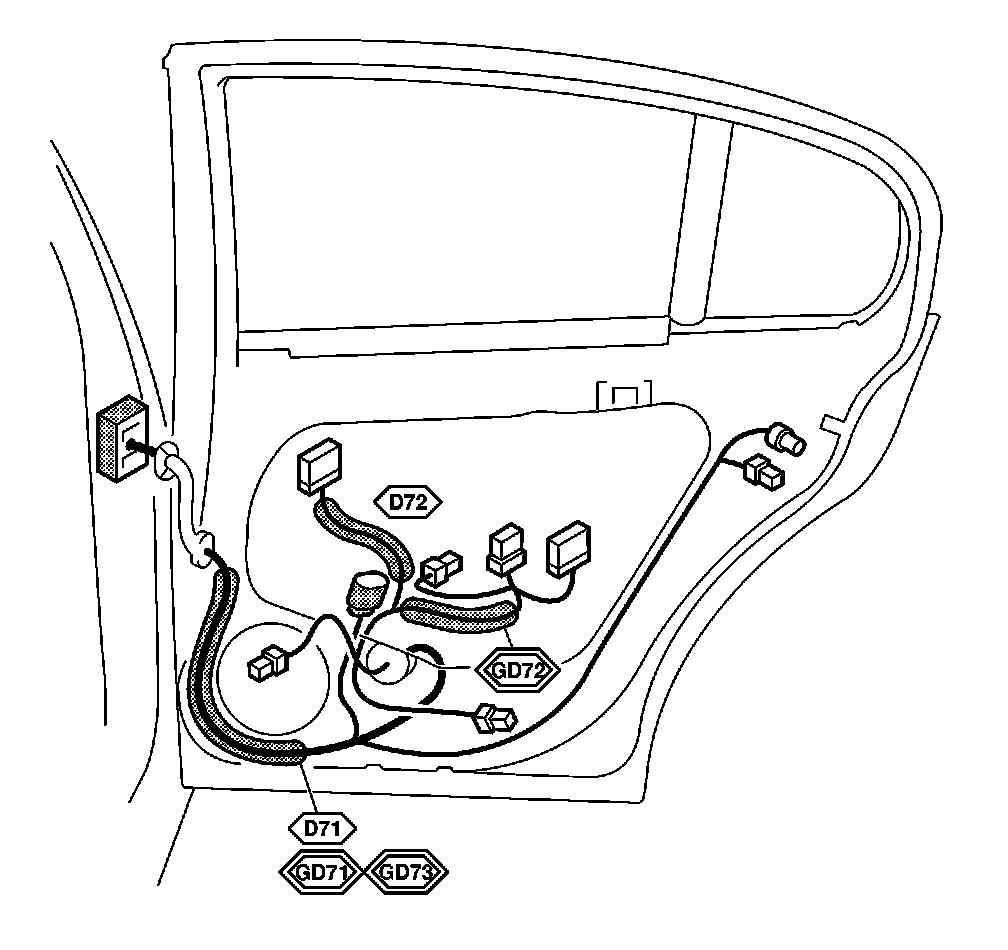

Rear Door Harness RH Side:

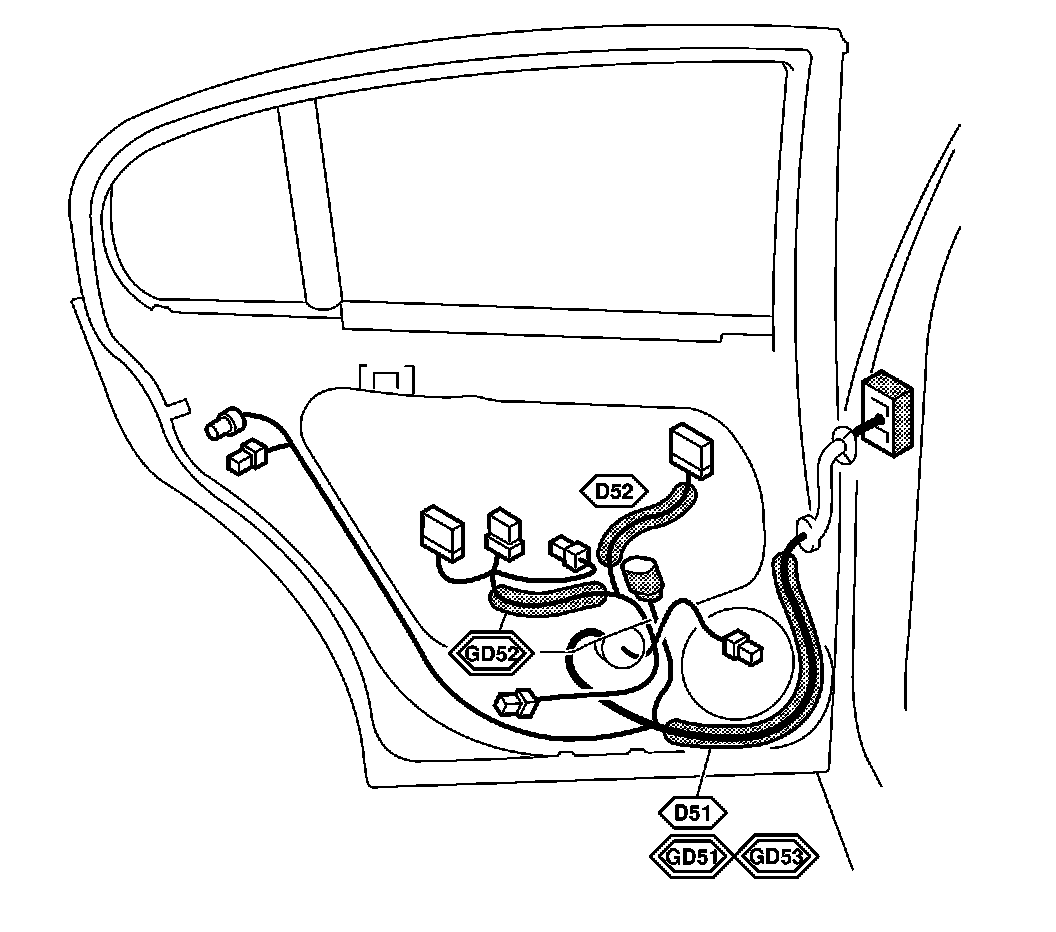

Rear Door Harness LH Side:
Rear Door Harness RH Side:
