Exterior Moulding / Trim: Service and Repair

Windshield Molding:

Removal and Installation

REMOVAL
1. Apply protective tape around outer circumference of windshield molding.
2. Disconnect clips in order of 4, 3, 2 and 1. Pull upper part to outer side of vehicle.




INSTALLATION

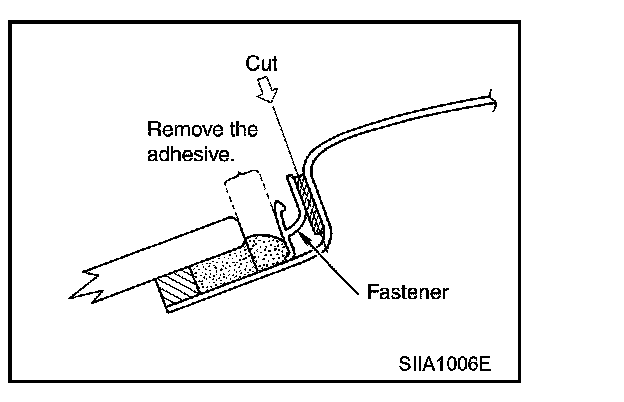

1. Cut double-faced adhesive tape of fastener with cutter knife. Remove fastener (upper).
2. Remove any excess glue on windshield or flange with cutter knife.
3. Remove remains of double-faced adhesive tape on flange with remover.

CAUTION: Do not handle remover around fire or flame, or in closed areas.

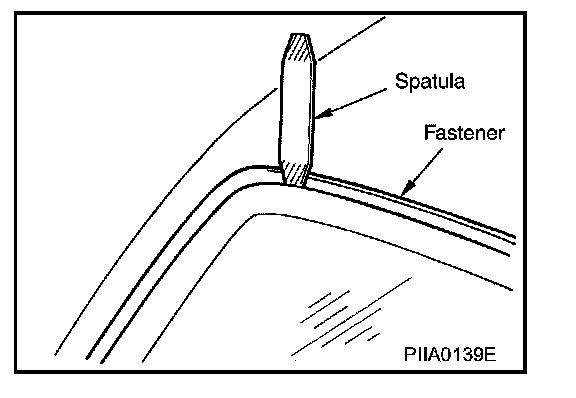

4. Fix double-faced adhesive tape on new fastener on flange from center of vehicle to outer side with spatula.




5. Connect clips in order of 1, 2, 3 and 4.
6. Connect joint 9, then clips in order of 5, 6, 7 and 8.
