Grille: Service and Repair

Removal and Installation

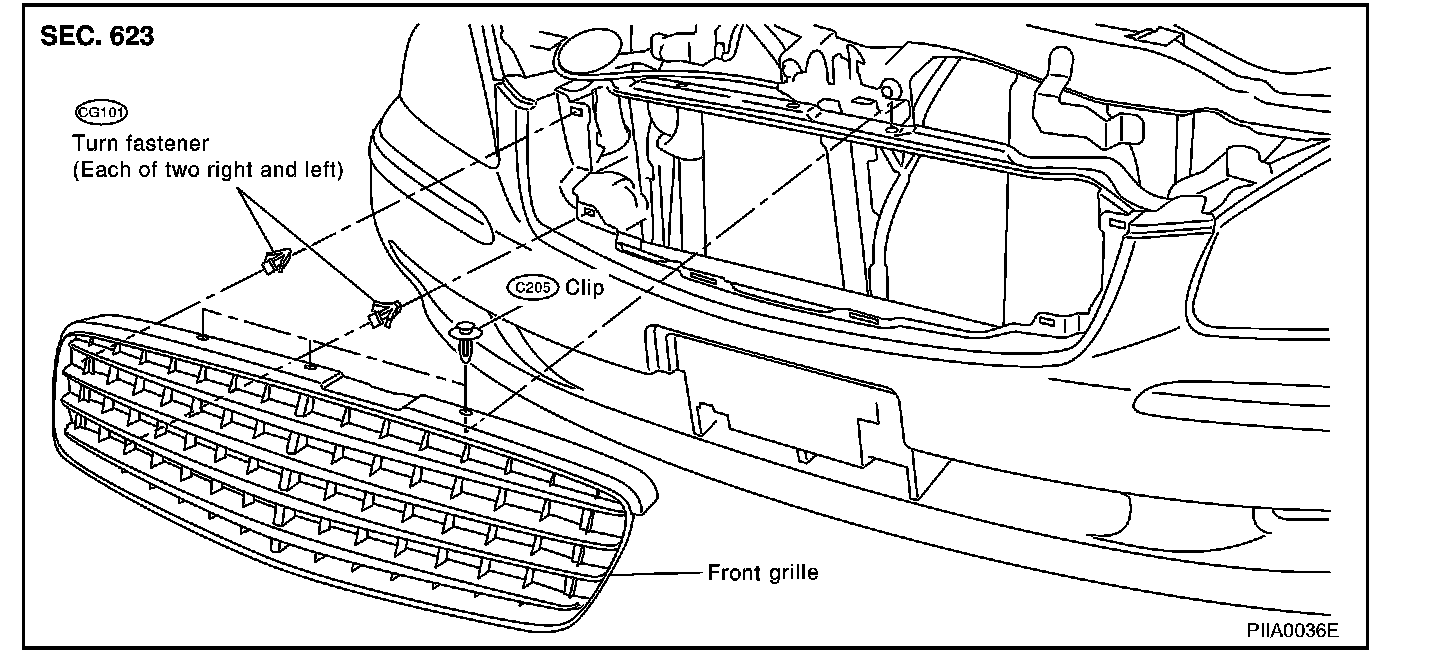

REMOVAL
1. Apply protection tapes around outer circumference of front grille (bumper fascia side).
2. Remove clips on upper side of grille.
3. Push down tips of four turn fasteners from rear side of grille. Pull out grille. Disconnect turn fasteners and remove grille.

INSTALLATION
To install, reverse the removal procedure sequence.
