Harness Locations
>>
Main Harness
Main Harness

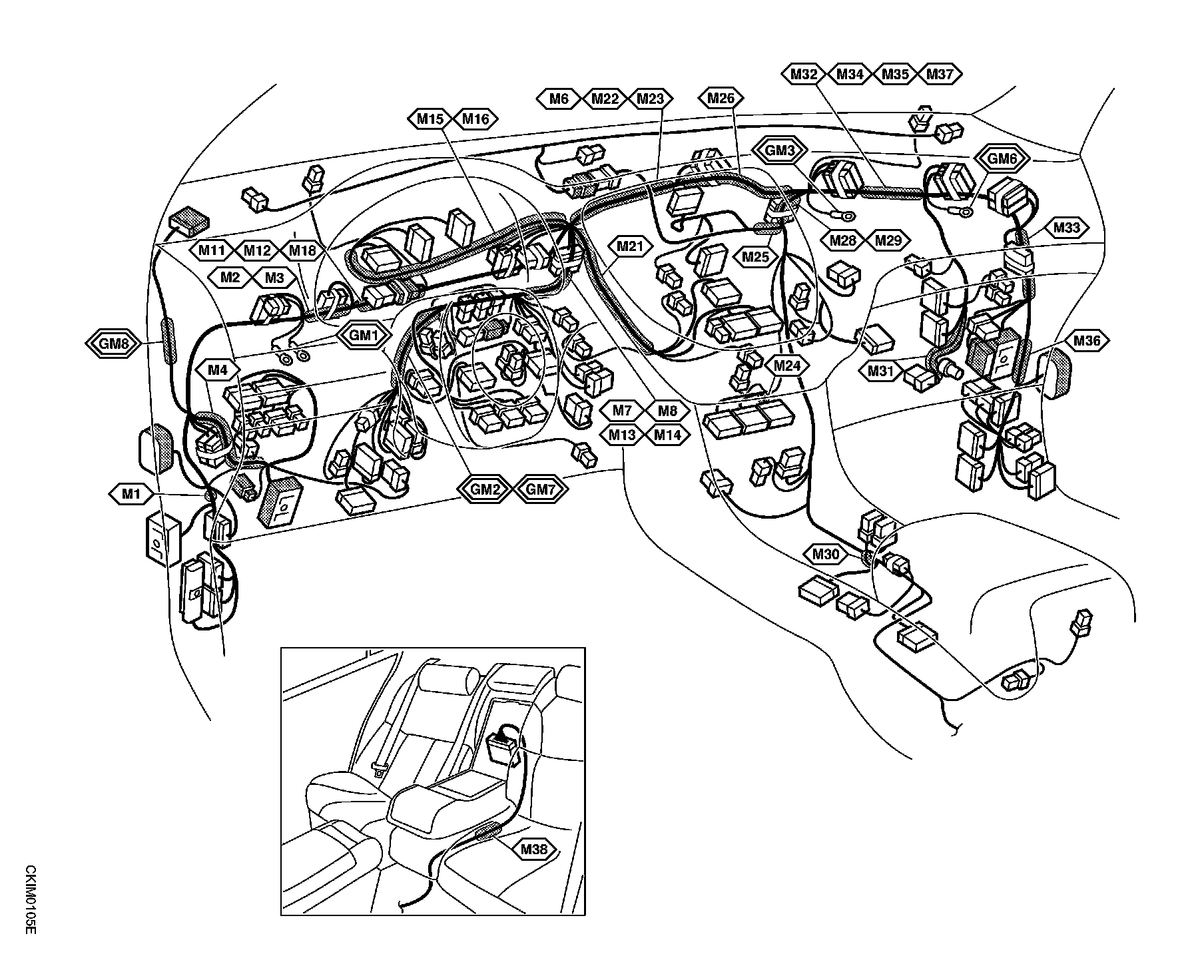

Main Harness Part 1:
Main Harness Part 2:
Main Harness Part 3:

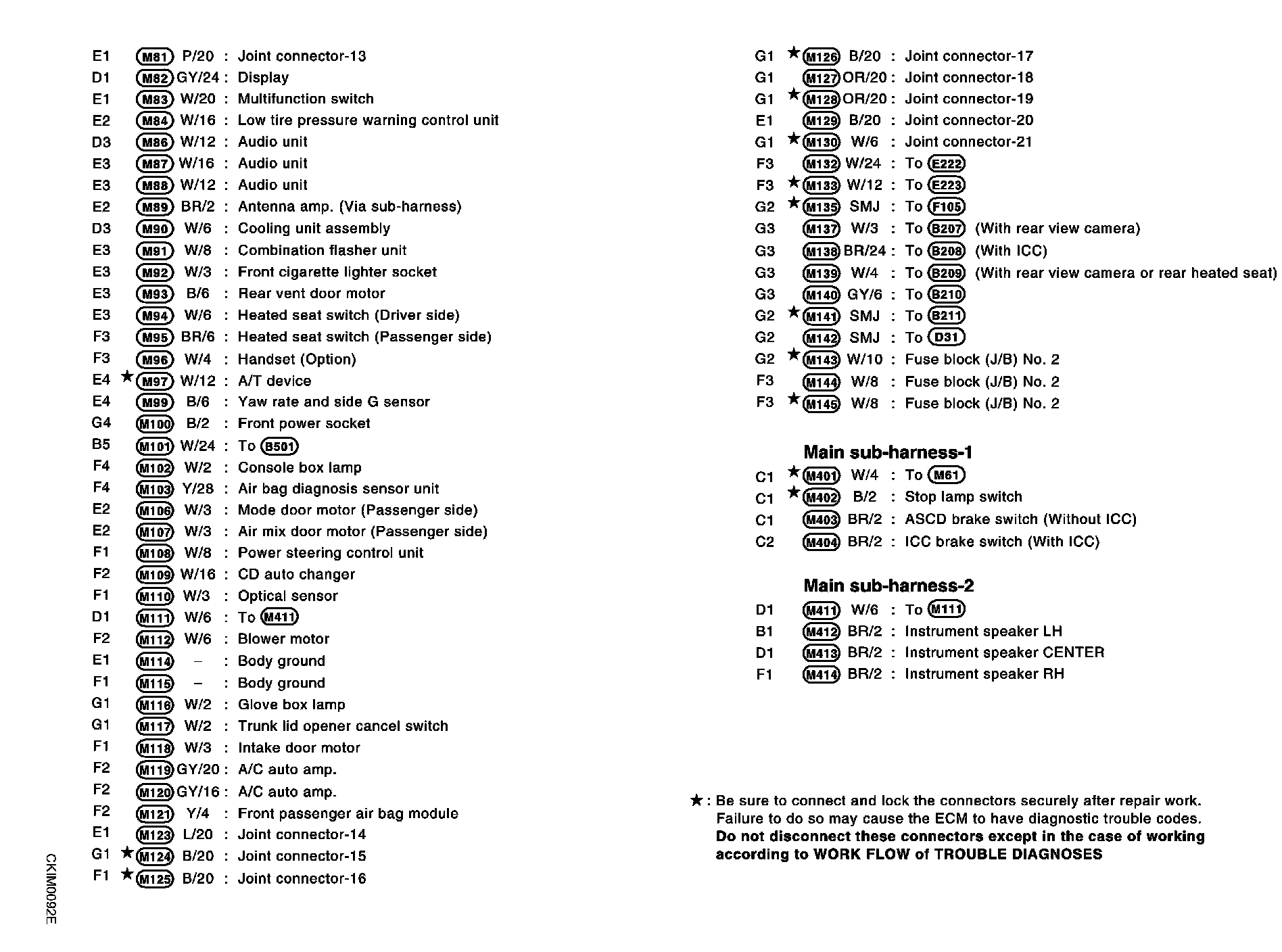

Main Harness:
