Sunroof / Moonroof: Adjustments

Fitting Adjustment:

Fitting Adjustment

GAP ADJUSTMENT
1. Remove shade assembly.
2. Tilt glass lid up then remove side trims.
3. Loosen glass lid securing nuts (2 each on left and right sides), then tilt glass lid down.

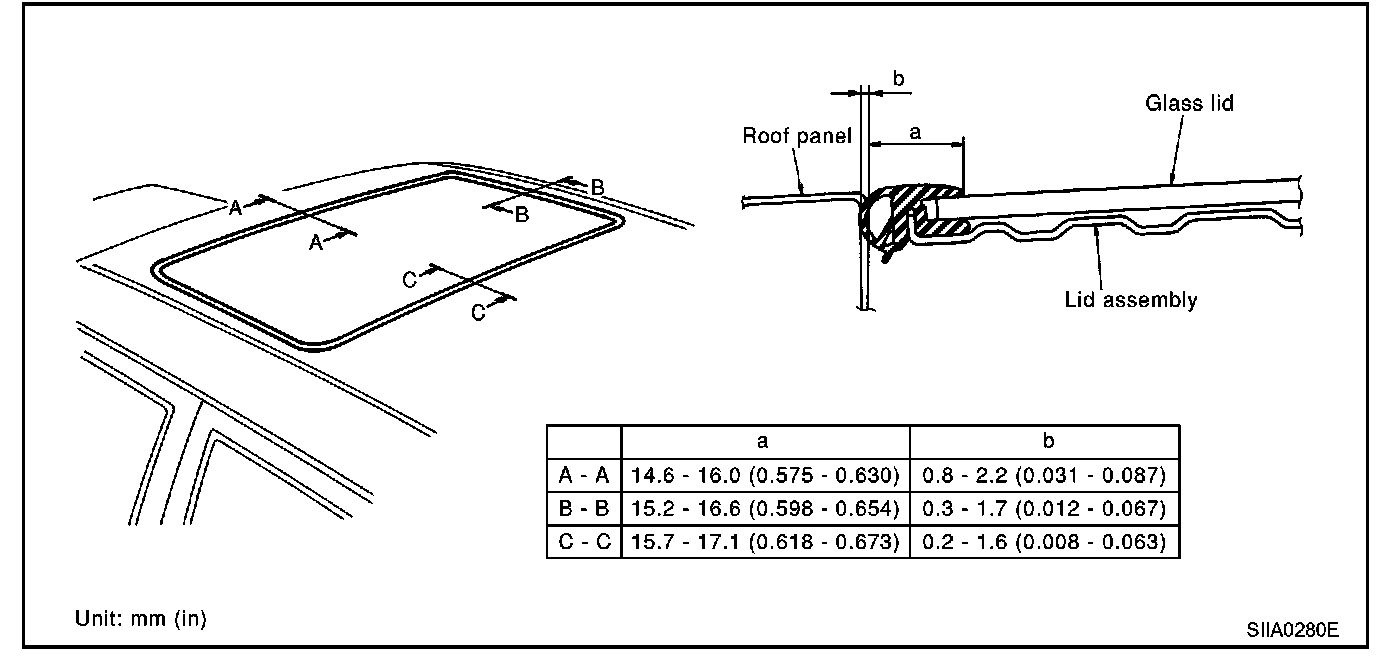

4. Adjust glass lid from outside of vehicle so it resembles "A - A" as shown in the figure above.
5. Tilt glass lid up and down until it is adjusted to "C - C" as shown in the figure above.
6. After adjusting glass lid, tilt glass lid up and tighten nuts.
7. Tilt glass lid up and down several times to check that it moves smoothly.




HEIGHT DIFFERENCE ADJUSTMENT
1. Tilt glass lid up and down.
2. Check height difference between roof panel and glass lid to see if it is as "A - A" as shown above.
3. If necessary, adjust it by using one of following procedures.

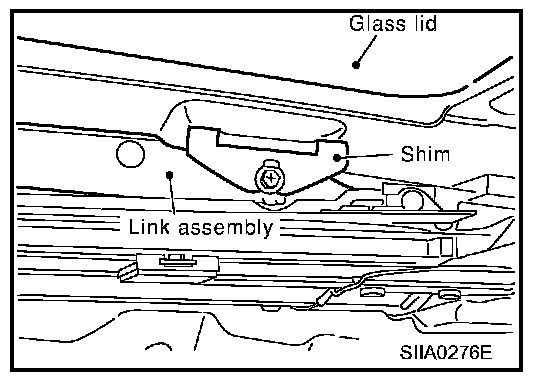

- Adjust by adding or removing adjustment shim(s) between glass lid and link assembly.
- If glass lid protrudes above roof panel, add shim(s) or plain washer at sunroof mounting bracket or stud bolt locations to adjust sunroof installation as required.
