Front Seat

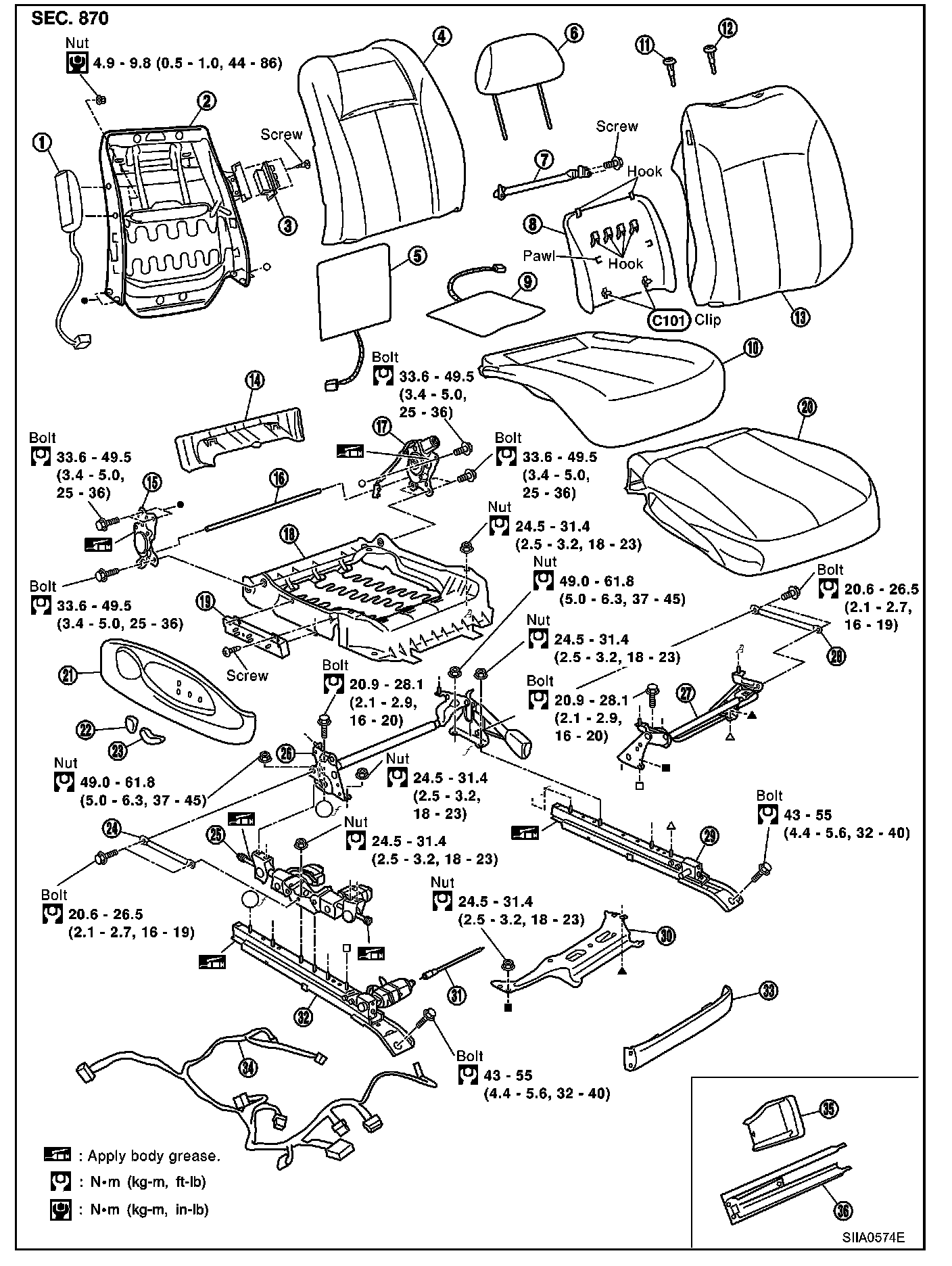

Driver Side Power Seat:
1. Driver side air bag module
2. Seat back frame
3. Seat back pad
4. Seat back heater unit
5. Headrest
6. Seat back grip belt
7. Seat back board
8. Seat cushion heater unit
9. Seat cushion pad
10. Headrest holder (locked)
11. Headrest holder (free)
12. Seat back trim
13. Seat cushion trim
14. Seat lumbar unit
15. Seat cushion rear finisher
16. Reclining device (LH)
17. Reclining device rod
18. Reclining device (RH)
19. Seat cushion frame
20. Power seat switch (driver side)
21. Seat cushion outer finisher
22. Lumbar support switch knob
23. Reclining switch knob
24. Slide-lifter switch knob
25. Seat cushion rod (LH)
26. Lifter motor unit assembly
27. Seat lifter link bracket (rear)
28. Seat lifter link bracket (front)
29. Seat cushion rod (RH)
30. Inner sliding assembly
31. Driver seat control unit bracket
32. Driver seat control unit
33. Flexible wire
34. Outer sliding assembly
35. Seat cushion front finisher
36. Driver power seat harness
37. Front leg cover (LH/RH)
38. Rear leg cover (LH/RH)
Passenger Side Power Seat:
1. Front side air bag module
2. Seat back frame
3. Passenger power seat switch (seat-back)
4. Seat back trim
5. Seat back heater unit
6. Headrest
7. Seat back grip belt
8. Seat back board
9. Seat cushion heater unit
10. Seat cushion pad
11. Headrest holder (free)
12. Headrest holder (locked)
13. Seat back trim
14. Seat cushion rear finisher
15. Reclining device (RH)
16. Reclining device rod
17. Reclining device (LH)
18. Seat cushion frame
19. Passenger power seat switch
20. Seat cushion trim
21. Seat cushion outer finisher
22. Reclining switch knob
23. Slide-lifter switch knob
24. Seat cushion rod (RH)
25. Lifter motor assembly
26. Seat lifter link bracket (rear)
27. Seat lifter link bracket (front)
28. Seat cushion rod (LH)
29. Inner sliding assembly
30. Bracket
31. Flexible wire
32. Outer sliding assembly
33. Seat cushion front finisher
34. Passenger power seat harness
35. Front leg cover (LH/RH)
36. Rear leg cover (LH/RH)
REMOVAL
When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.
CAUTION:
- Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait and least 3 minutes.
- When checking the power seat circuit for continuity using a circuit tester, do not confuse its connector with the side air bag module connector. Such an error may cause the air bag to deploy.
- Do not drop, tilt, or bump the side air bag module installing in the seat. Always handle it with care.
1. Remove the front leg cover and rear leg cover. (LH/RH)
NOTE:
1. Slide the seat backward, and disconnect the front tabs on the front leg cover. Then move the cover toward the rear of the vehicle, and pull up to remove.
2. Slide the seat forward, then disengage the tabs on the front RH/LH of the rear leg cover and tabs engaged into the rail. Then pull the cover toward the rear of the vehicle.
2. Slide the seat until the body mounting bolts (4) are visible and a tool can be inserted.
NOTE:
- When disassembling the driver seat after removal, set the front/rear cushion lifter to the top position.
- For the power Ottoman seat, operate the Ottoman switch to move the Ottoman part forward until it reaches around the middle position.
3. Disconnect the battery negative cable.
4. Remove the harness connector for the side air bag module.
5. Remove the body mounting bolts (4) and seat belt anchor bolt (1).
To remove the seat belt anchor bolt, refer to "Removal and Installation of Front Seat Belt" in "Seat Belt (SB)".
6. Remove the power seat harness connector and vehicle harness fixing clip out of the vehicle.
NOTE: When removing and installing, using shop clothes, protect the parts from damage where it may interfere with others.
INSTALLATION
Install in the reverse order of removal.
NOTE: Be sure to insert the rear end tab of the rear leg cover under the rail.
