Rear Seat

Removal and Installation

Manual Seat (bench Seat):

Power Seat (split Cushion):

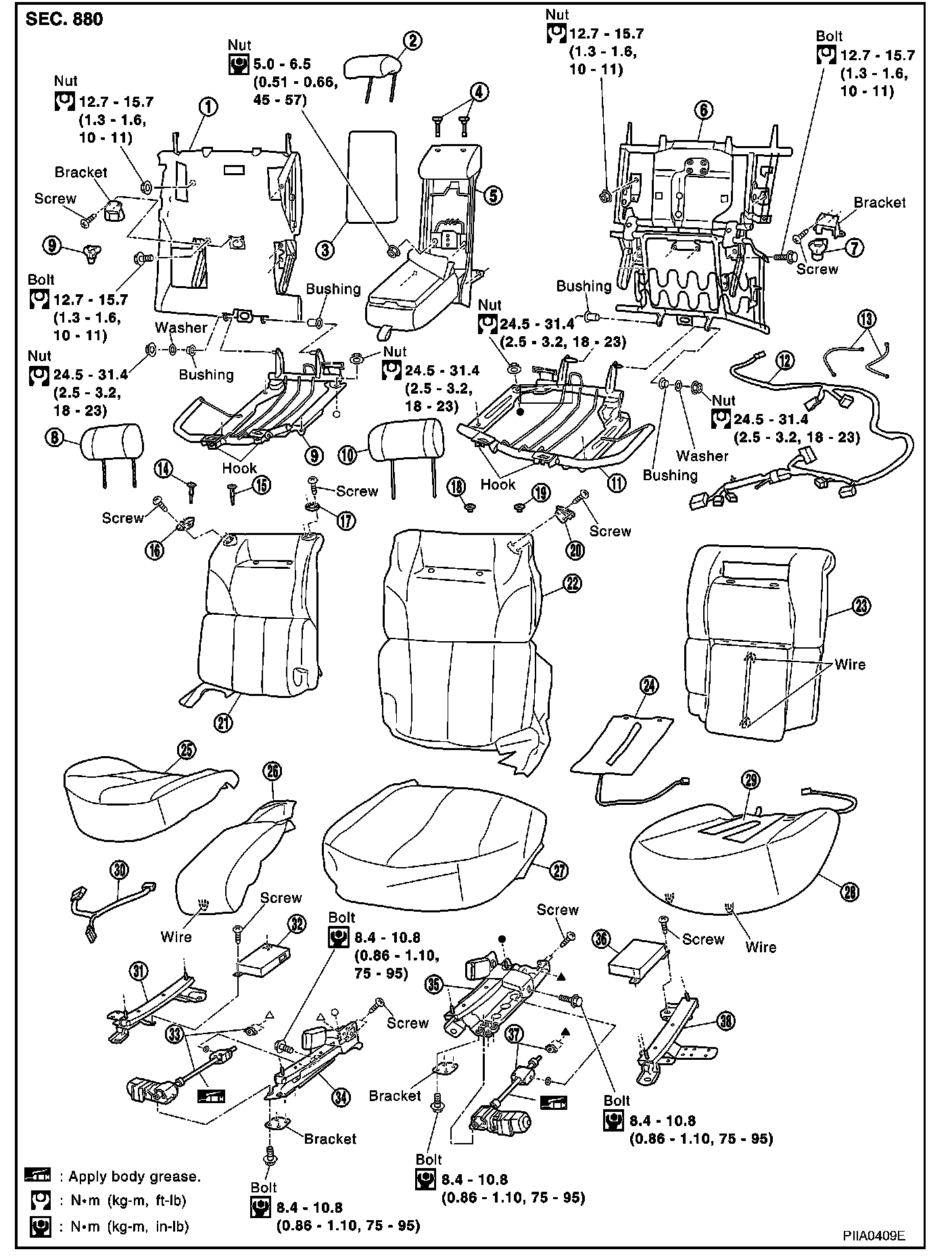

1. Rear seatback frame (RH)
2. Headrest (center)
3. Rear seatback board
4. Headrest holder
5. Rear center seatback assembly
6. Rear seatback frame (LH)
7. Rear seat hook
8. Headrest (RH)
9. Rear seat cushion frame (RH)
10. Headrest (LH)
11. Rear seat cushion frame (LH)
12. Rear power seat harness A
13. Ground harness
14. Headrest holder (free)
15. Headrest holder (locked)
16. Seat belt guide (RH)
17. Seat belt guide (center)
18. Headrest holder (power RH)
19. Headrest holder (power LH)
20. Seat belt guide (LH)
21. Seatback trim and pad (RH)
22. Seatback trim (LH)
23. Seatback pad (LH)
24. Seatback heater unit
25. Seat cushion trim and pad (RH)
26. Seat cushion trim and pad (center)
27. Seat cushion trim (LH)
28. Seat cushion pad (LH)
29. seat cushion heater unit
30. Rear power seat harness B
31. Rear seat slide, outer (RH)
32. Power seat control unit (RH)
33. Sliding motor unit (RH)
34. Rear seat slide, inner (RH)
35. Rear seat slide, inner (LH)
36. Seat control unit (LH)
37. Sliding motor unit (LH)
38. Rear seat slide, outer (LH)

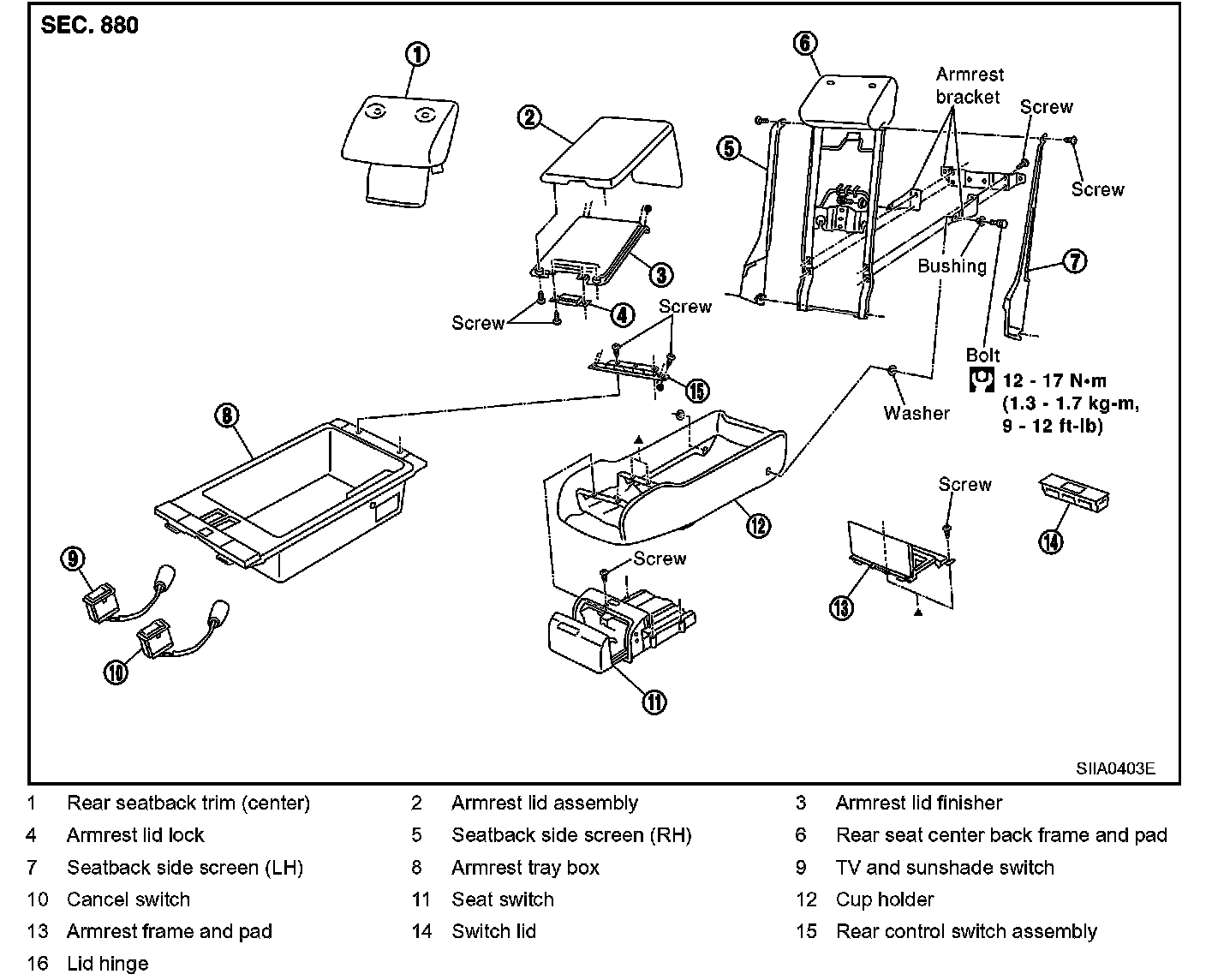

Center Seatback Assembly:

REMOVAL OF MANUAL SEAT (BENCH SEAT)

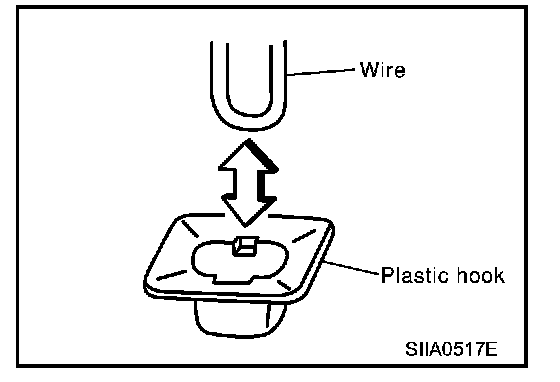

1. Pull the lock at the front bottom of the seat cushion forward (1 for each side), and pull the seat cushion upward to release the wire from the plastic hook, then pull the seat cushion forward to remove.
2. Partially remove the seatback board to disconnect the harness connector and remove the nuts (2) on the sunshade switch.
3. Remove the RH and LH screws (2) on the seatback.
4. Slide the seatback upward to pull off the wire from the vehicle-side hook, and remove the seatback.
5. After removing, remove the hog ring to separate the trim and pad.

INSTALLATION OF MANUAL SEAT (BENCH SEAT)
- Install in the reverse order of removal.

REMOVAL OF POWER SEAT (SPLIT SEAT) Center Seat




1. Pull the lock (1) at the front bottom of the seat cushion forward, and pull the seat cushion upward to release the wire from the plastic hook.
2. Remove the Velcro fastener at the rear of the seat cushion trim, and pull the seat cushion trim forward to remove.
3. Partially remove the seatback board to disconnect the harness connectors for rear control switch and rear seat control unit.
4. Remove the nuts (4), and slide the center seatback assembly upward to remove.
5. After removing, remove the hog ring to separate the trim and pad.

RH/LH Seat




1. Remove the headrest holders at the right and left.
- For the RH seat, remove the headrest, and turn the headrest holder toward the front of the vehicle by 90° to remove.

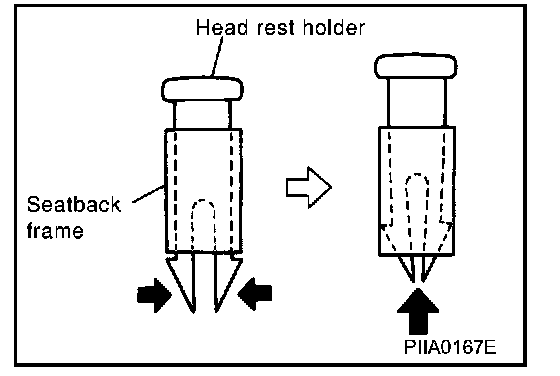

- For the LH seat, move the headrest to the lower limit to remove it. Then insert a slotted screwdriver into the hole on the headrest holder to pull up. Release the tab (1) on the headrest holder to remove the headrest holder.




2. Raise the bottom of the seat cushion to release the wire from the plastic hook (2 for each side), then pull the seat cushion forward to remove. (For the LH seat, disconnect the harness connector for the seat heater).




3. Access the hooks (2 for each side) from between the seatback pad and rear seatback frame, and pull them downward to remove the wire. Then, slide the seatback upward to remove.

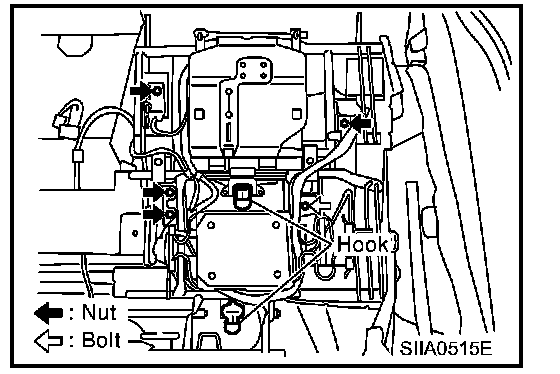

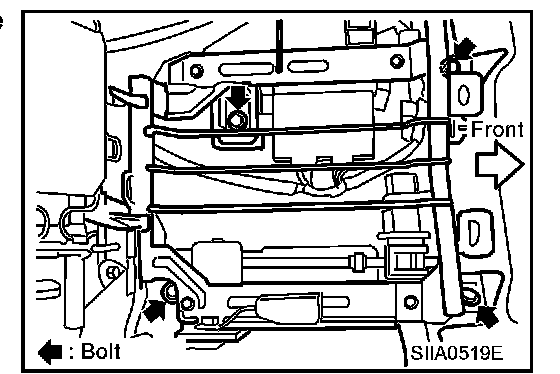

4. Remove nuts (4 for each side) and bolts (1 for each side) to remove the power unit frame assembly.




5. Remove the mounting bolts (4 for each side) and disconnect the vehicle-side harness connector on the seat cushion frame.
6. After removing, remove the hog ring to separate the trim and pad, and rear seat heater unit (only LH-side).

INSTALLATION OF POWER SEAT (SPLIT SEAT)
- Install in the reverse order of removal.

Disassembly and Assembly

SLIDING MOTOR & UNIT




1. Remove mounting bolts (1 for each side) and screws (2 for each side) on the lead screw unit.




2. Remove the sliding motor mounting bolt.




3. Slide the unit mounting bracket backward (on seat belt buckle side) to make space to take the unit out.
4. Pull the sliding motor and unit out of the unit mounting bracket.

NOTE: When installing the sliding rail to the seat cushion frame, slide the outer rail until it aligns to the inner rail, then install it.

CENTER SEATBACK ASSEMBLY

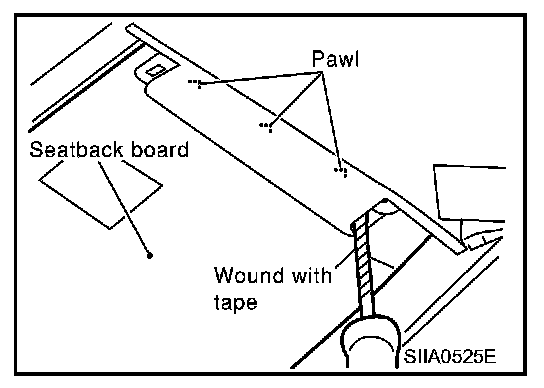

1. Remove the seatback board.
2. Remove the seatback side screen at the right and left (screws: 2 for each side).
3. Remove the armrest bracket (screws: 6).




4. Remove the hog ring on the rear seatback trim (center) and headrest holder (screws: 2).
5. Remove the armrest lid hinge (screws: 6) and armrest lid lock (screws: 2).




6. Release the tabs (2) on the armrest box, and disconnect the connectors for various switches.
7. Release the tab (1 for each) for each switch from the armrest box to separate.

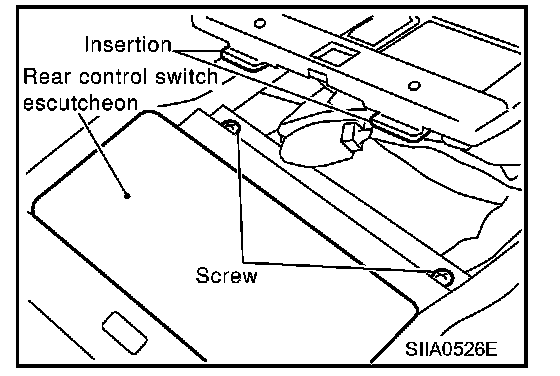

8. Disconnect the connector for the rear control switch to remove the switch lid (screws: 2) and rear control switch.

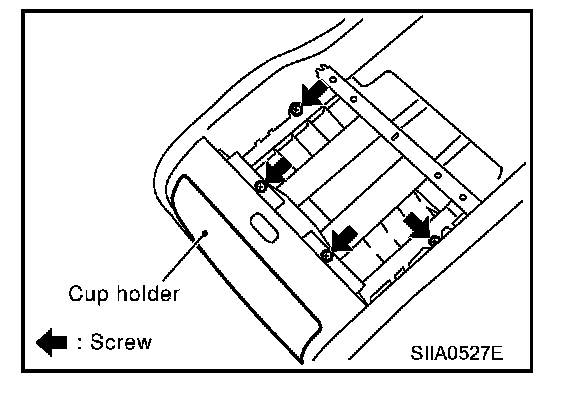

9. Remove the cup holder assembly (screws: 4).
