Pinout Values and Diagnostic Parameters

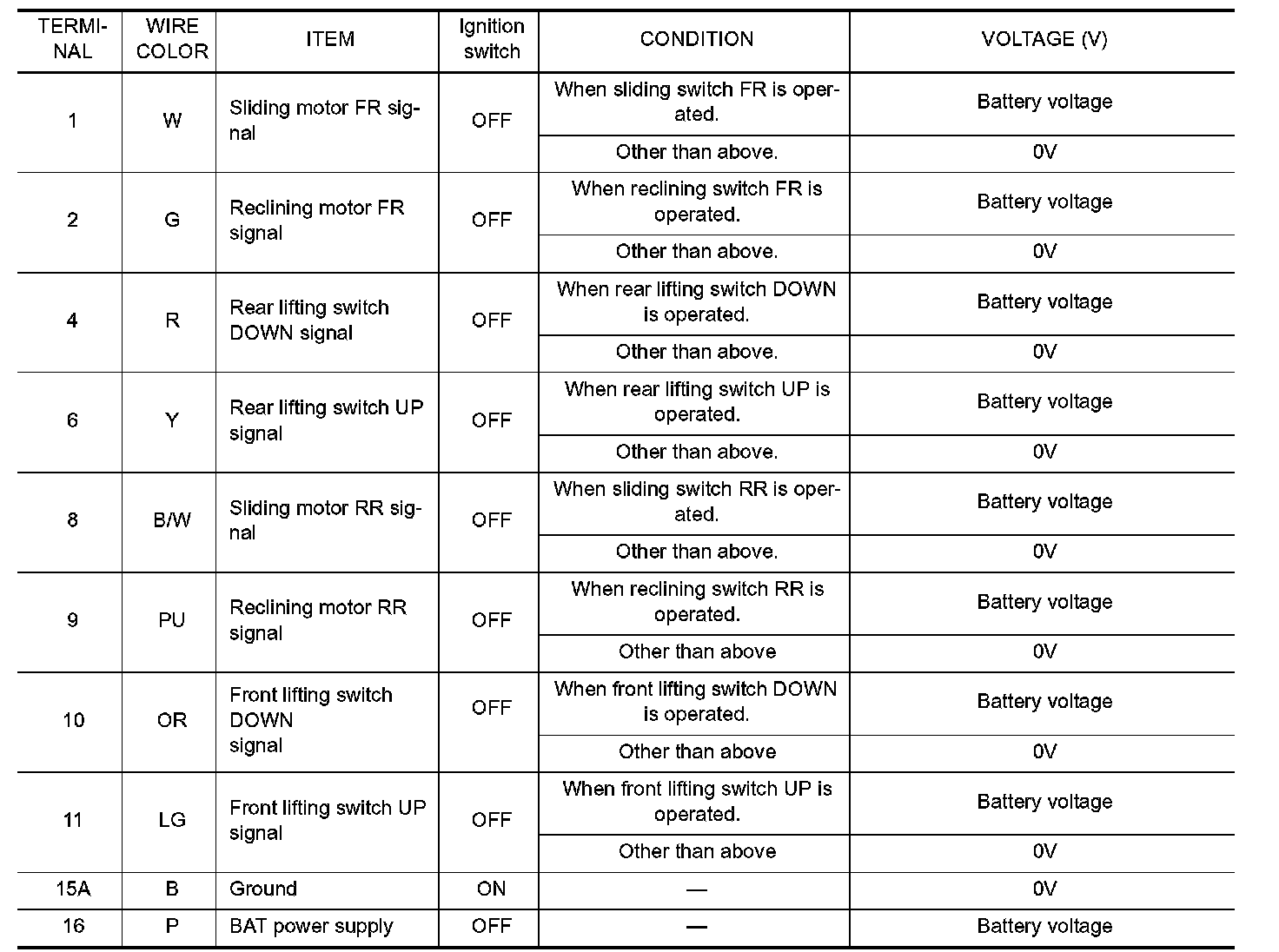

Terminals And Reference Values For Power Seat Switch:

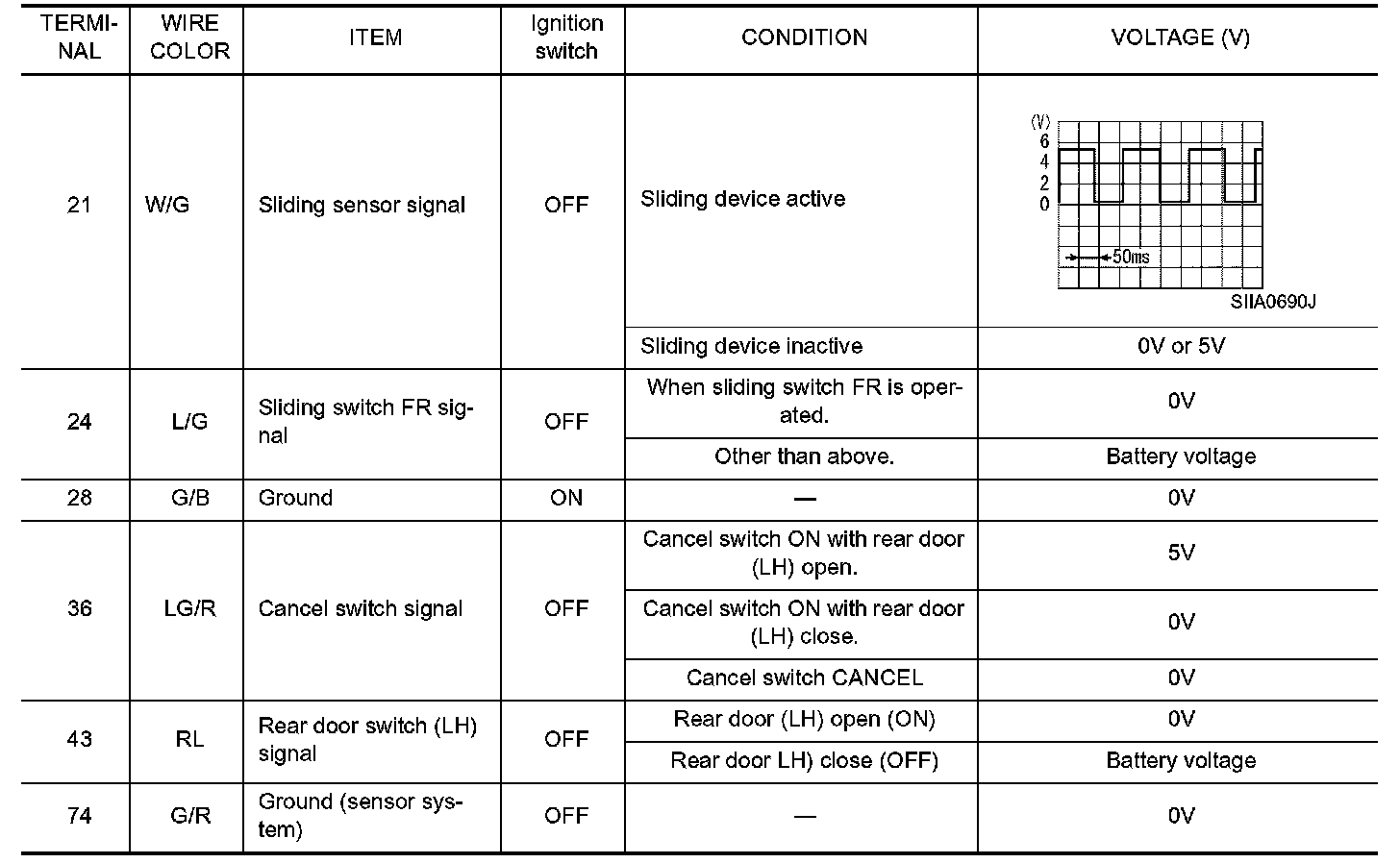

Terminals And Reference Values For Rear Power Seat Control Unit LH Part 1:

Terminals And Reference Values For Rear Power Seat Control Unit LH Part 2:

Terminals And Reference Values For Rear Power Seat Control Unit RH Part 1:

Terminals And Reference Values For Rear Power Seat Control Unit RH Part 2:
