Clips and Fasteners

Part 1:

Part 2:

Part 3:

Description

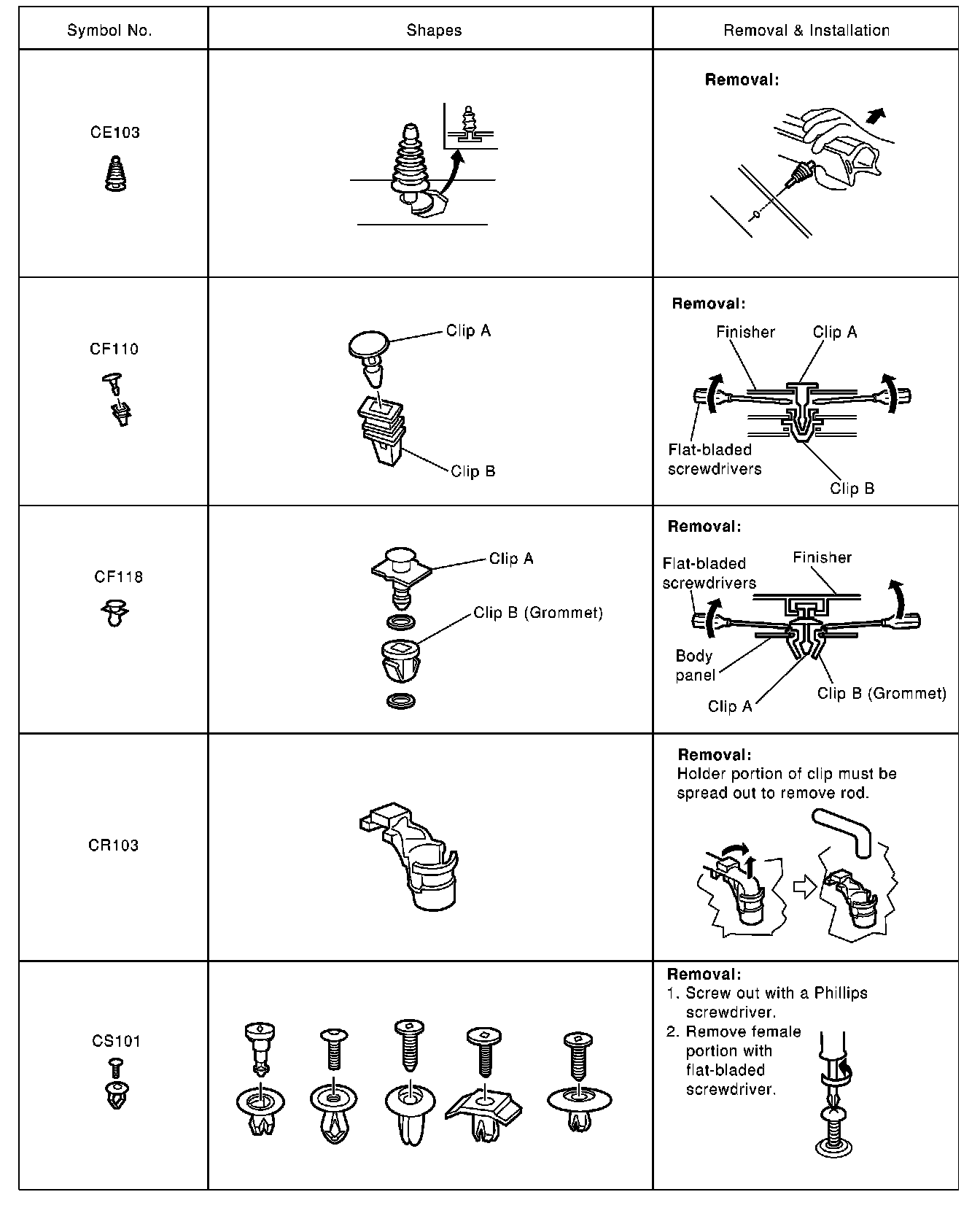

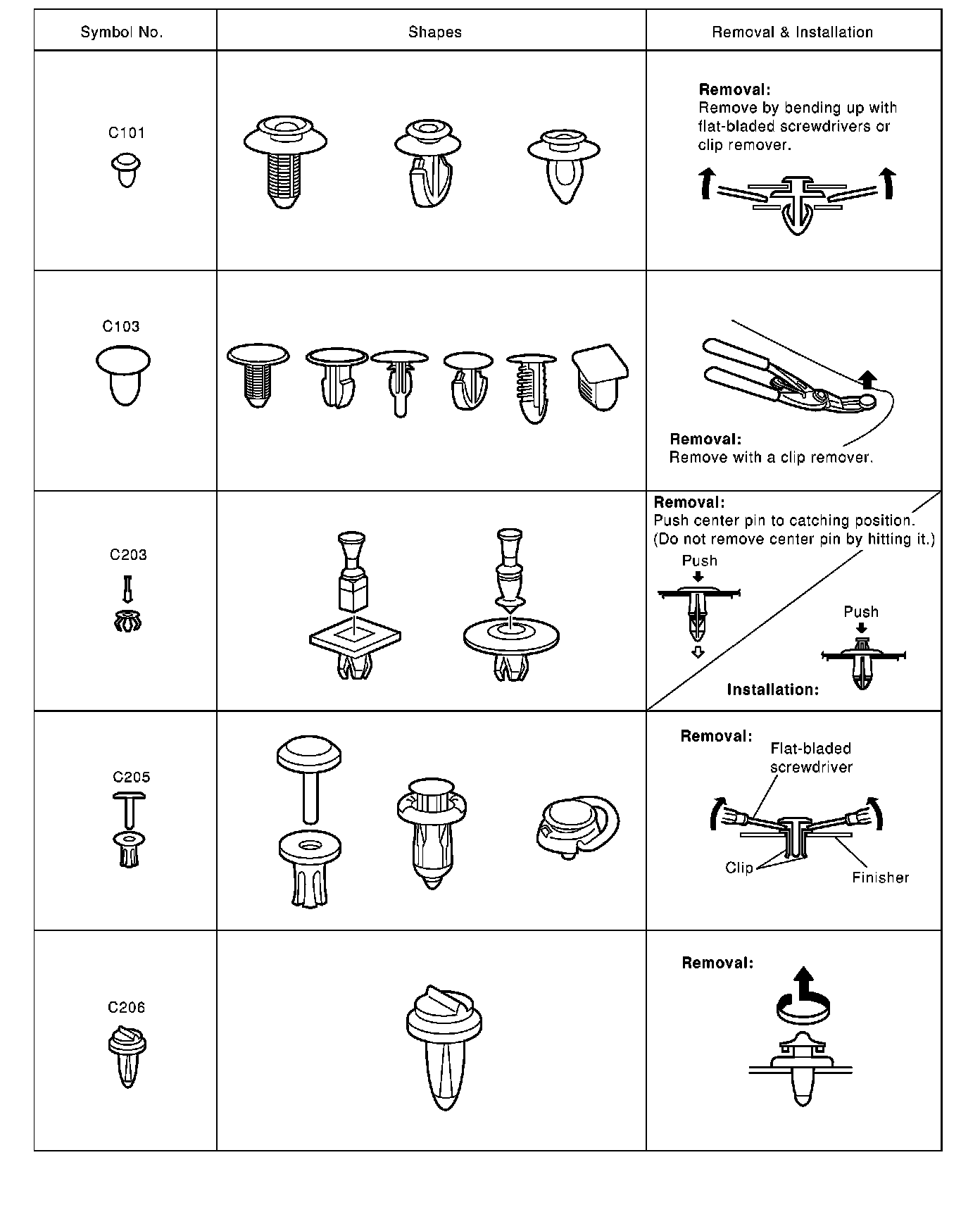

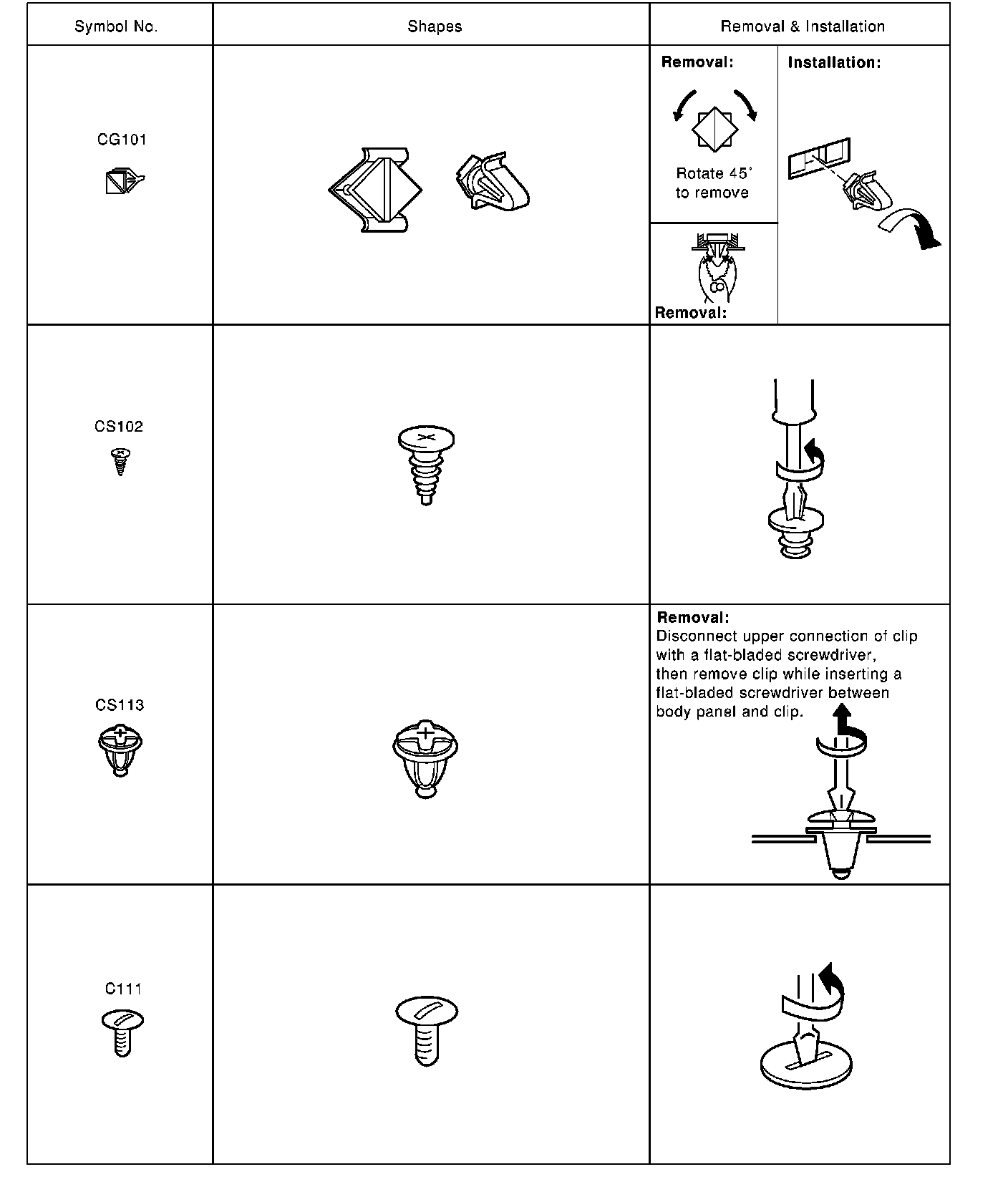

- Clips and fasteners in correspond to the following numbers and symbols.
- Replace any clips and/or fasteners which are damaged during removal or installation.
