Component Tests and General Diagnostics

INSPECTION

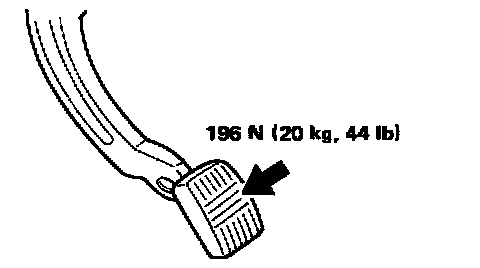

^ While depressing the parking brake pedal to specified amount of force, check that the pedal stroke is within the range of the specified stroke amount.
Number of notches : 4 - 5
^ Check that warning lamp comes on when parking brake pedal is depressed with in one notch.
