ACS-ASCD
ACS-ASCD

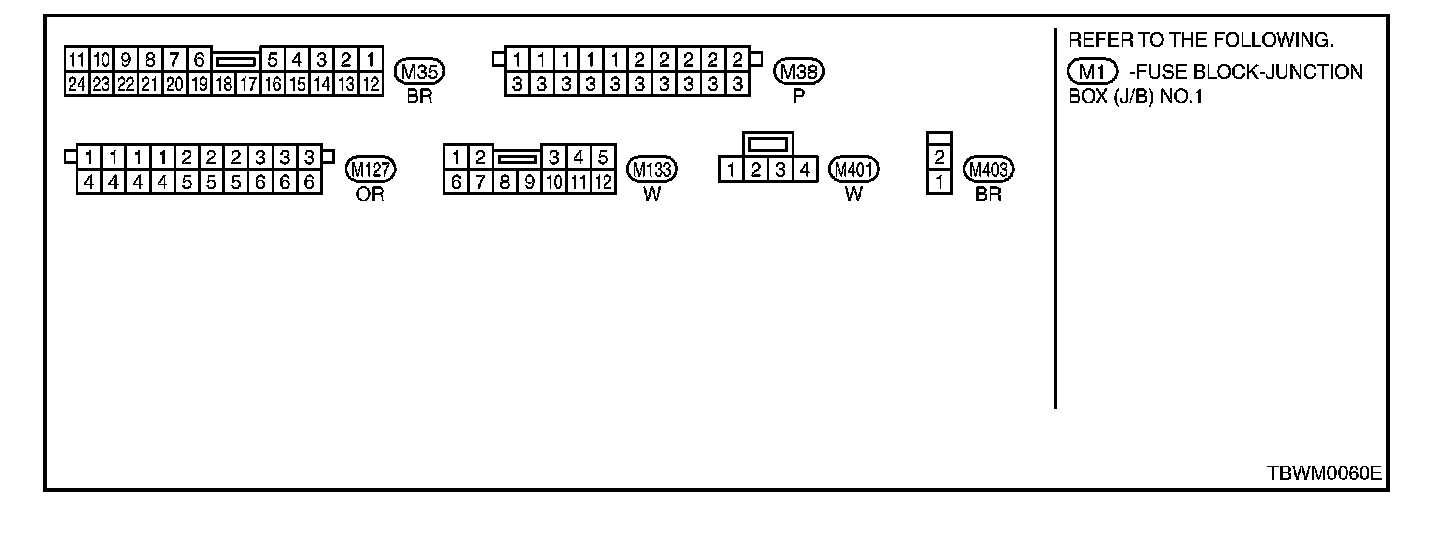

ACS-ASCD-01 Connector Views:

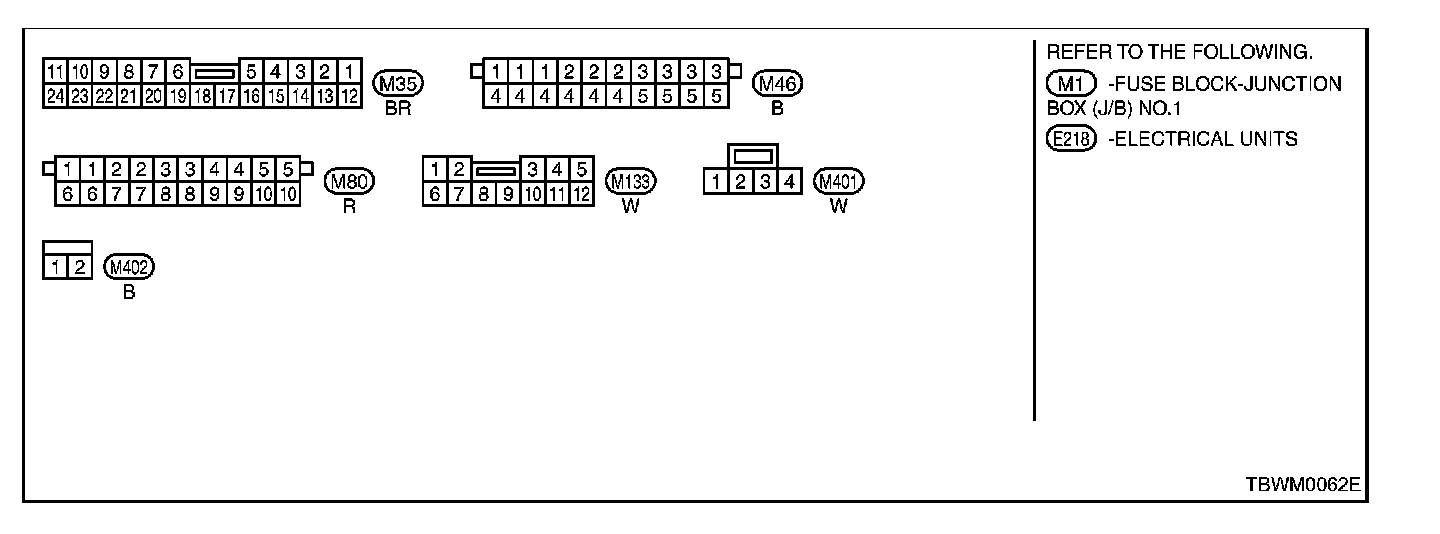

ACS-ASCD-02 Connector Views:

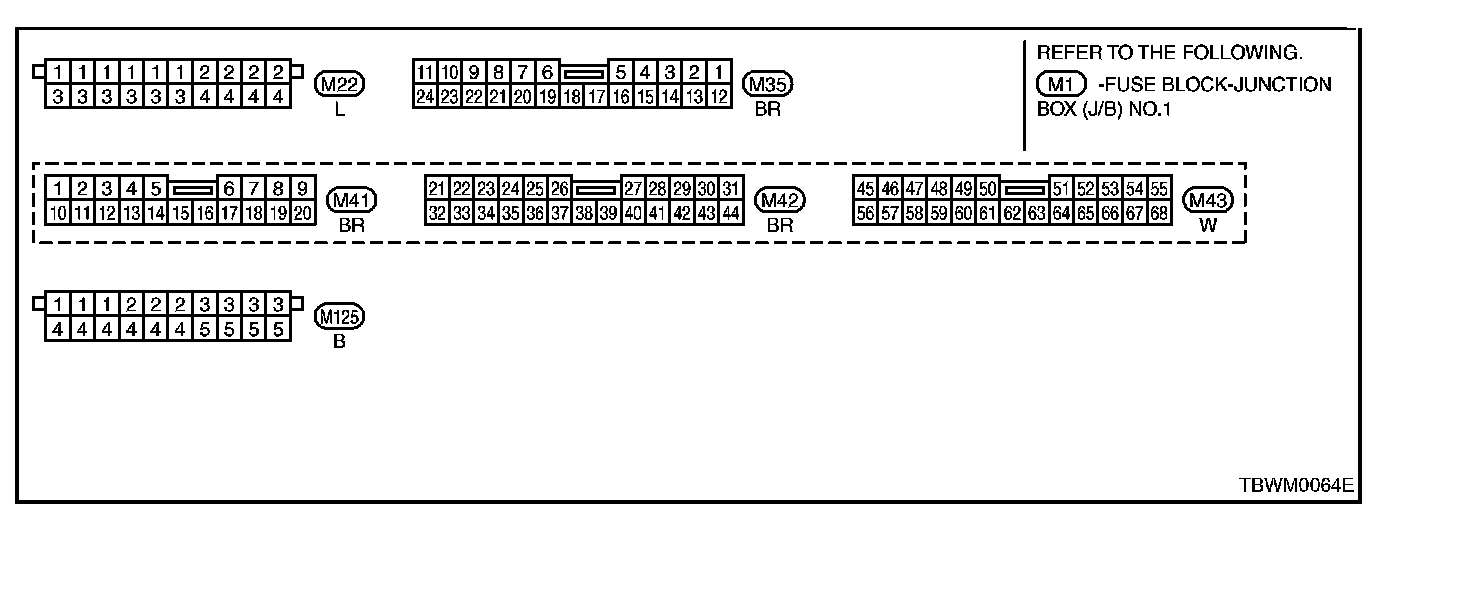

ACS-ASCD-03 Connector Views:

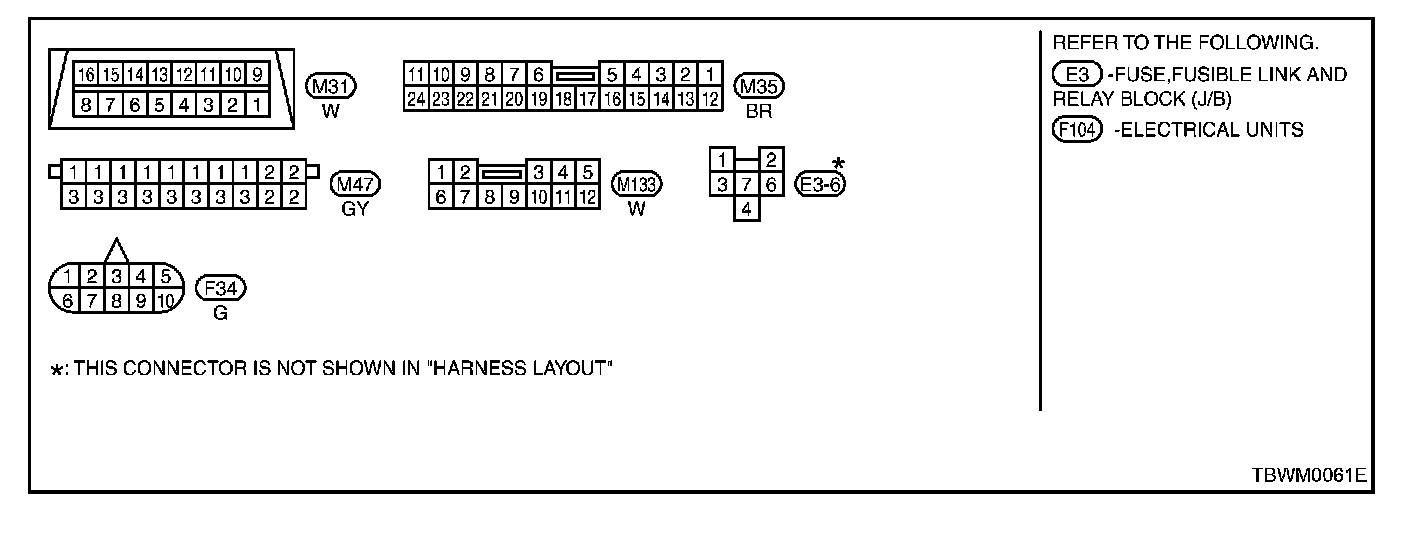

ACS-ASCD-04 Connector Views:

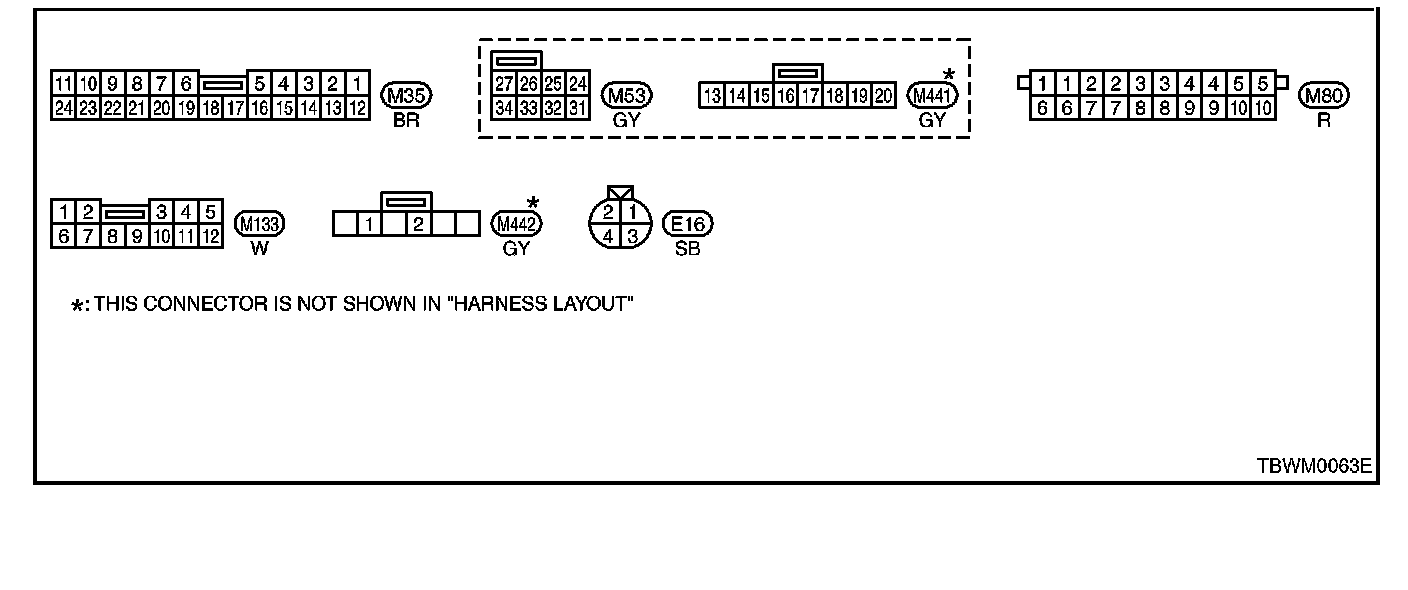

ACS-ASCD-05 Connector Views:
ACS-ASCD-06 Connector Views:
