Component Parts And Harness Connector Location:

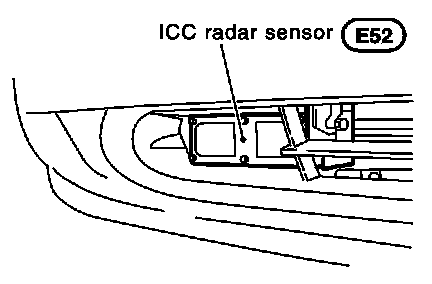

ICC Radar Sensor:

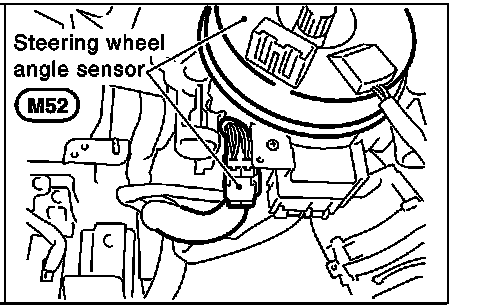

Steering Wheel Angle Sensor:

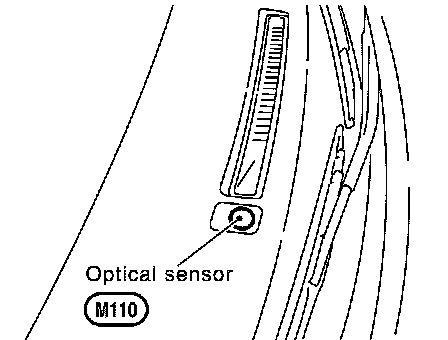

Optical Sensor:
