Multiple Junction Connector

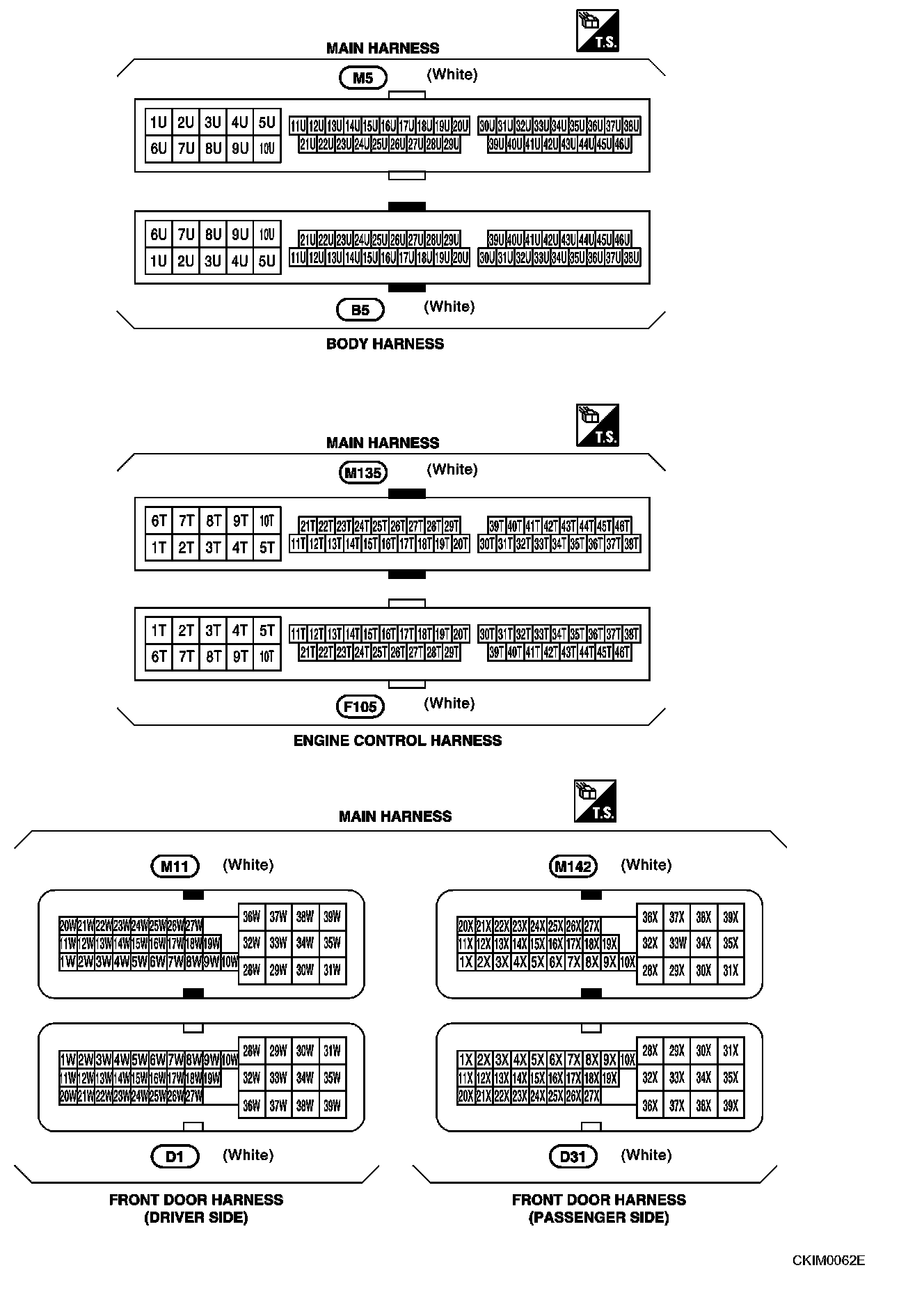

SMJ (Super Multiple Junction) Terminal Arrangement Part 1:
SMJ (Super Multiple Junction) Terminal Arrangement Part 2:
SMJ (Super Multiple Junction) Terminal Arrangement Part 3:
