Home >> Infiniti >> 2002 >> Q45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Wiring Diagram

Wiring Diagram

Wiring Diagram -VDC-

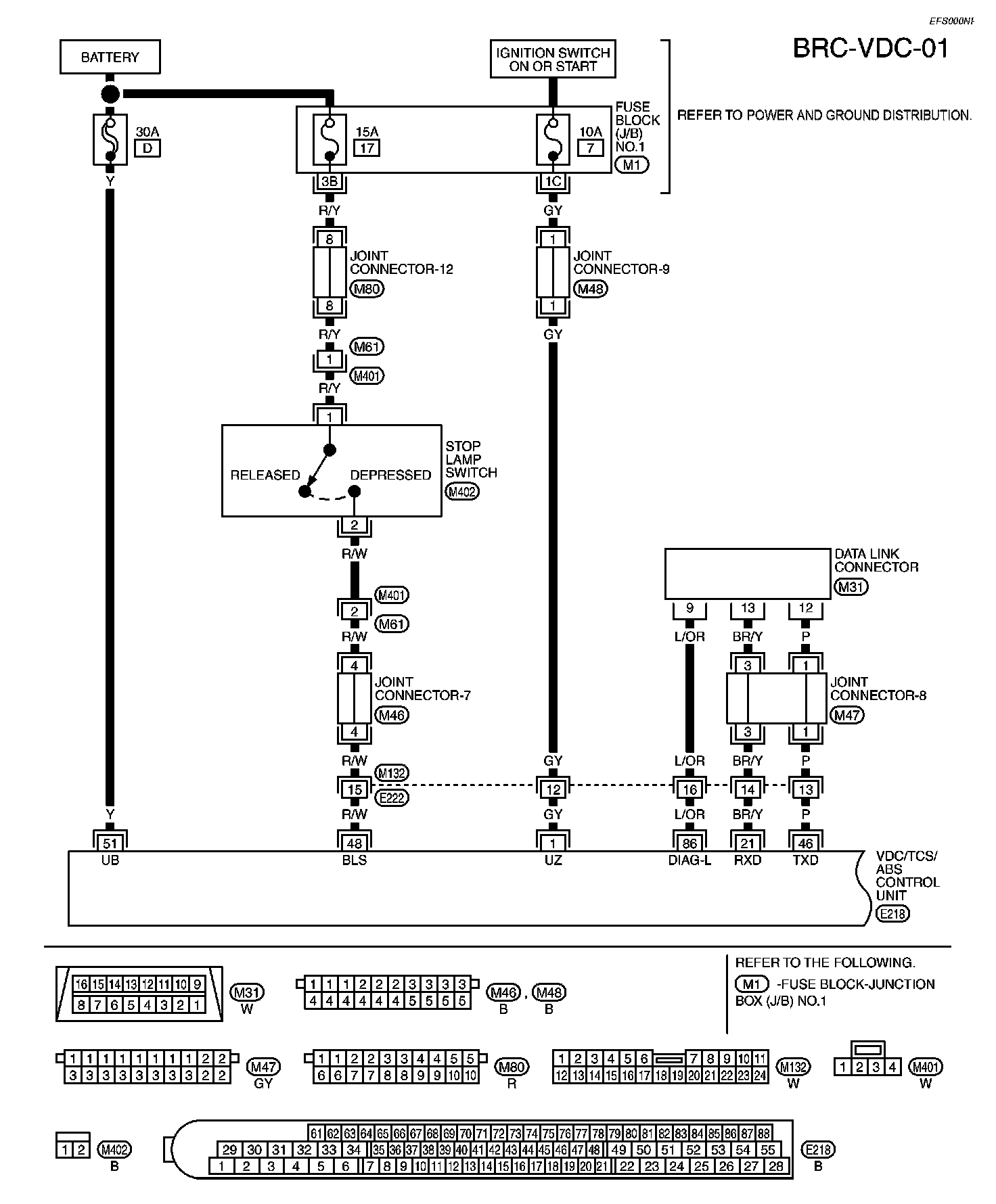

BRC-VDC-01

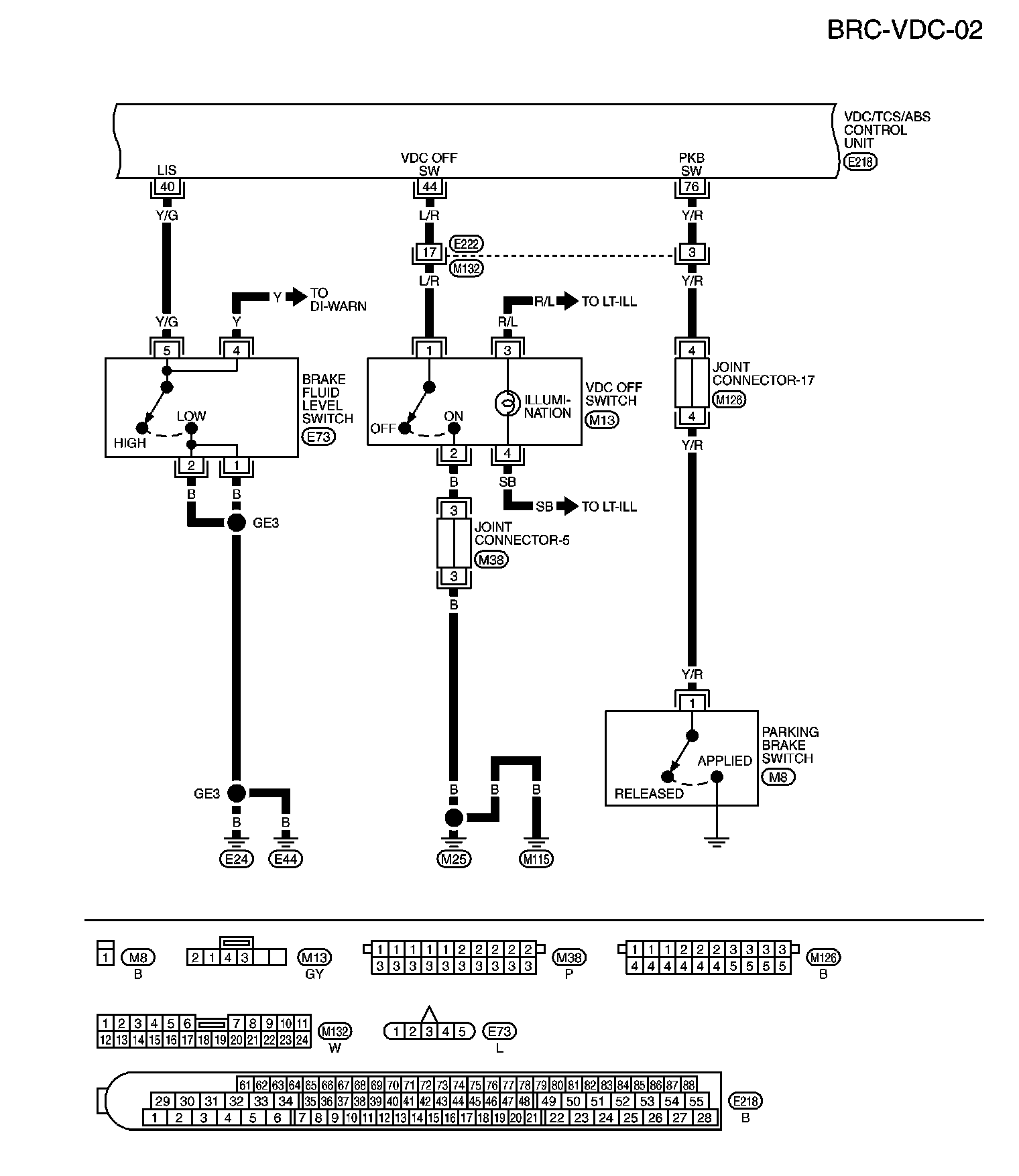

BRC-VDC-02

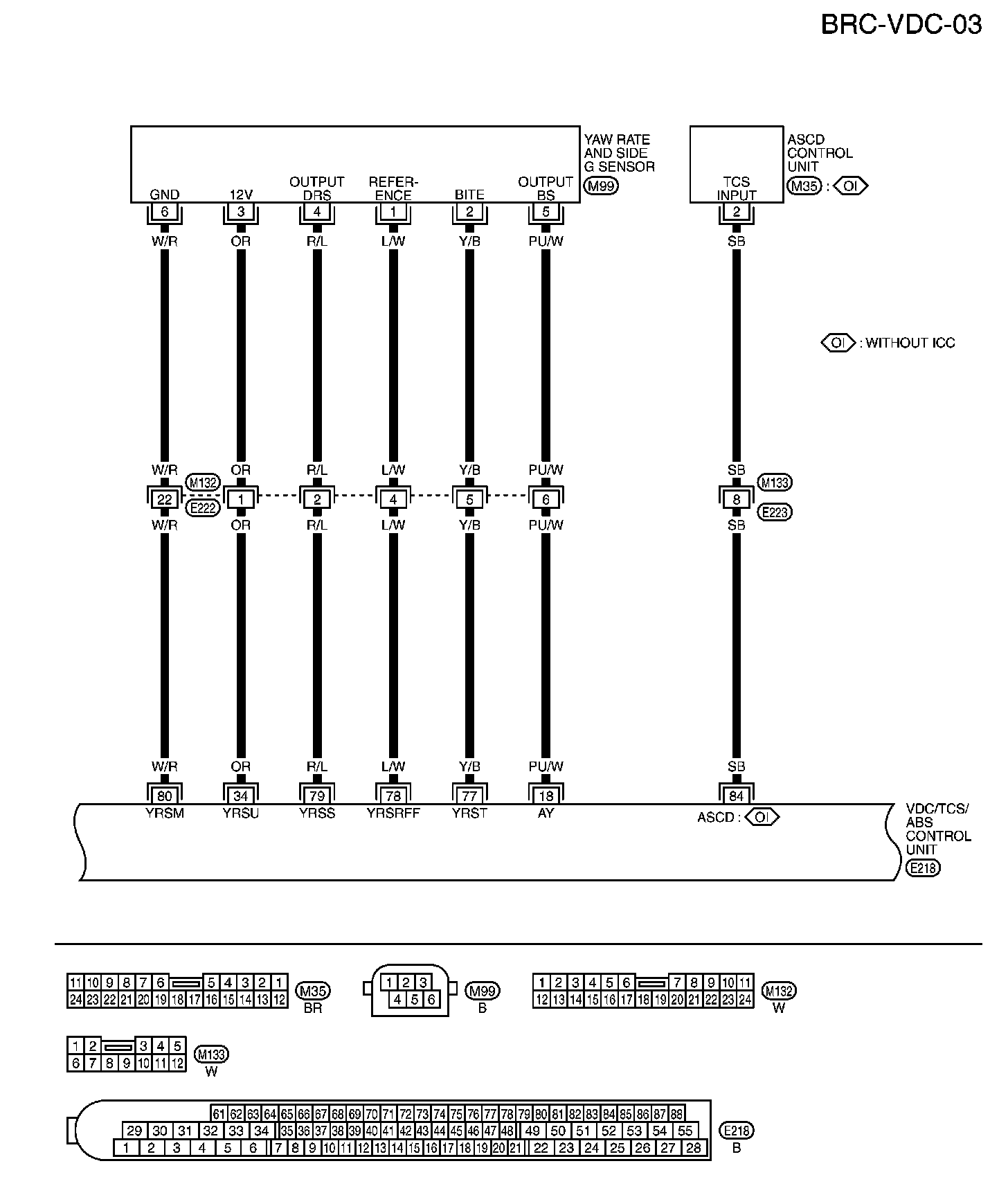

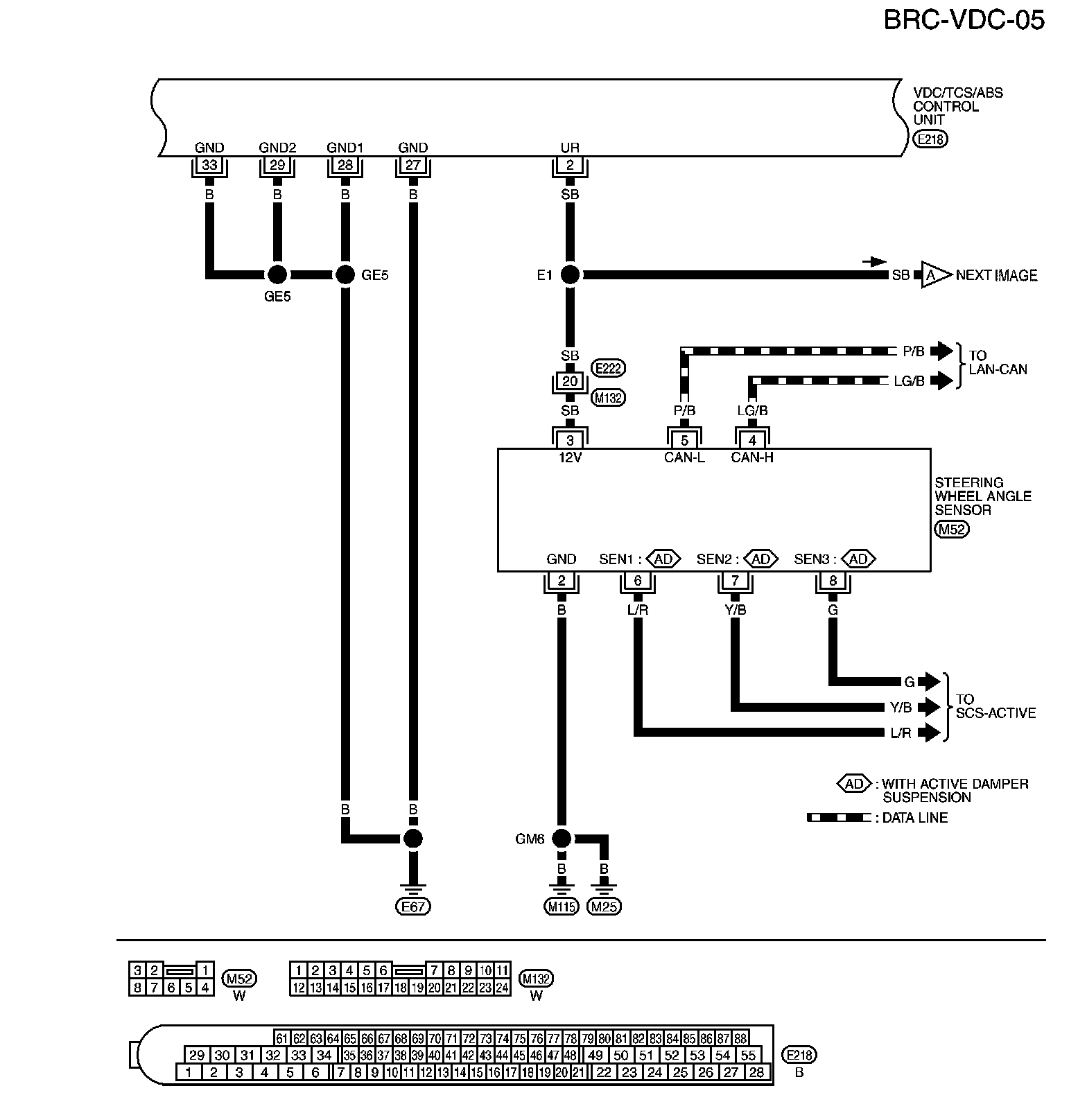

BRC-VDC-03

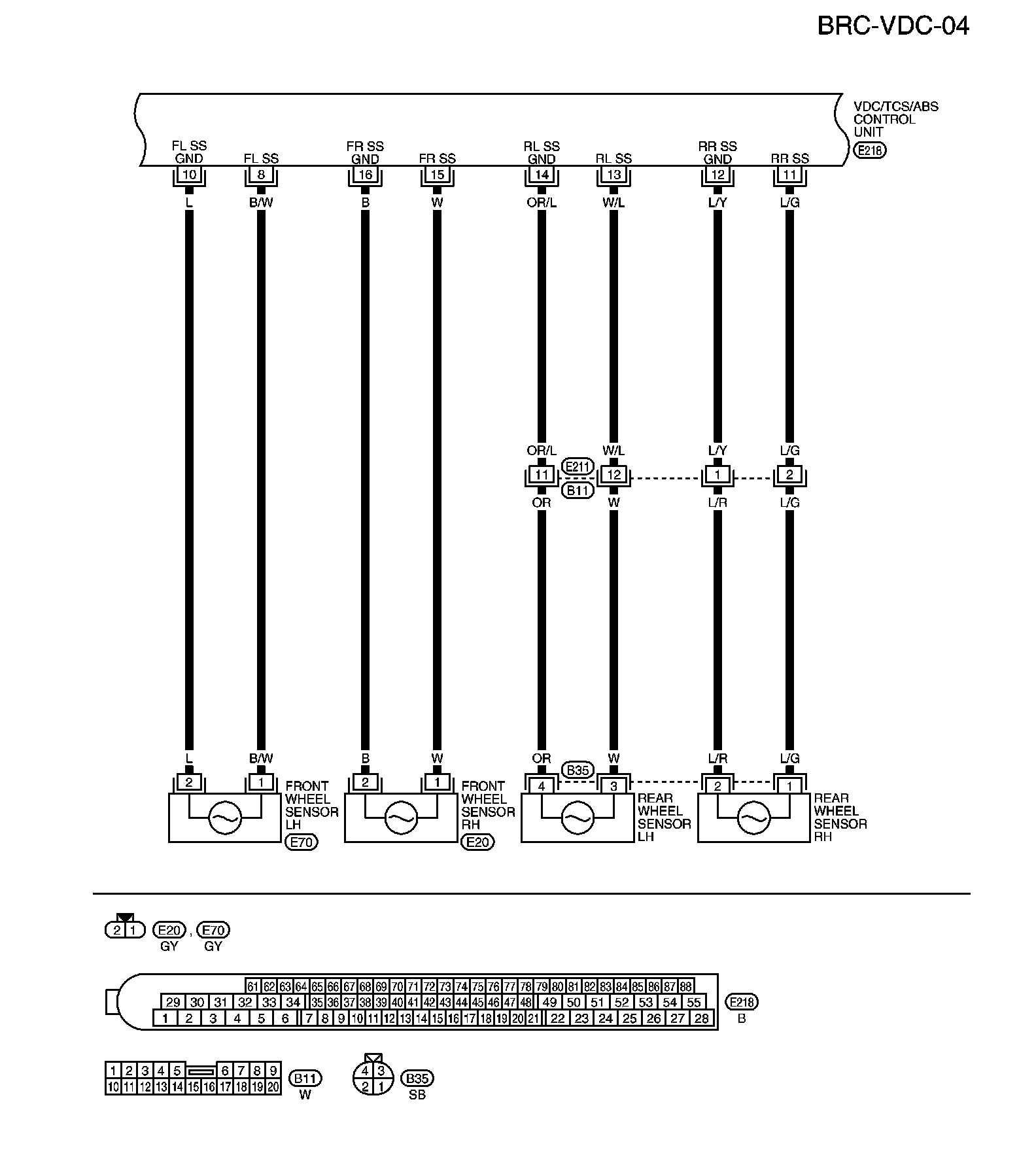

BRC-VDC-04





BRC-VDC-05

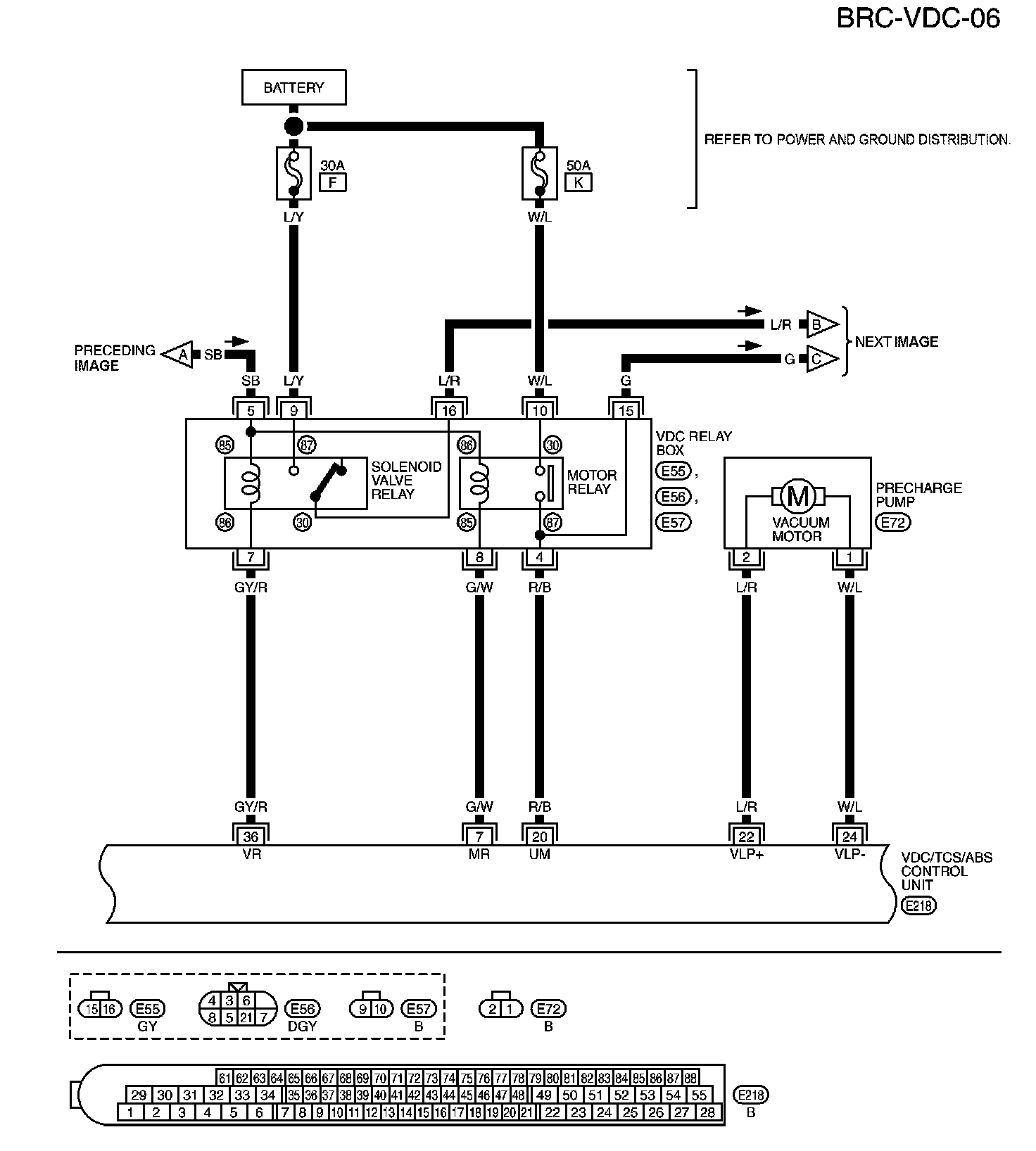

BRC-VDC-06

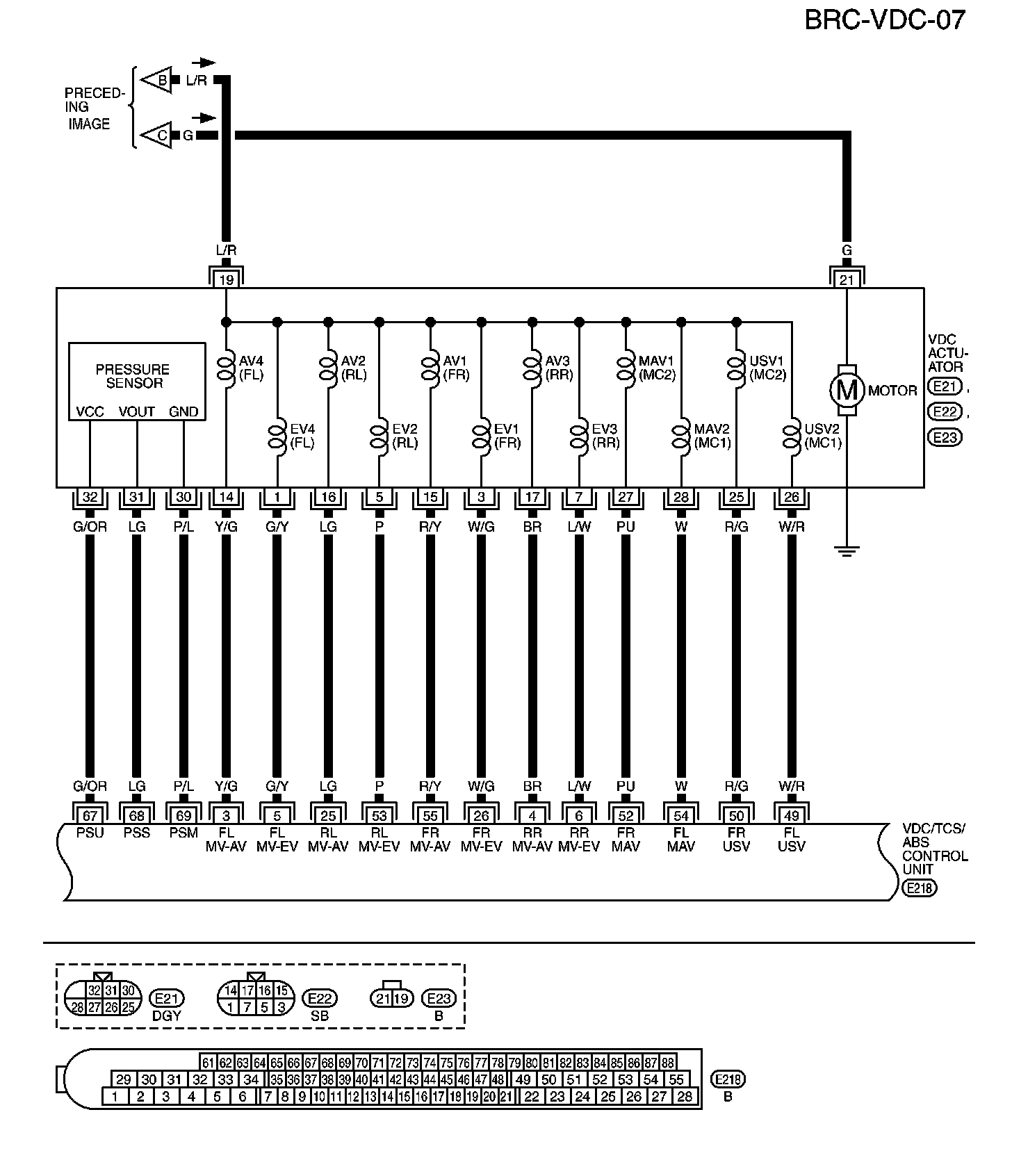

BRC-VDC-07





BRC-VDC-08
