Home >> Infiniti >> 2002 >> Q45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> Headlamp Alignment Control Module

Headlamp Alignment Control Module

LT-H/AIM-01:

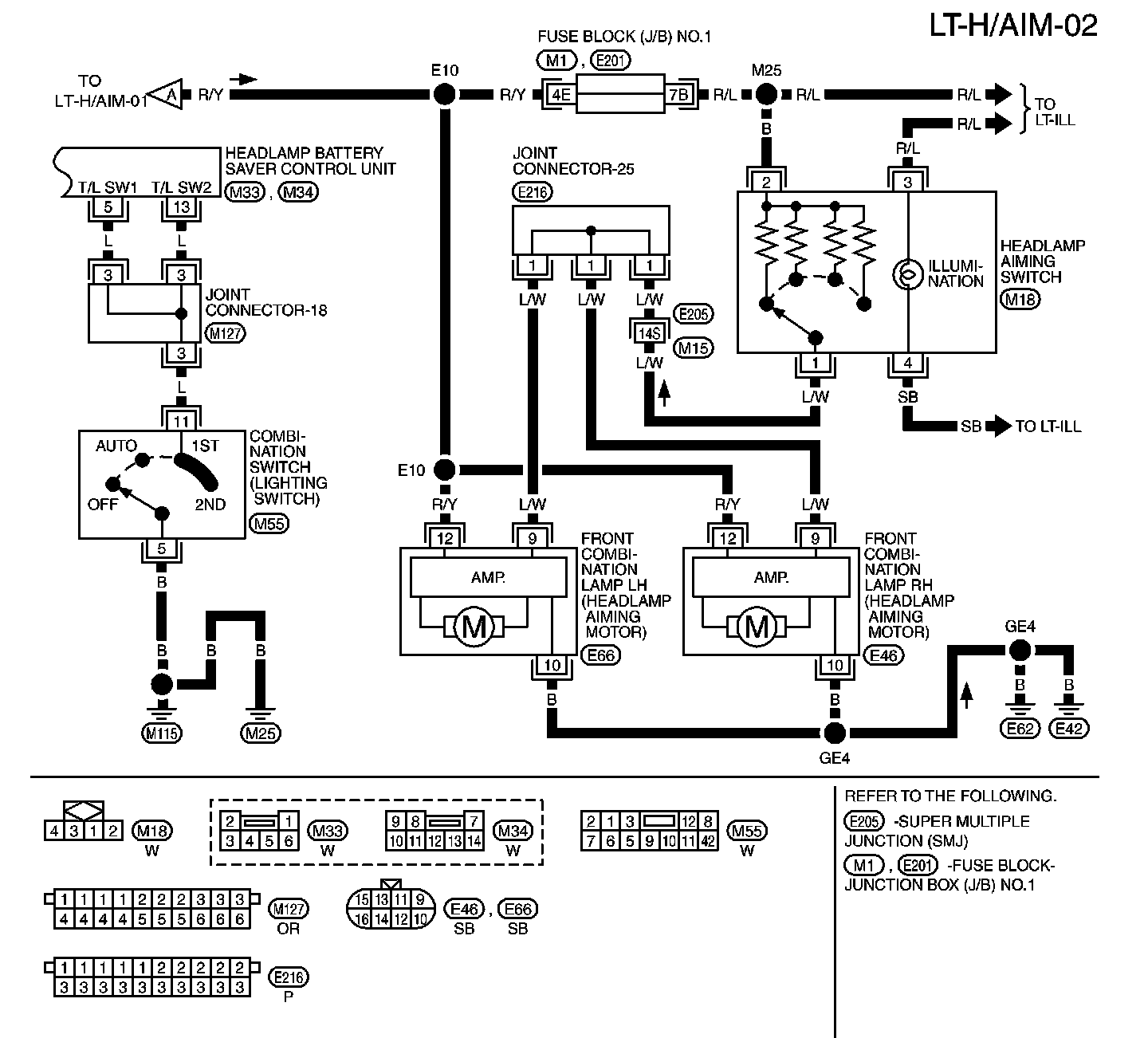

LT-H/AIM-02:
