System Diagram

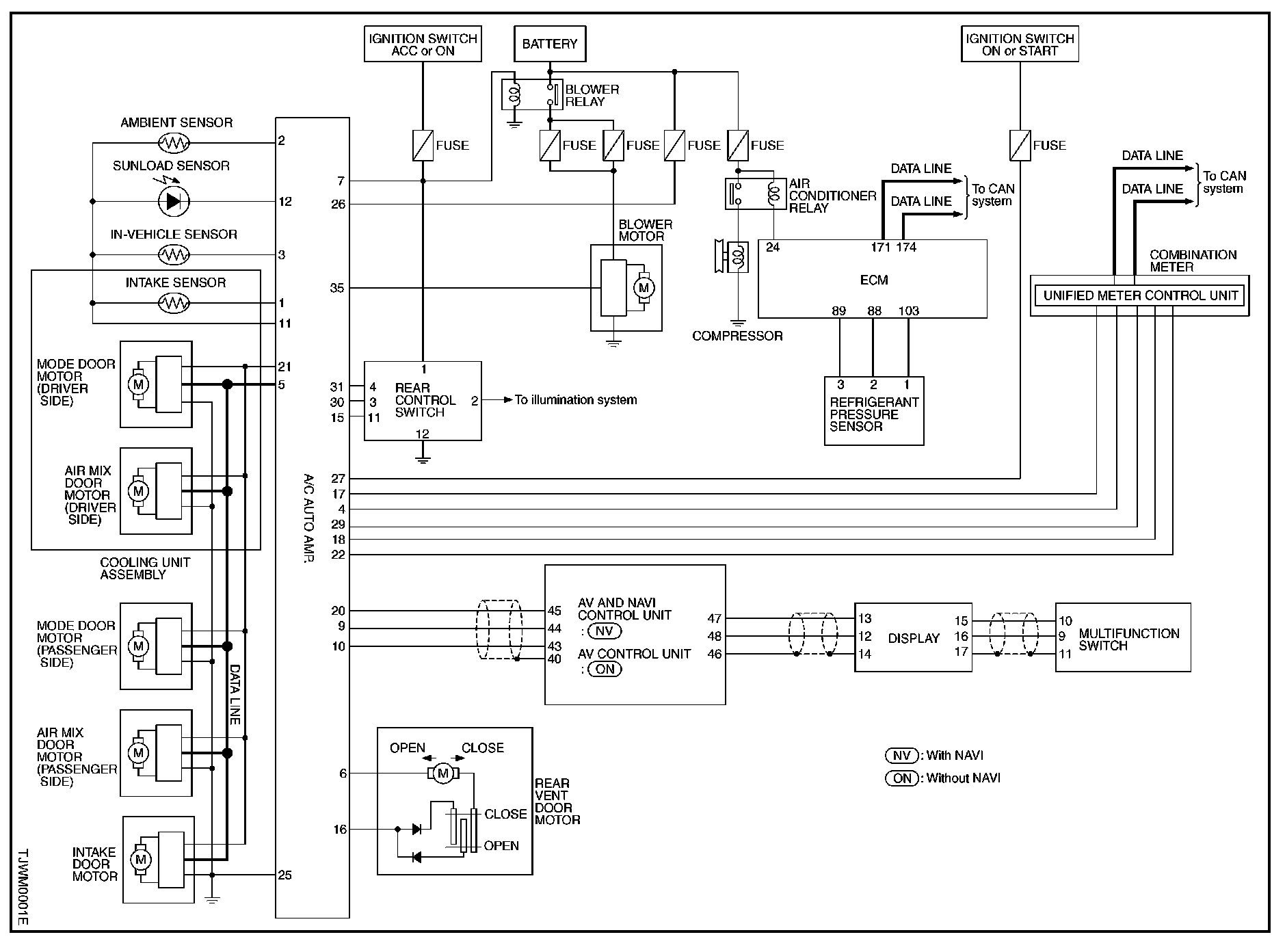

ATC-A/C-01 / Circuit Diagram:



ATC-A/C-01:



ATC-A/C-02:

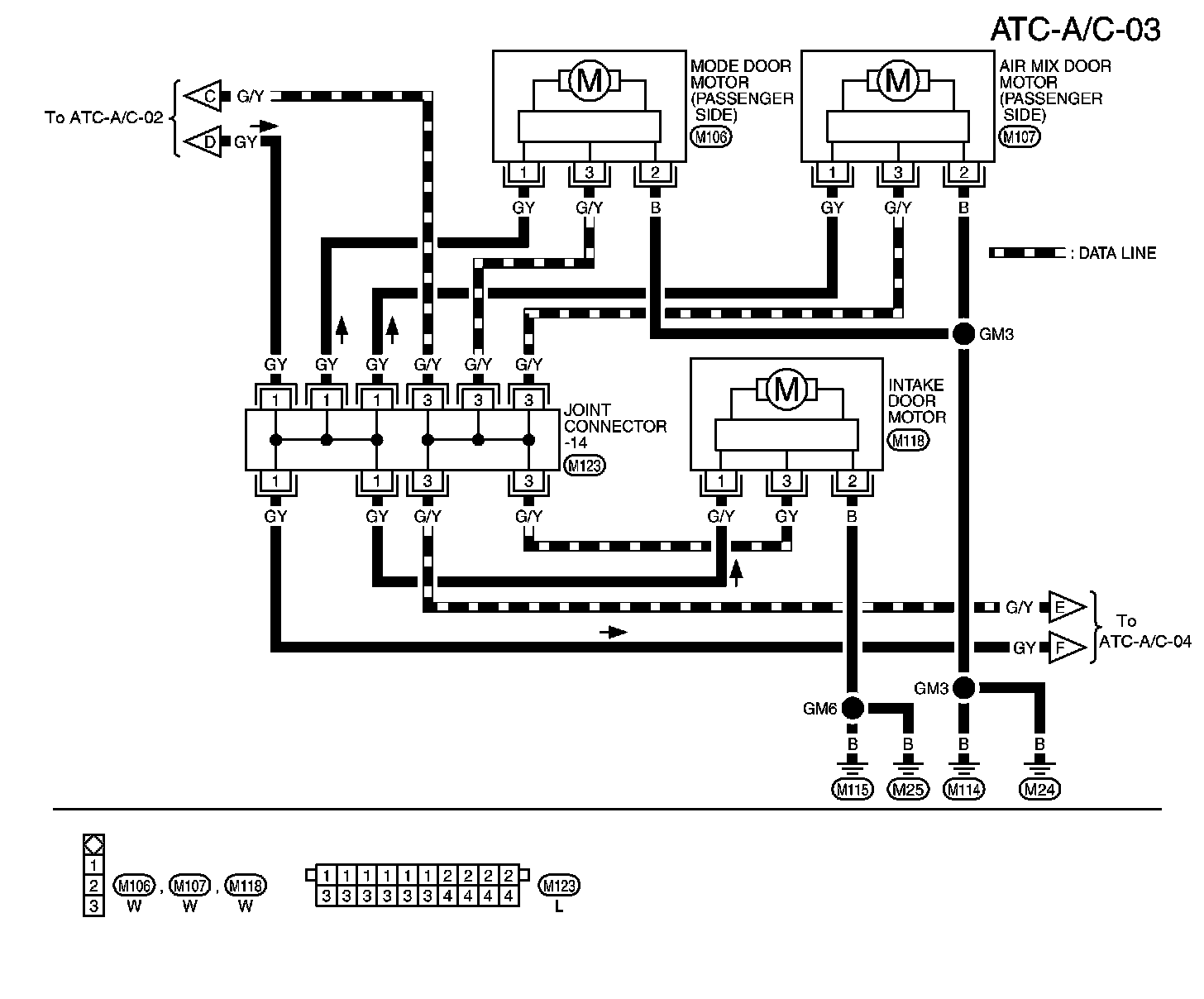

ATC-A/C-03:



ATC-A/C-04:



ATC-A/C-05:

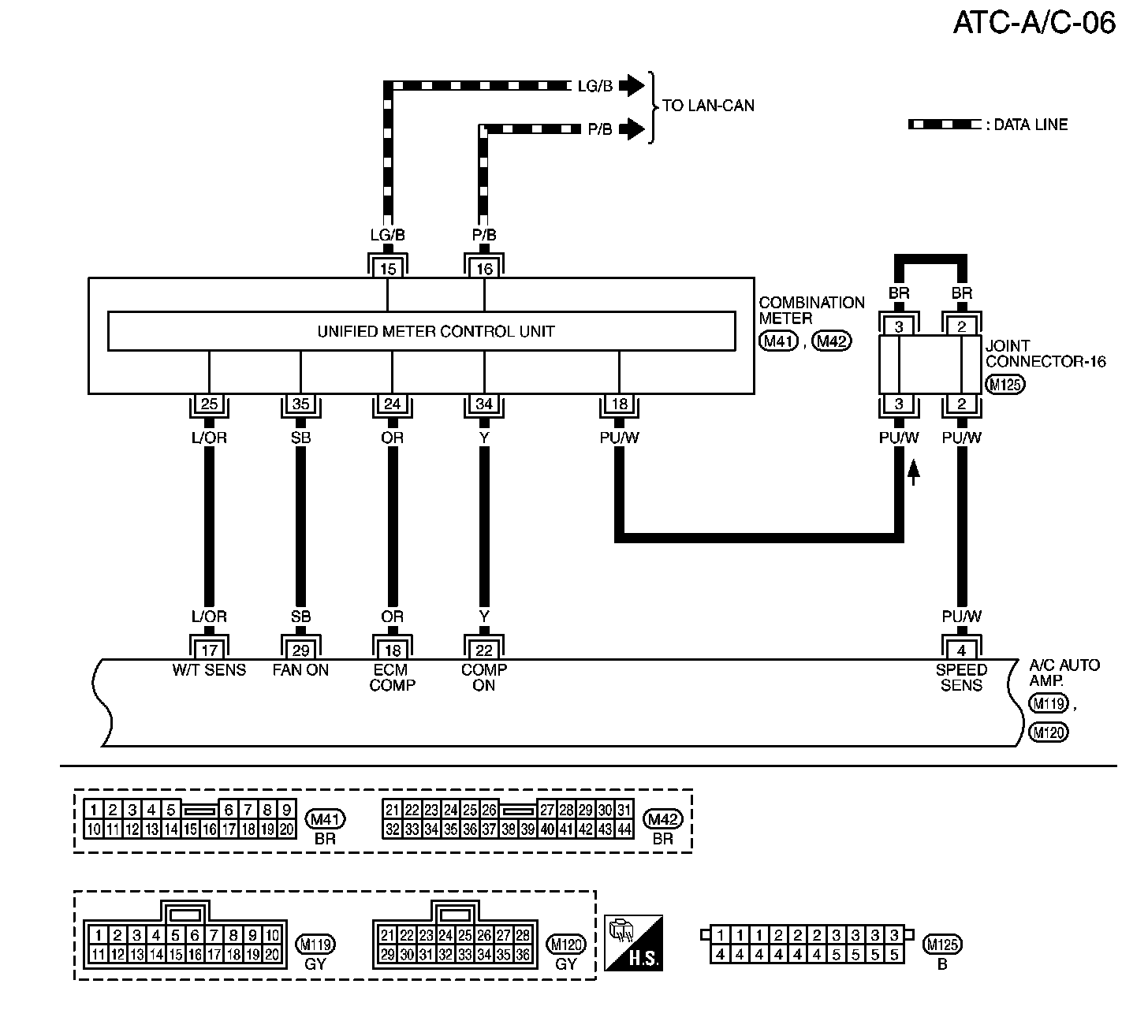

ATC-A/C-06:

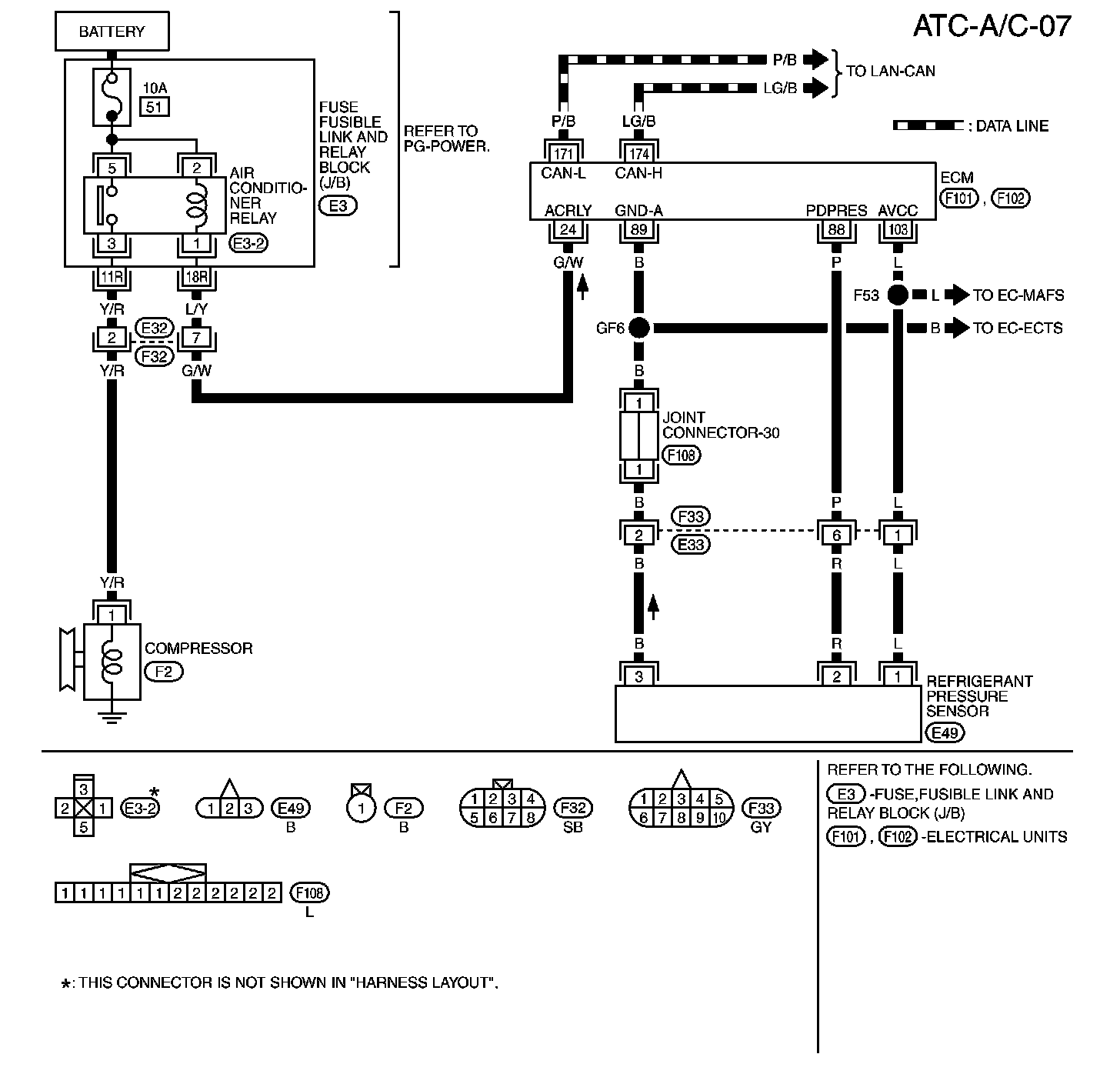

ATC-A/C-07:

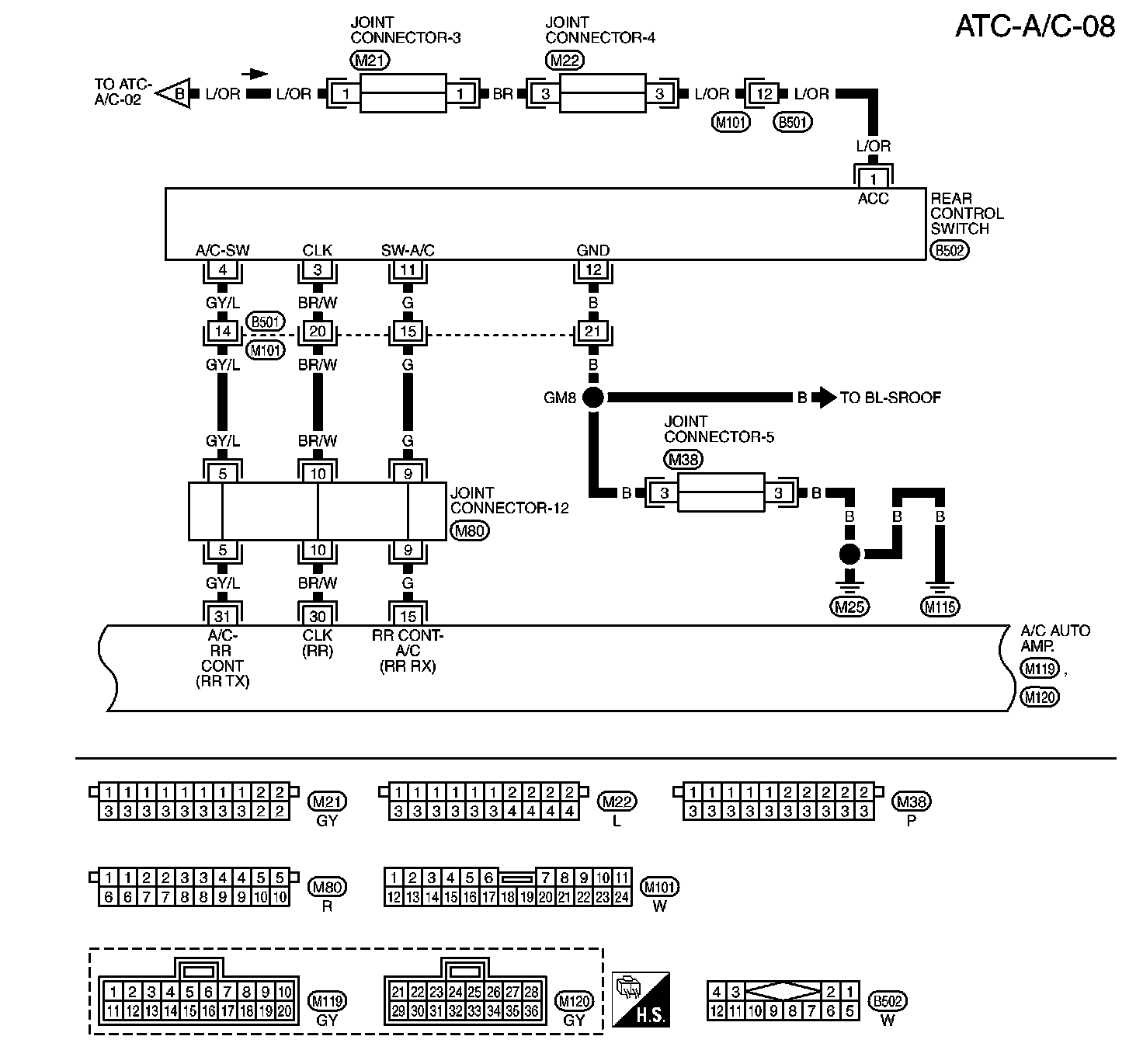

ATC-A/C-08:



ATC-A/C-09:



ATC-A/C-10:
