Driver/Vehicle Information Display

DI-INF/D - Vehicle Information And Integrated Switch System Schematic:

DI-INF/D - AV Communication Line Circuit Diagram (without Navigation System):

DI-INF/D-09 - With Navigation:

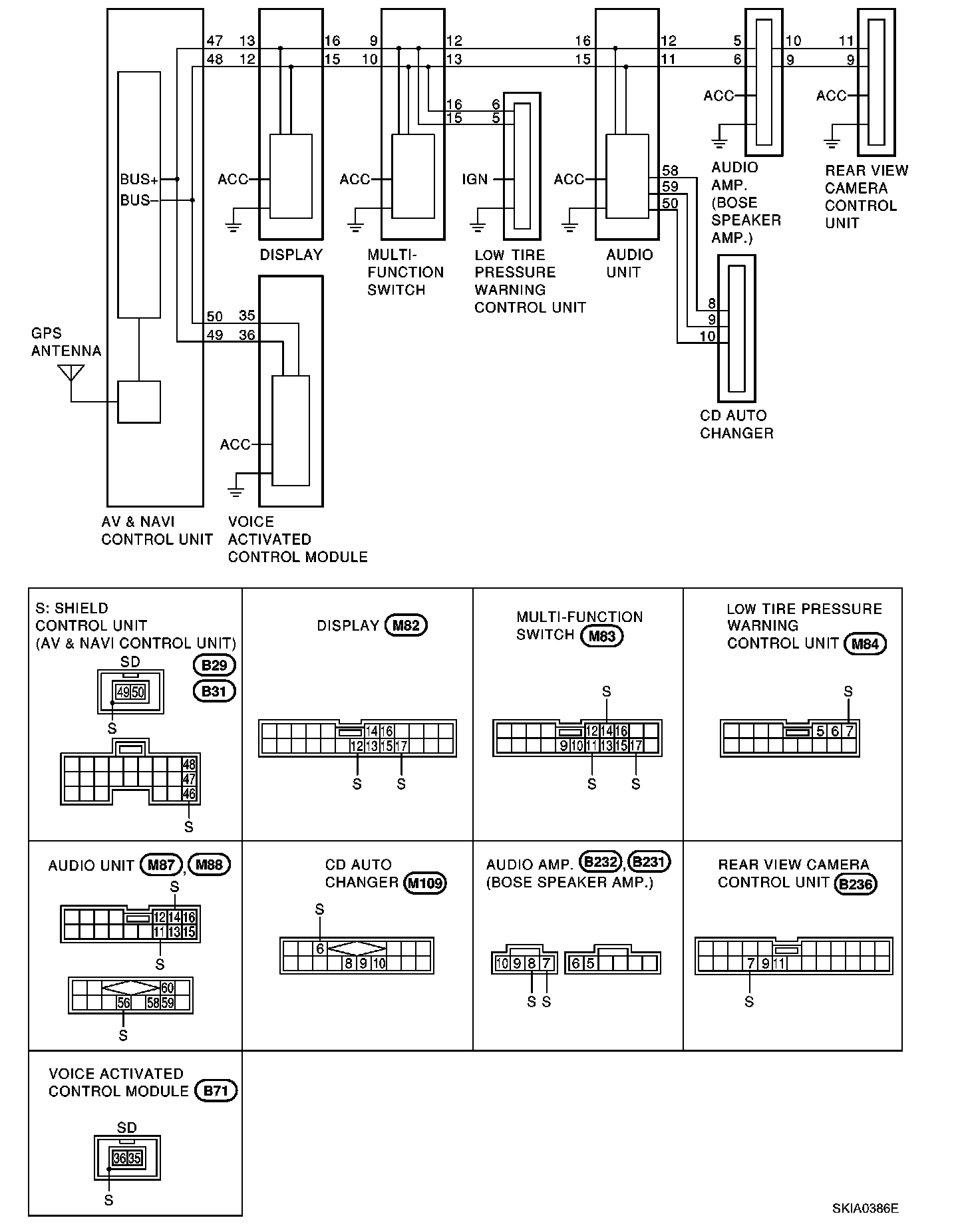

DI-INF/D - AV Communication Line Circuit Diagram (With Navigation System):

DI-INF/D-01 - Without Navigation:

DI-INF/D-10 - With Navigation:

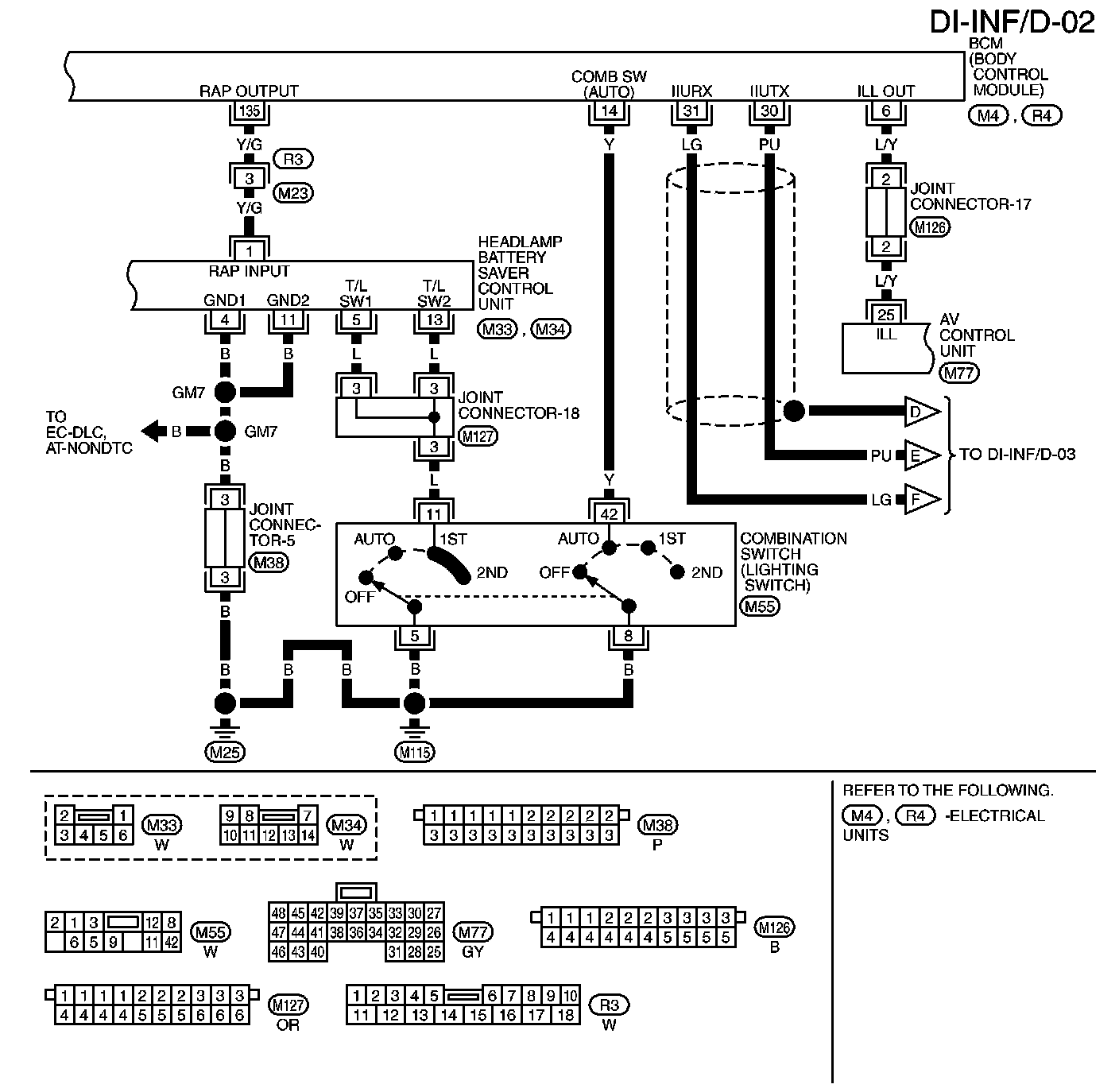

DI-INF/D-02 - Without Navigation:

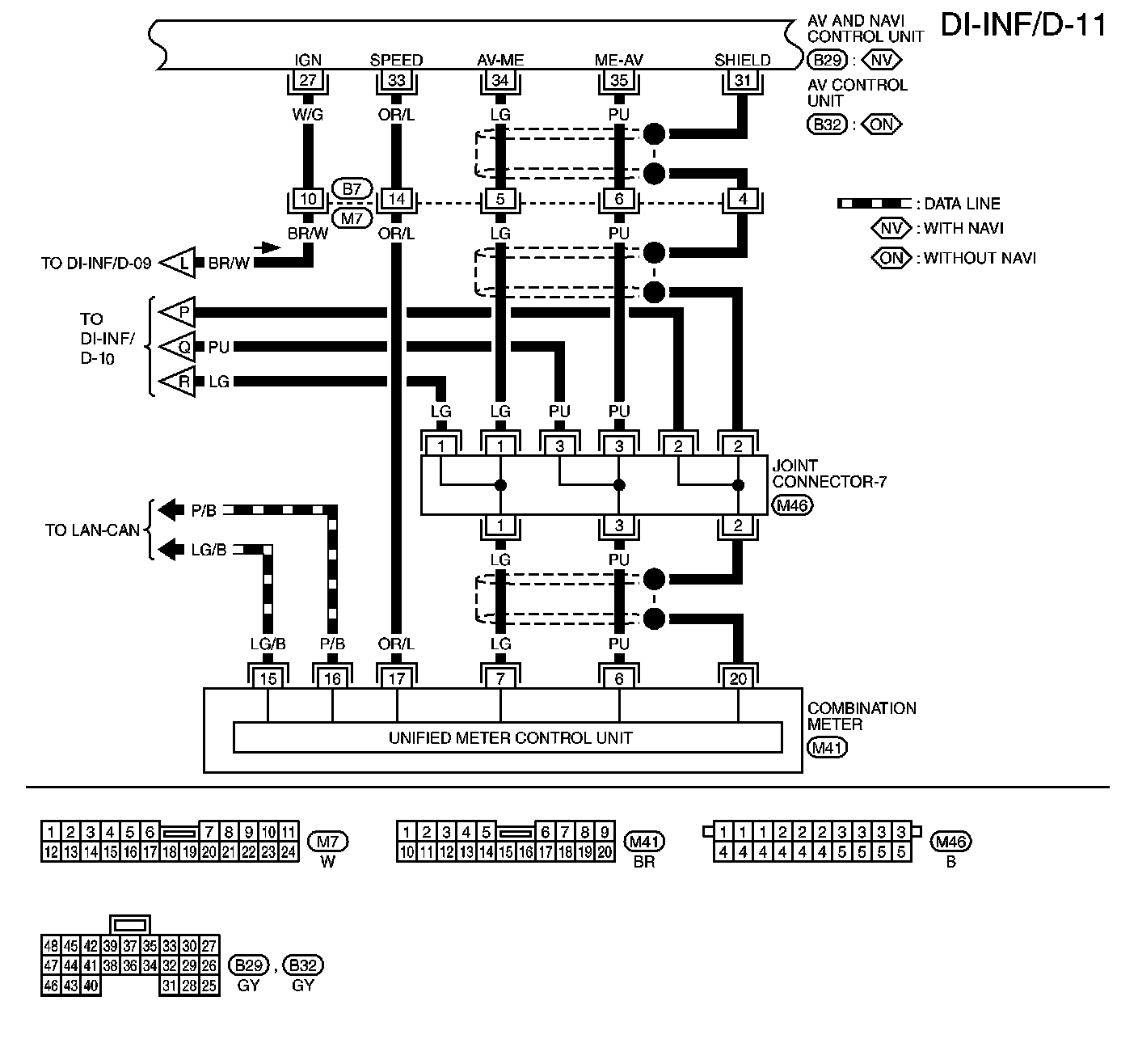

DI-INF/D-11 - With Navigation:

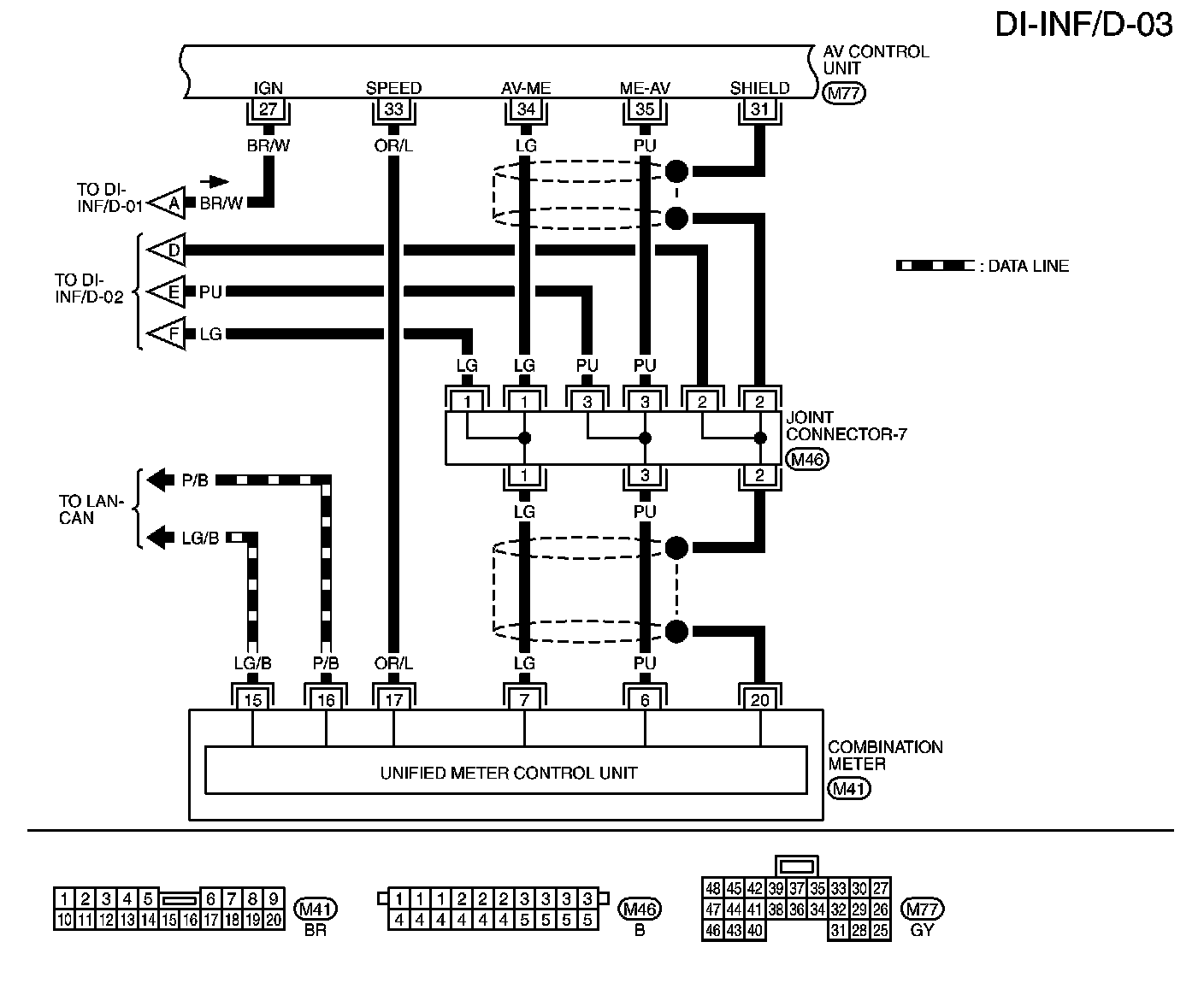

DI-INF/D-03 - Without Navigation:

DI-INF/D-12 - With Navigation:

DI-INF/D-04 - Without Navigation:

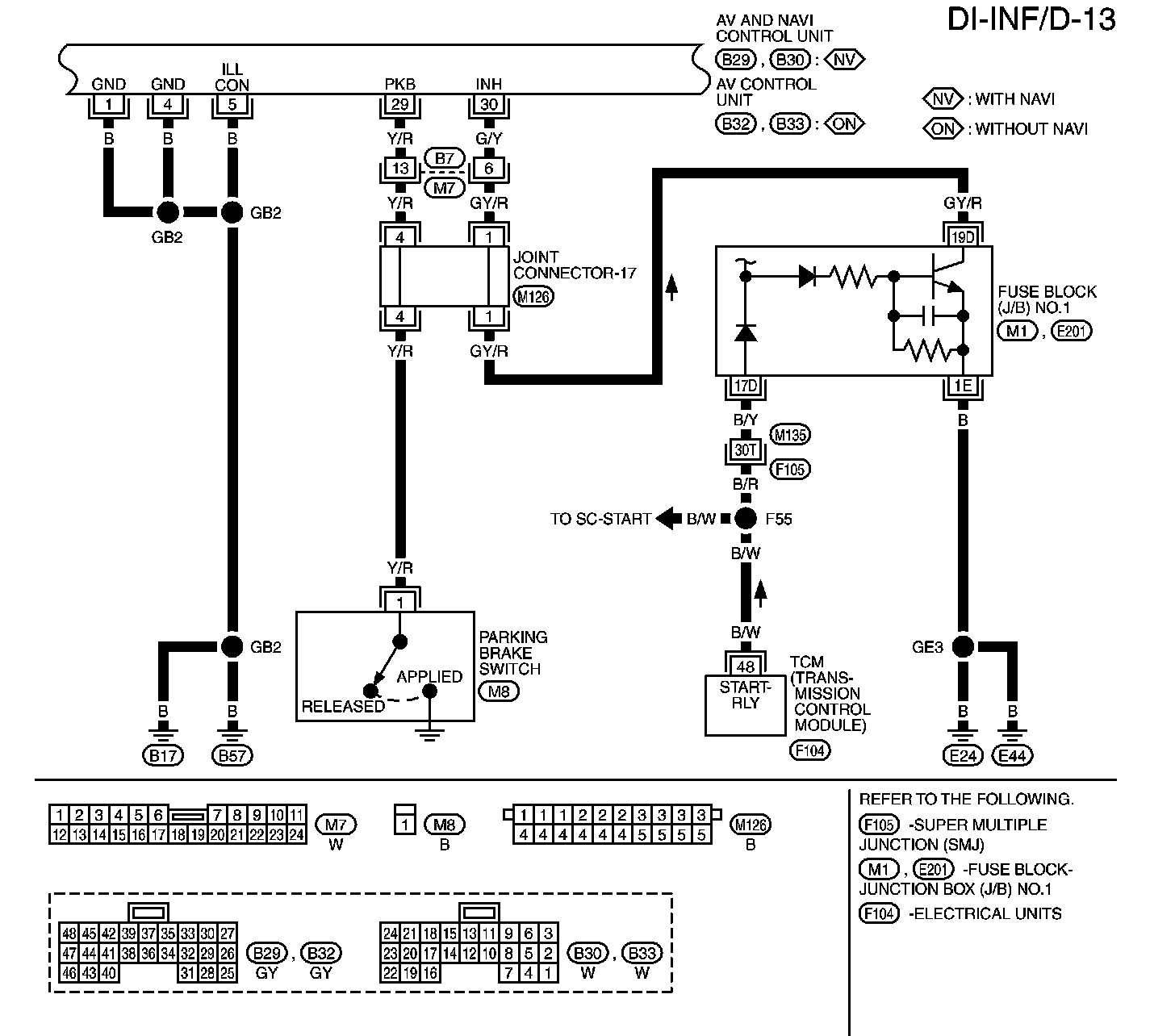

DI-INF/D-13 - With Navigation:

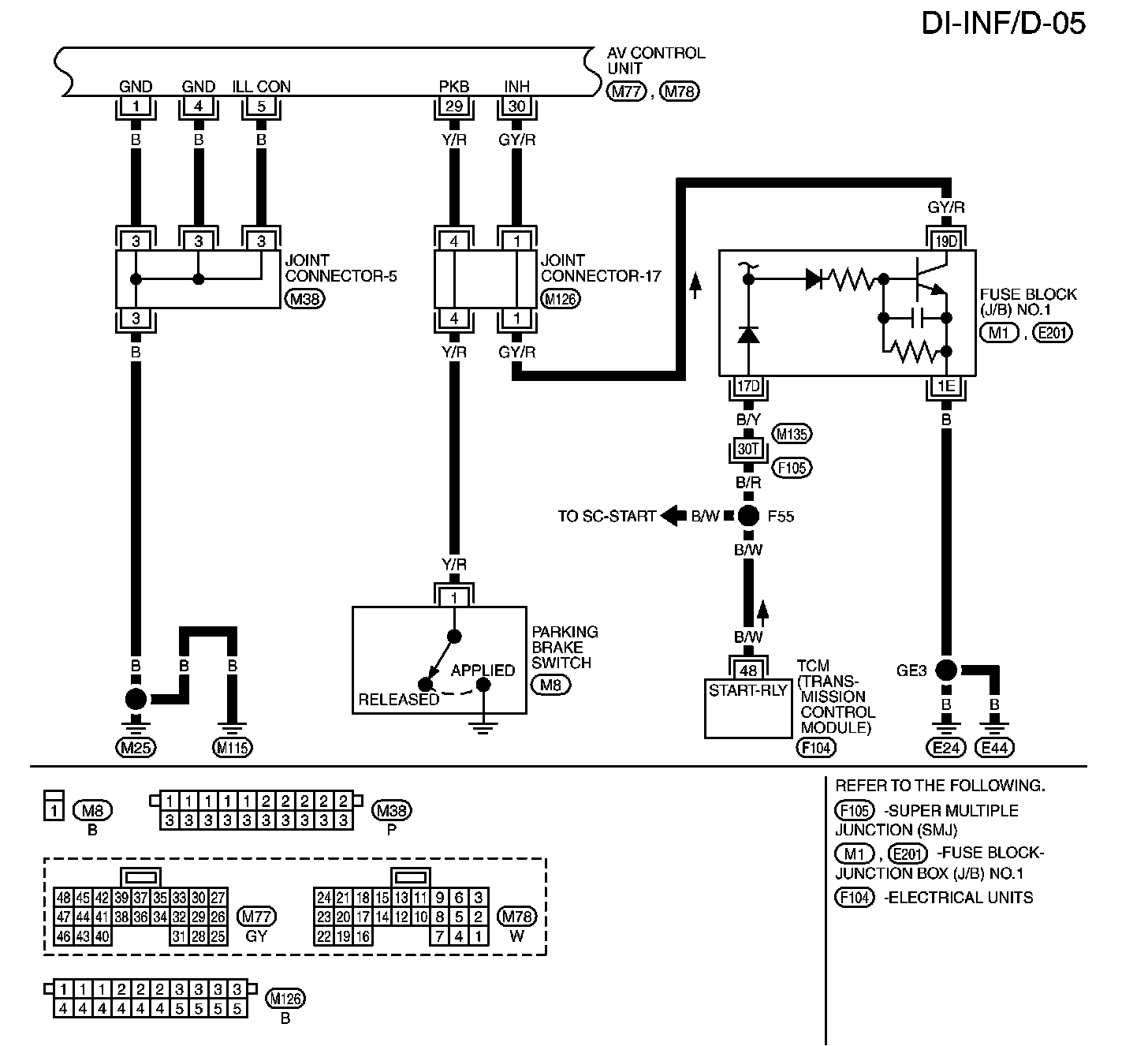

DI-INF/D-05 - Without Navigation:

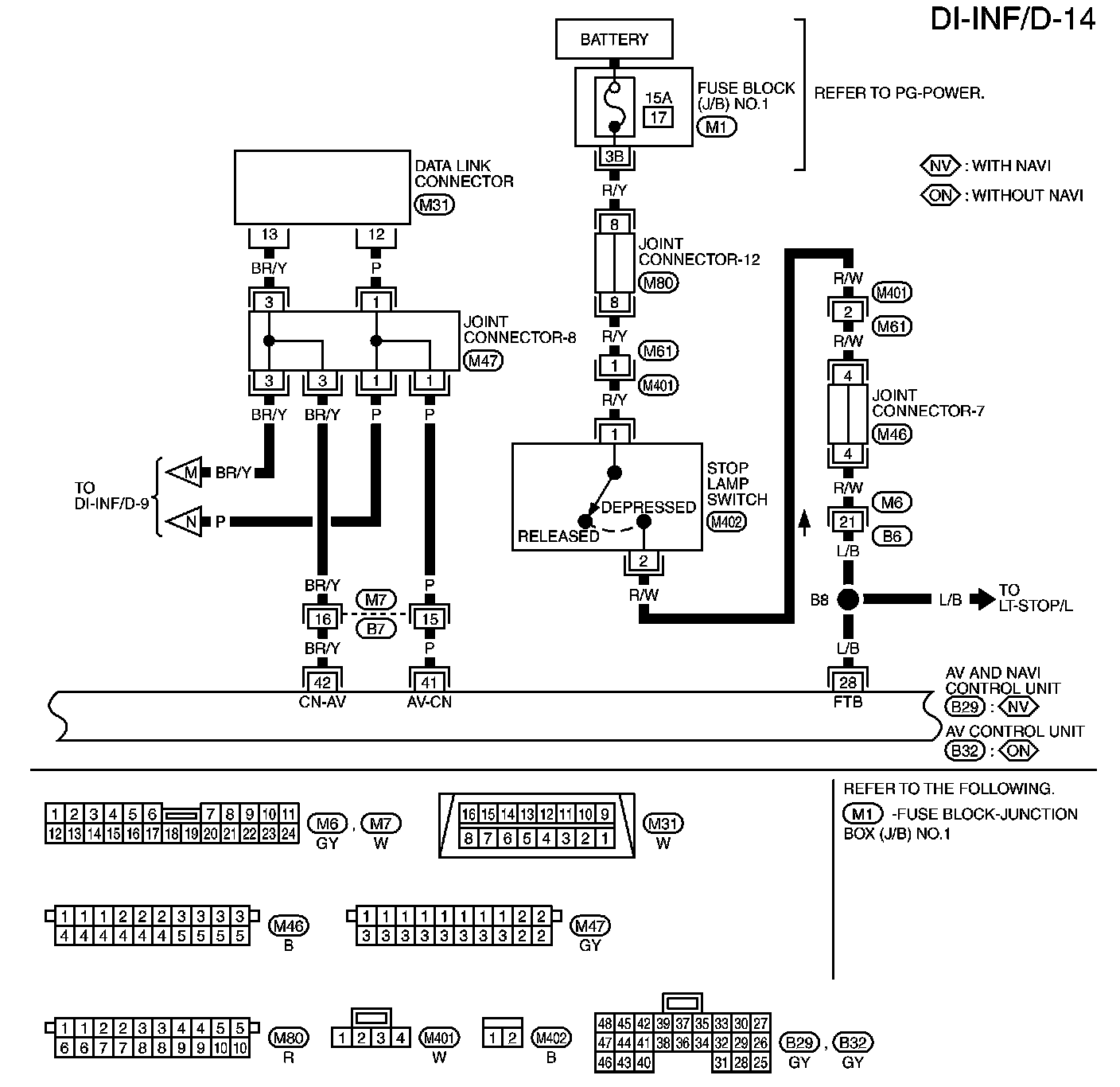

DI-INF/D-14 - With Navigation:

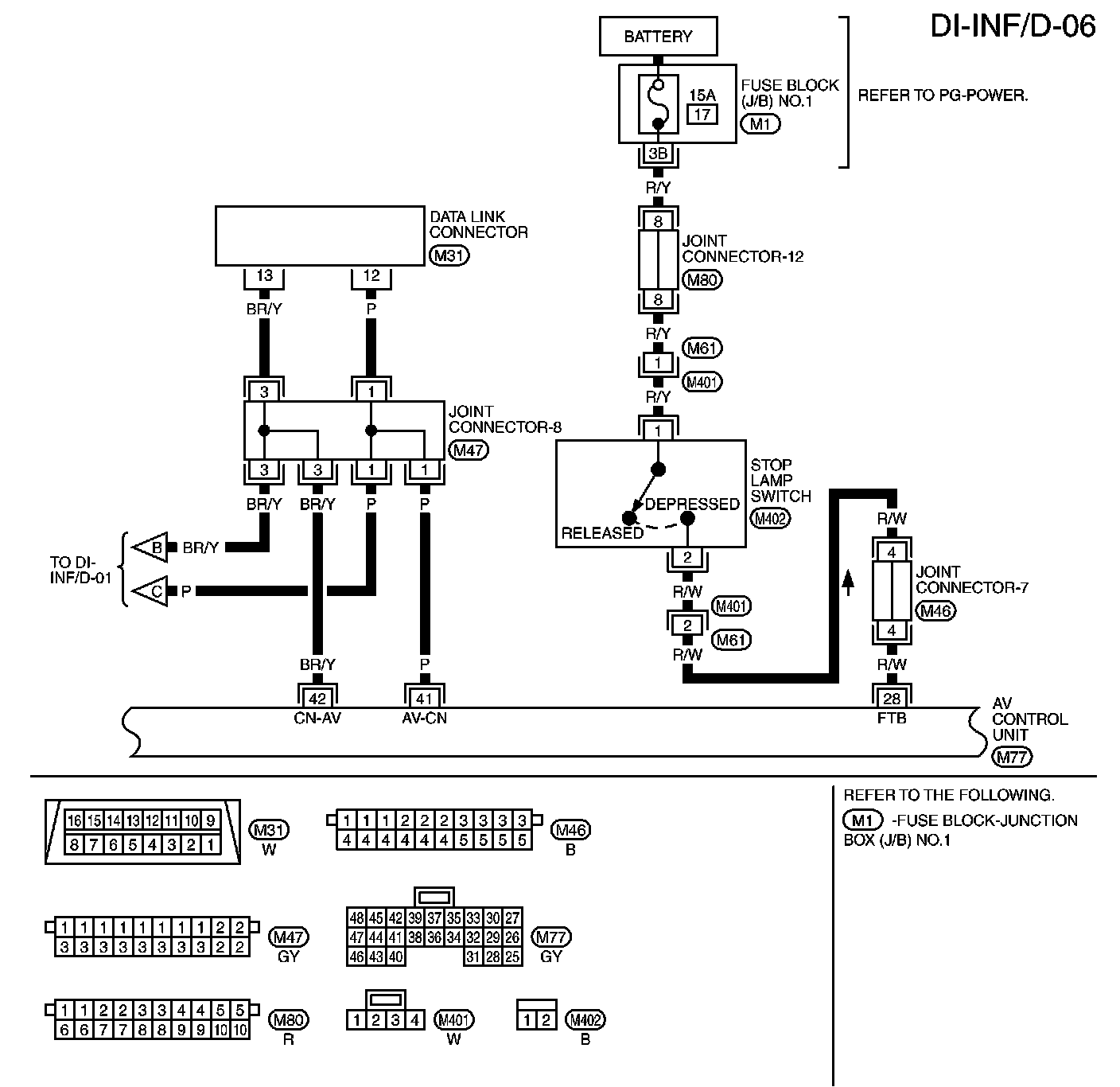

DI-INF/D-06 - Without Navigation:

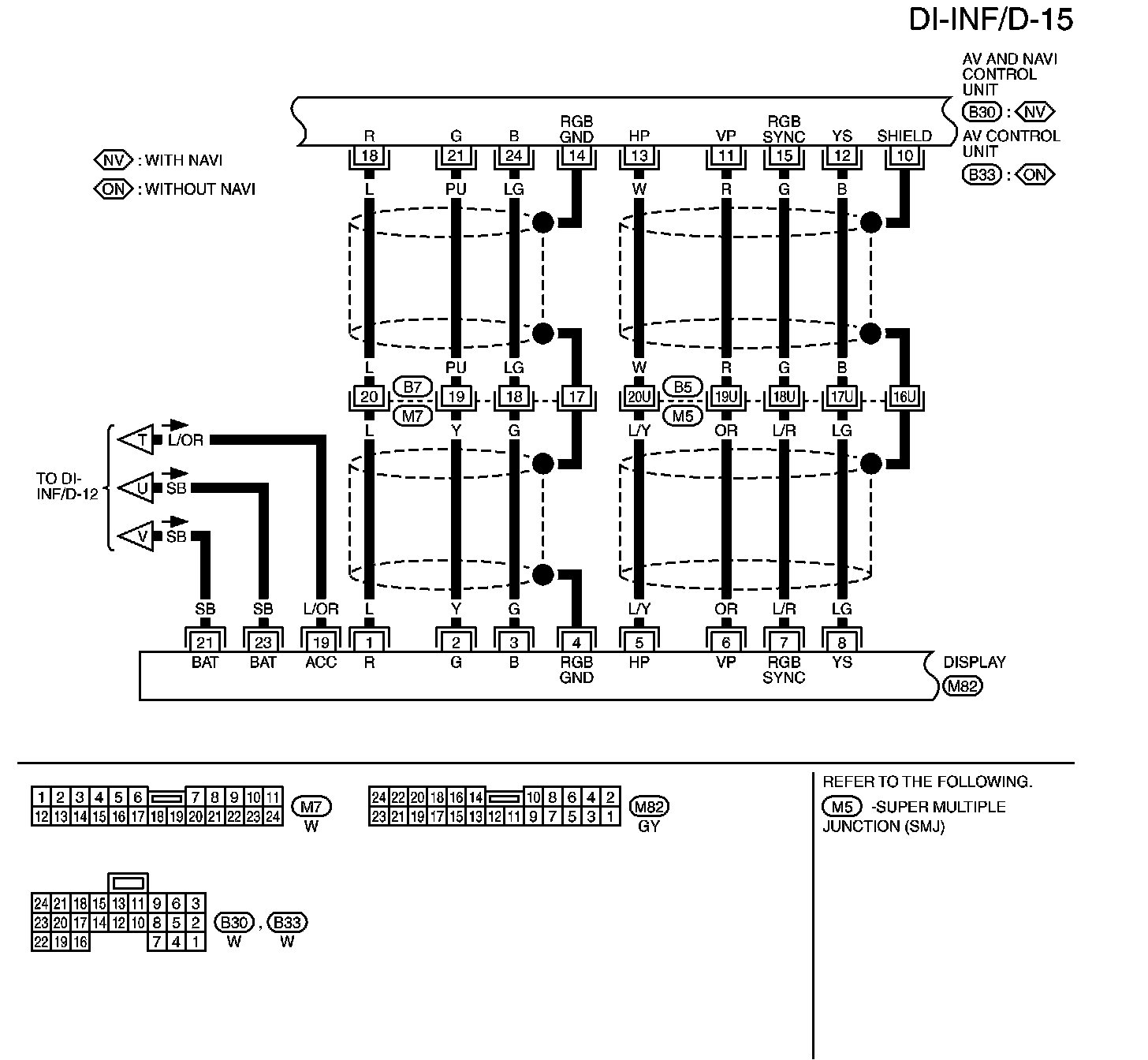

DI-INF/D-15 - With Navigation:

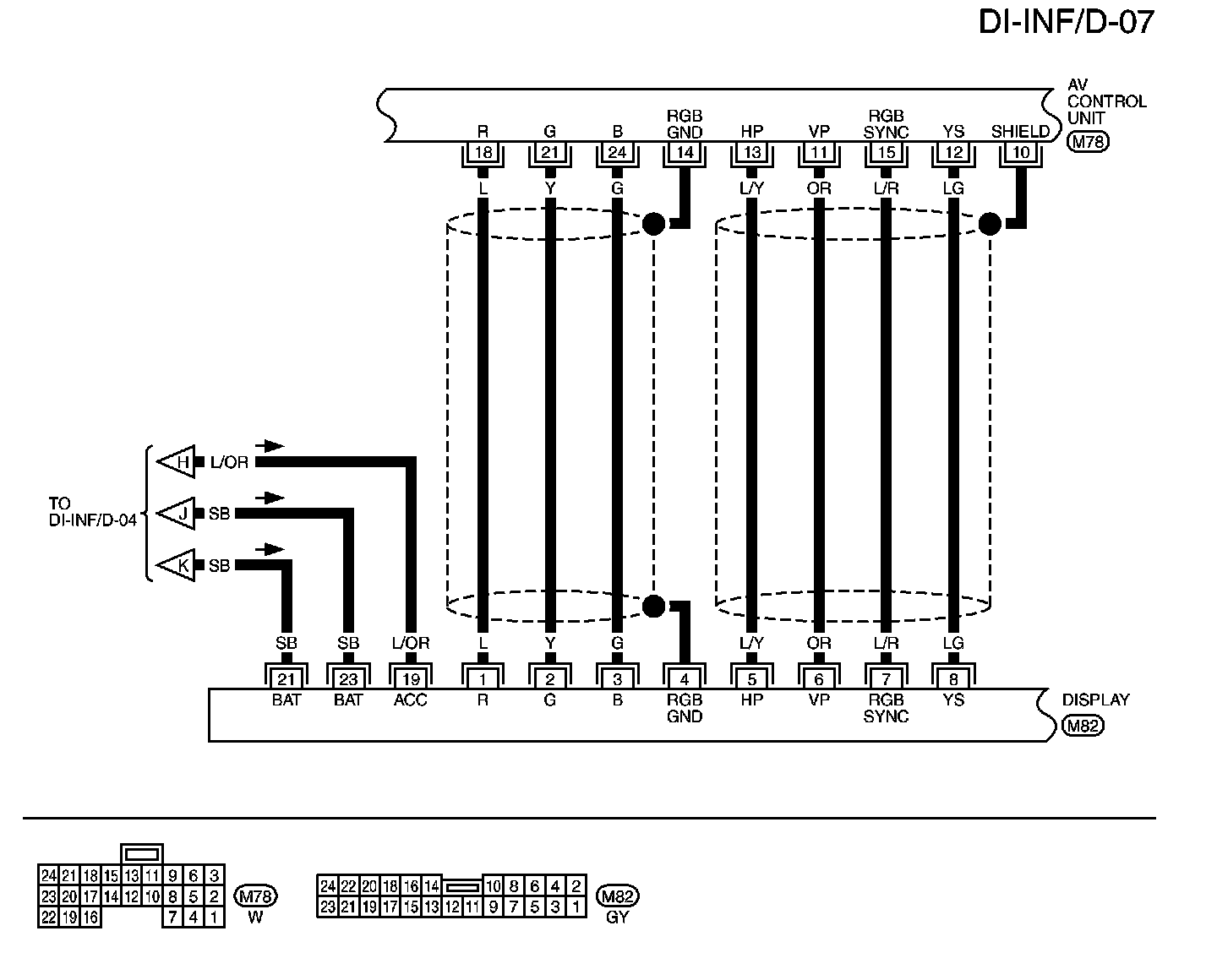

DI-INF/D-07 - Without Navigation:

DI-INF/D-16 - With Navigation:

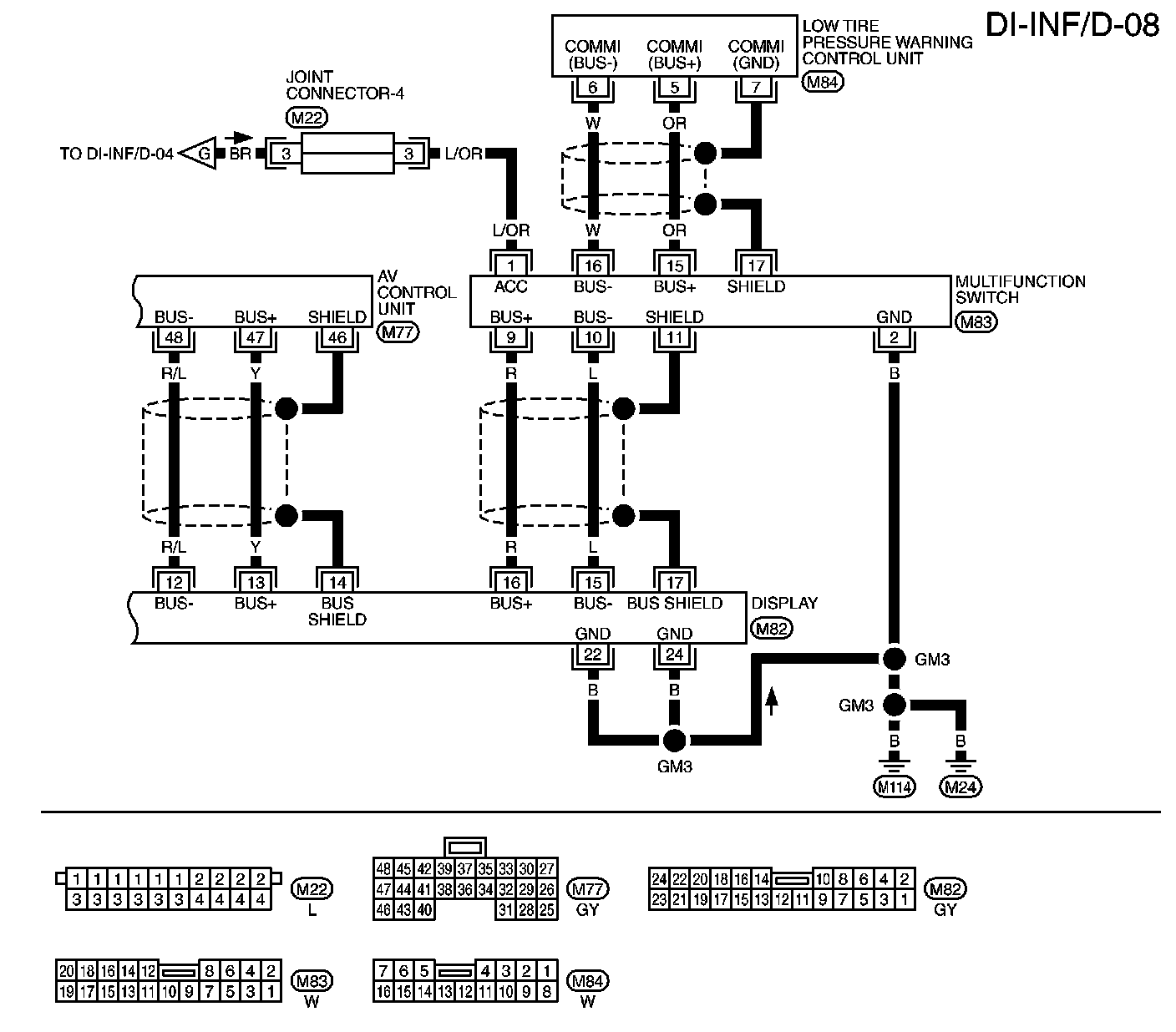

DI-INF/D-08 - Without Navigation:
