BL-KEYLES

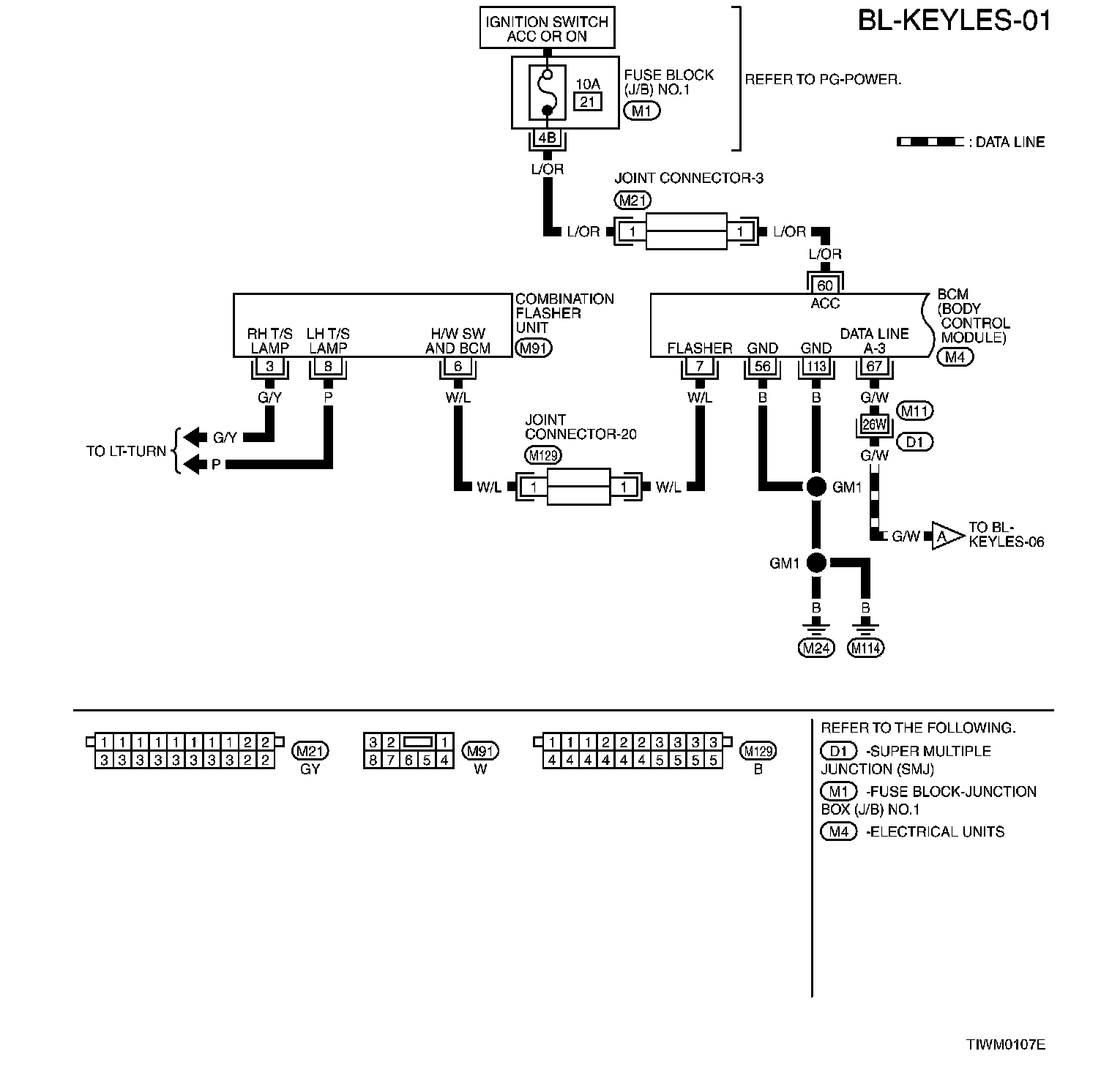

BL-KEYLES-01:



BL - Remote Keyless Entry System - Schematic:

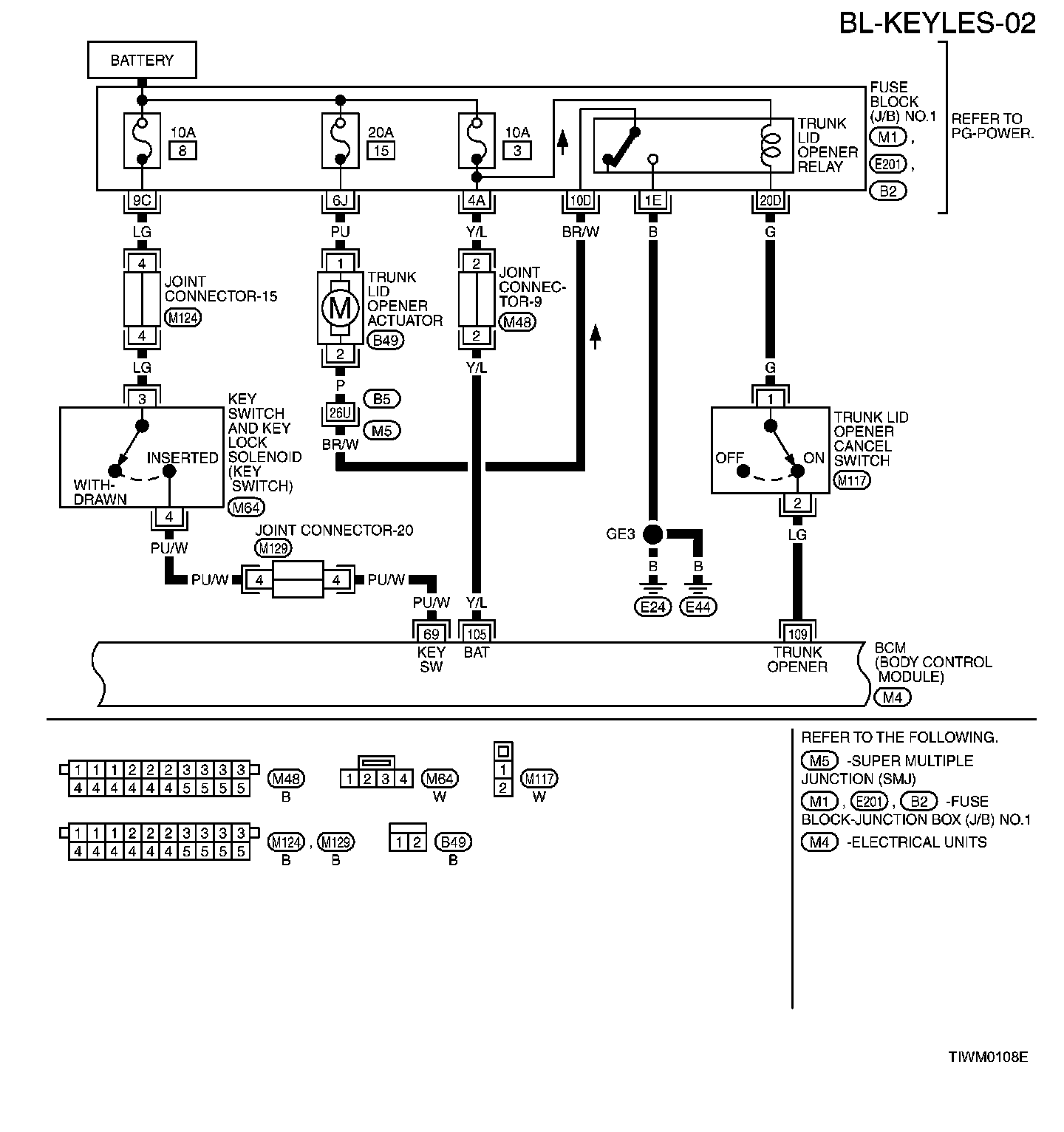

BL-KEYLES-02:

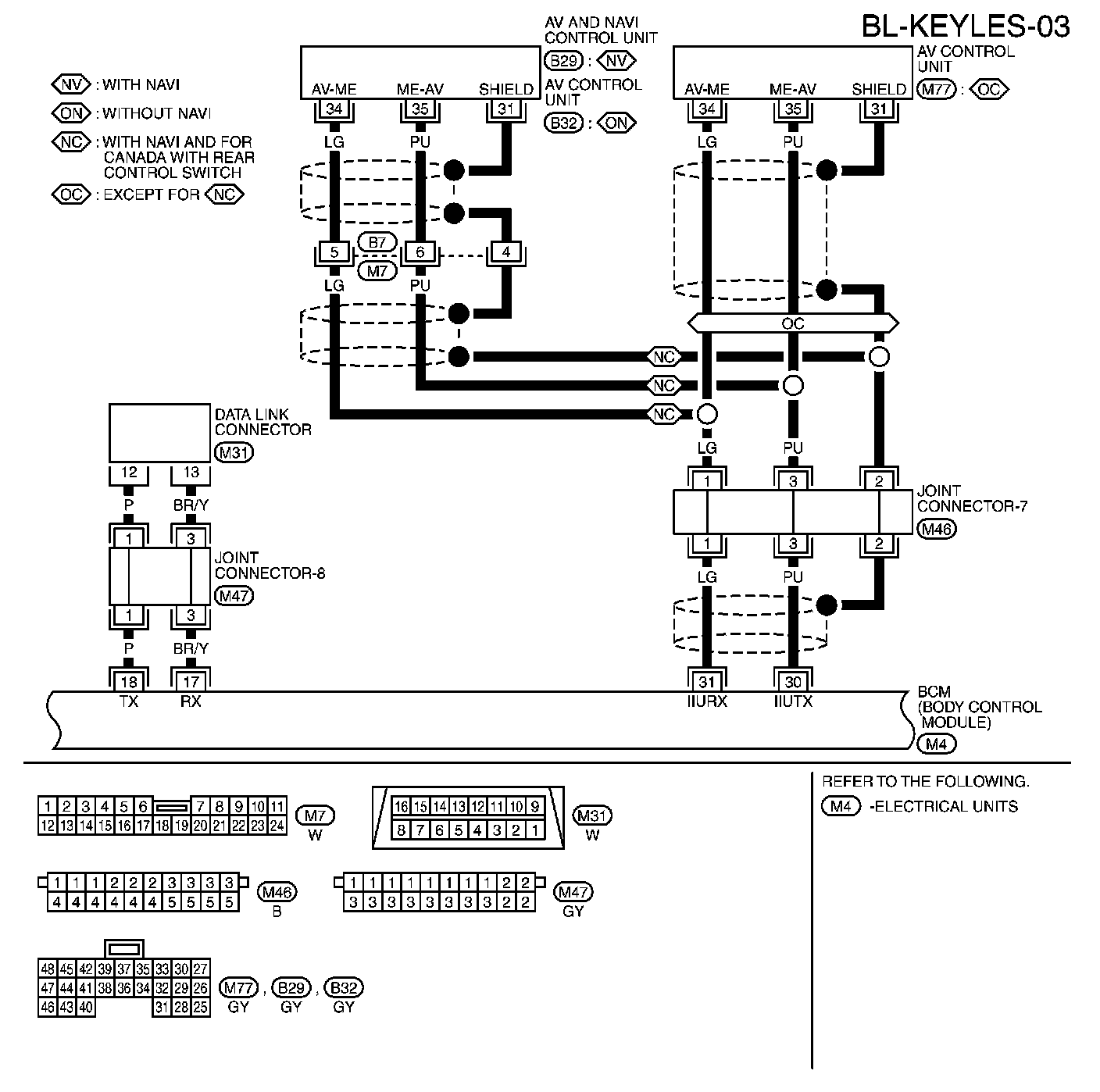

BL-KEYLES-03:

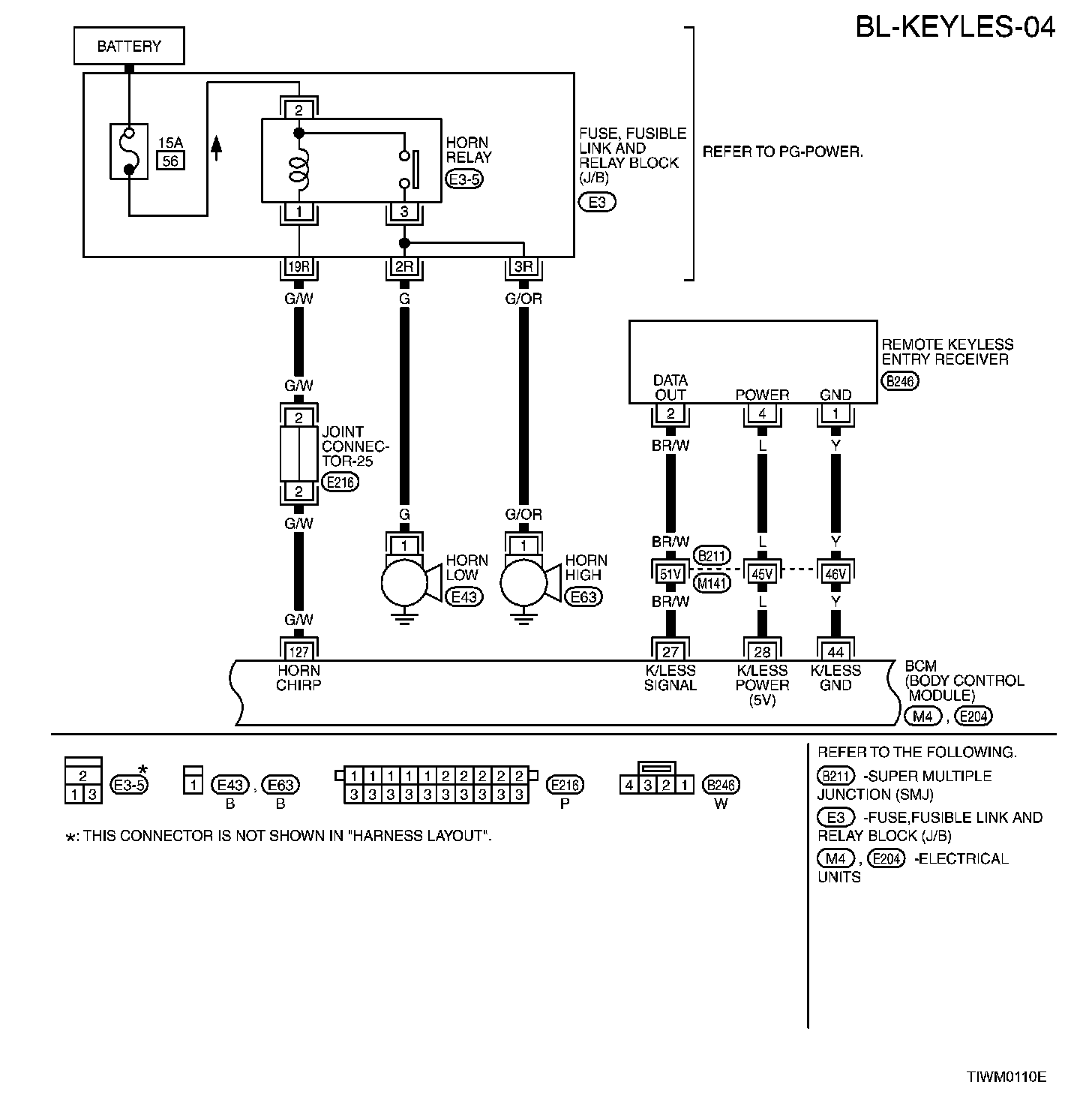

BL-KEYLES-04:

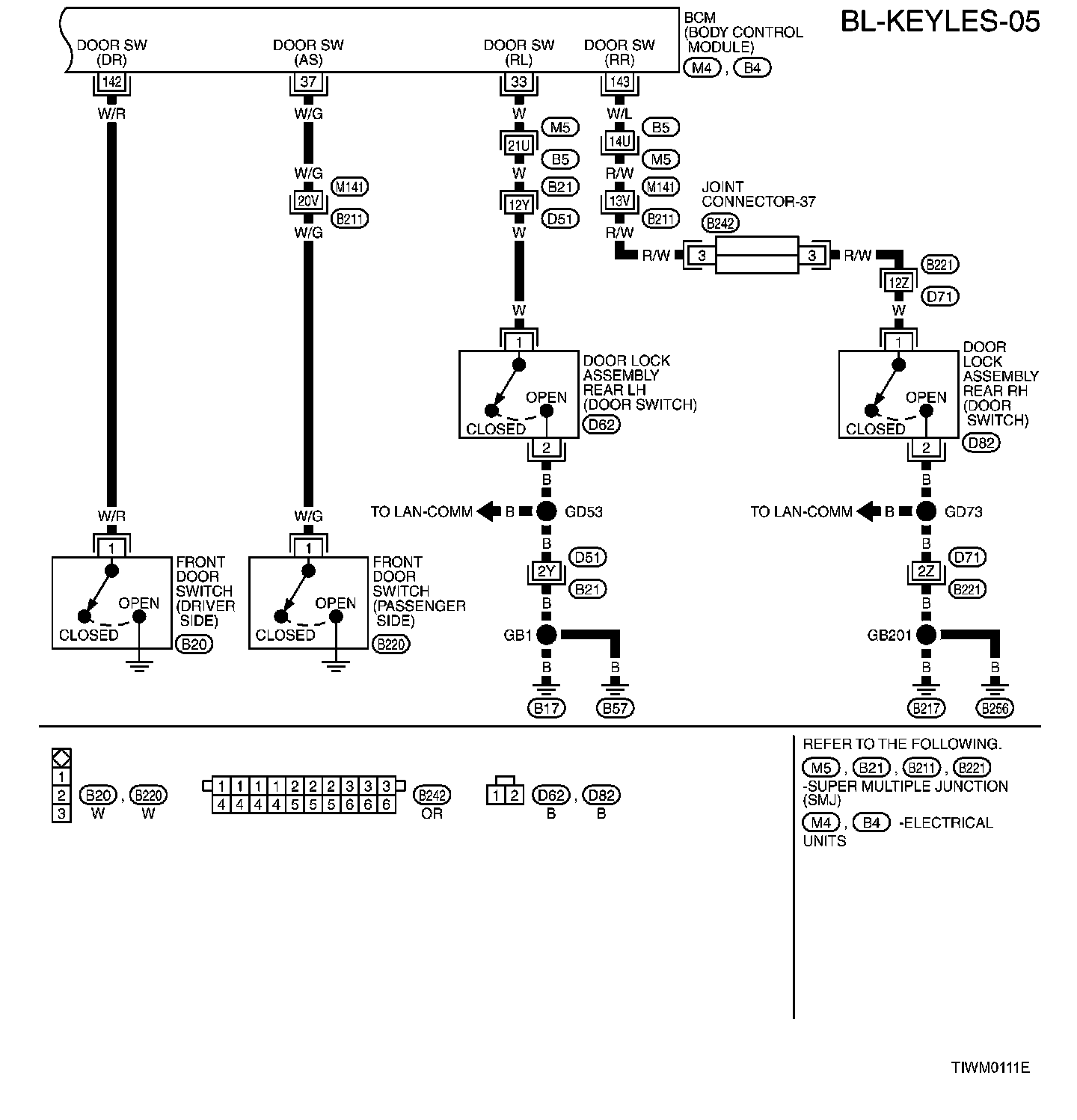

BL-KEYLES-05:

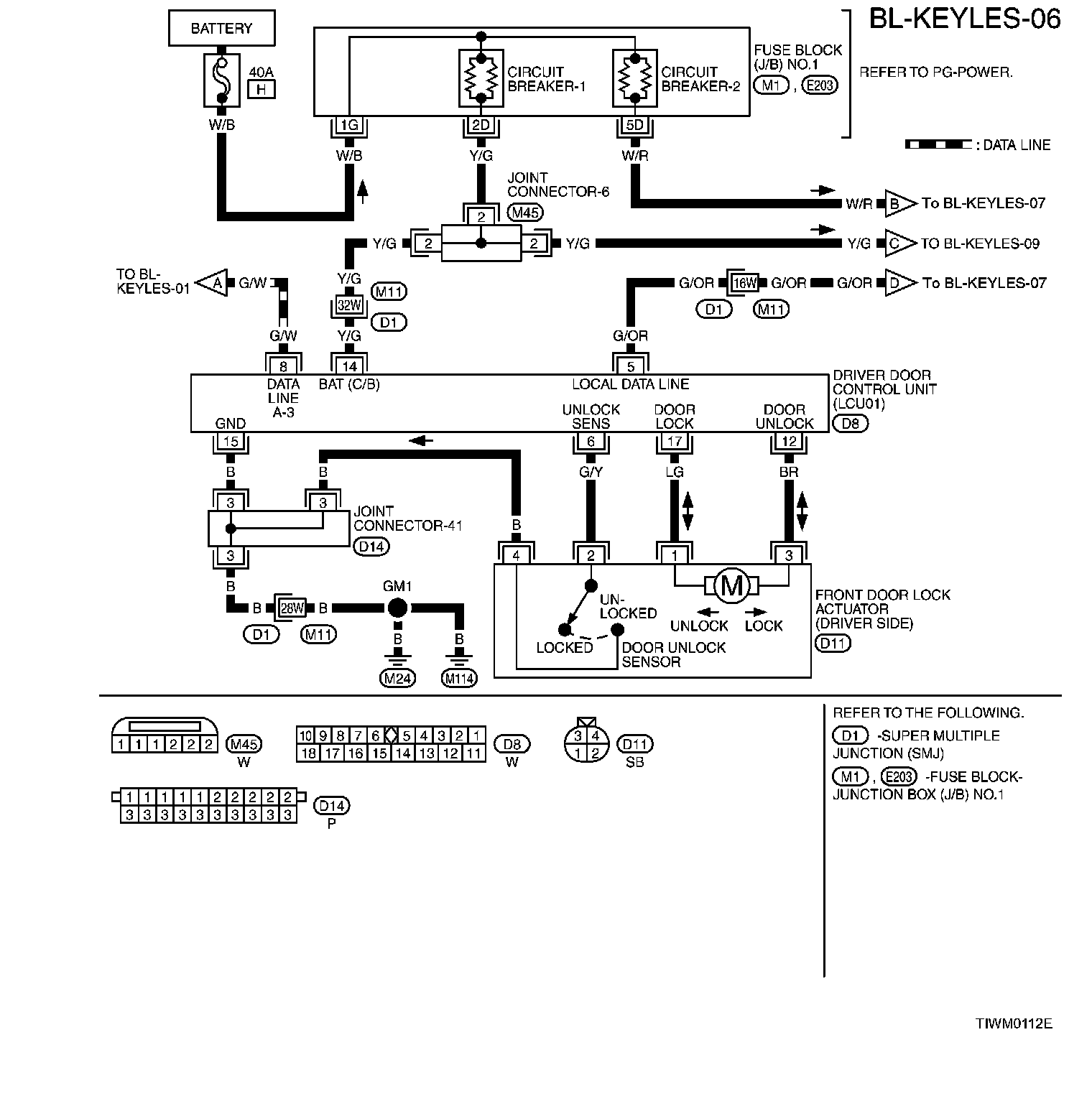

BL-KEYLES-06:

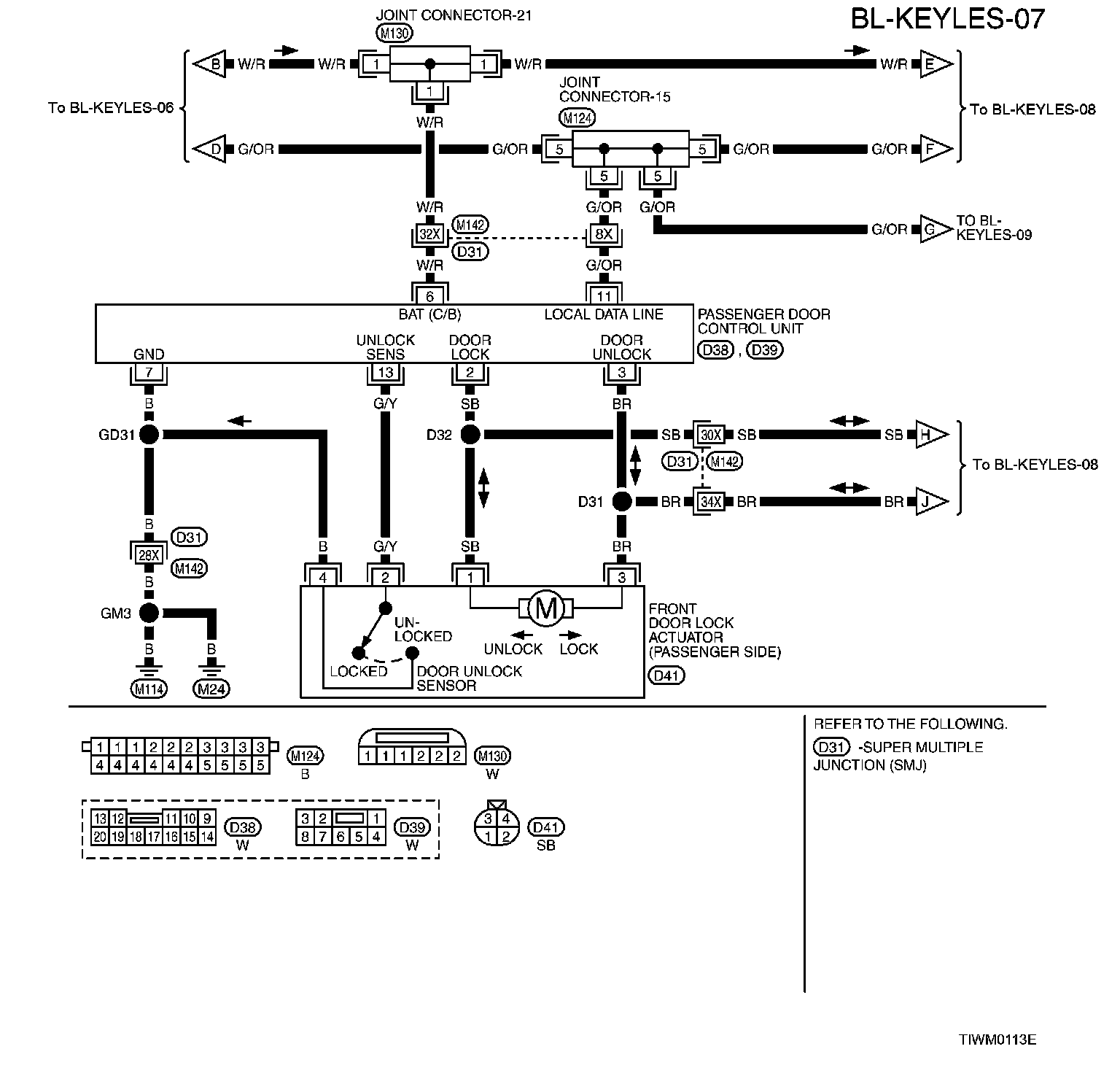

BL-KEYLES-07:



BL-KEYLES-08:



BL-KEYLES-09:
