AV-NAVI

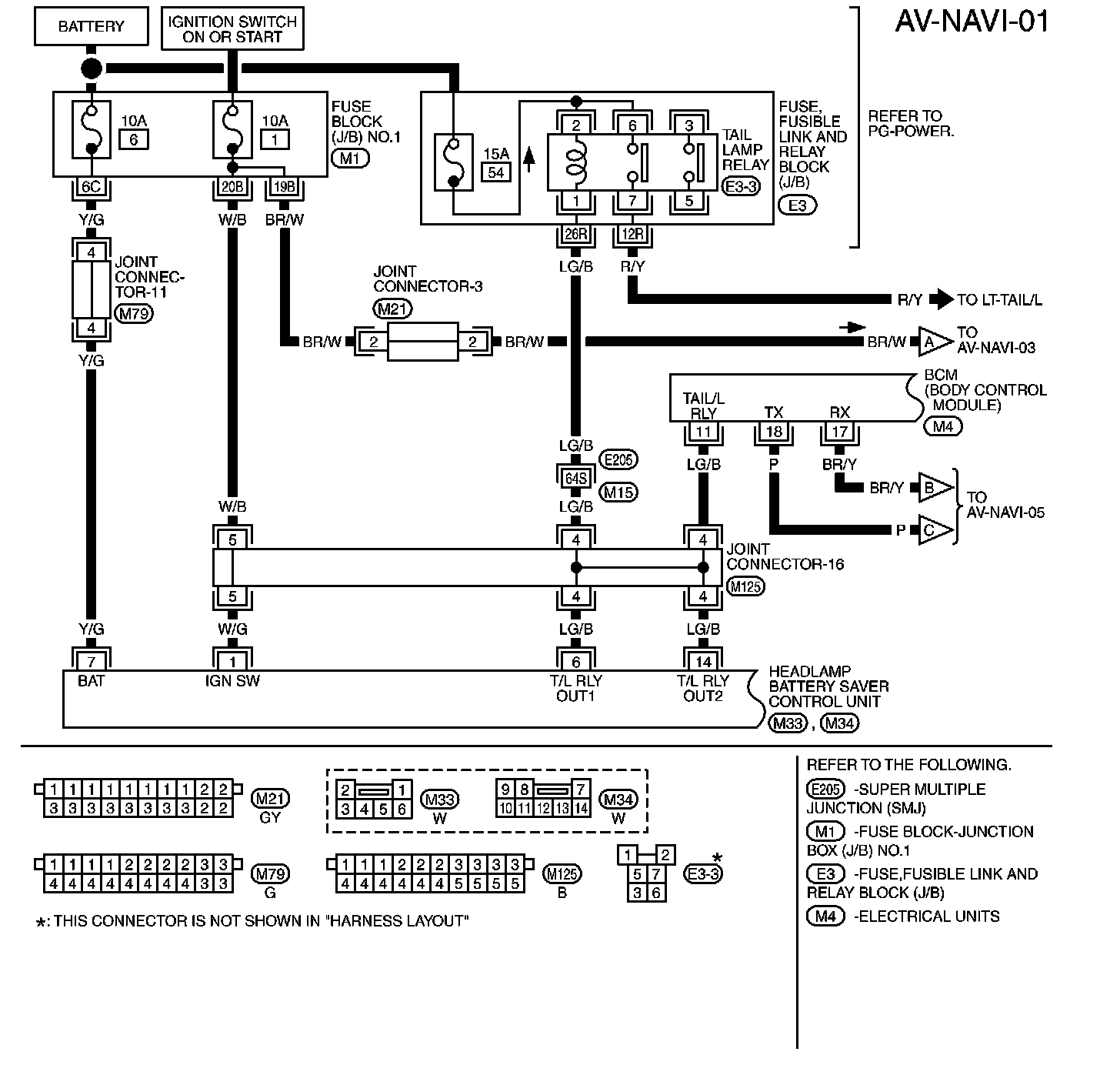

AV-NAVI-01:

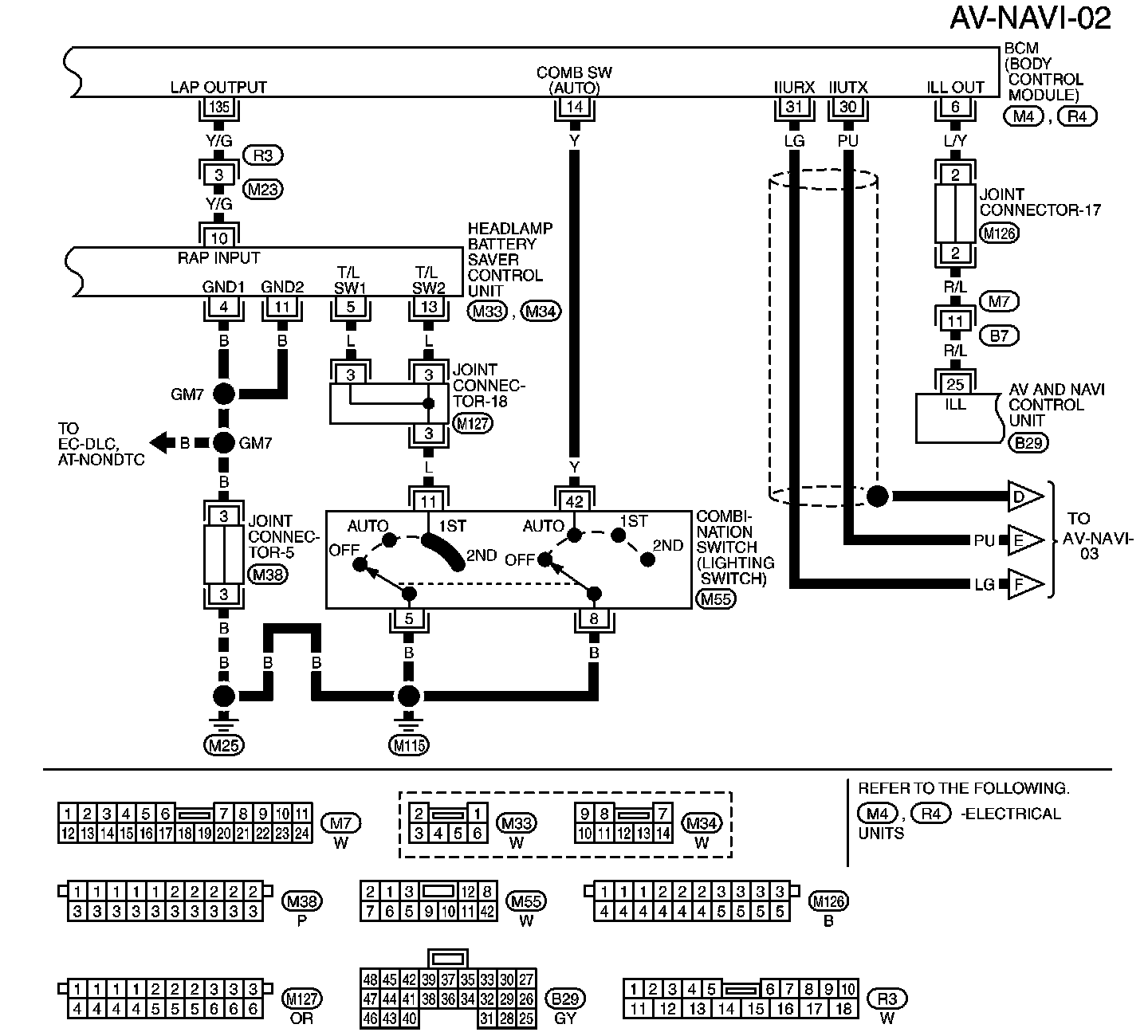

AV-NAVI-02:

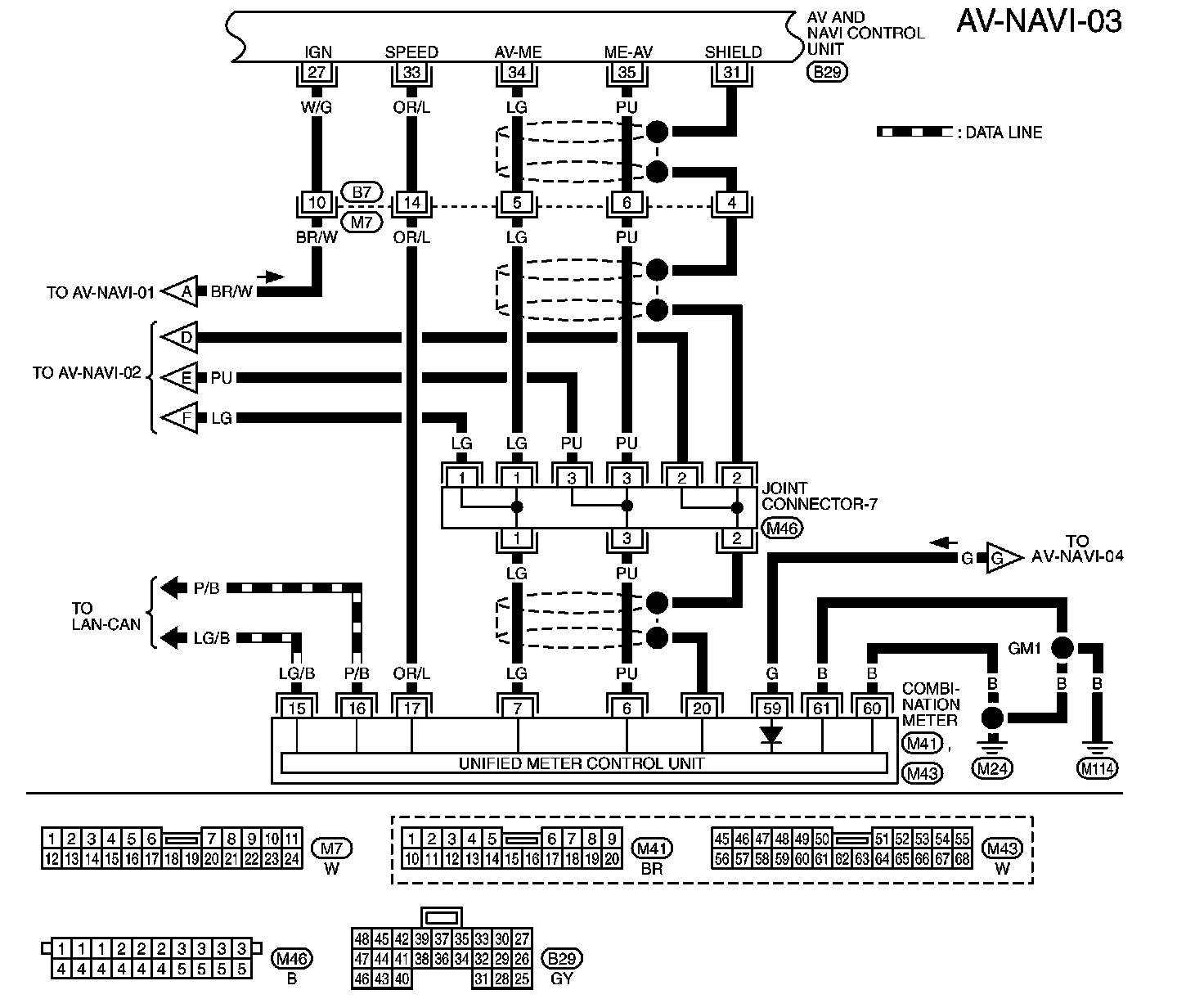

AV-NAVI-03:

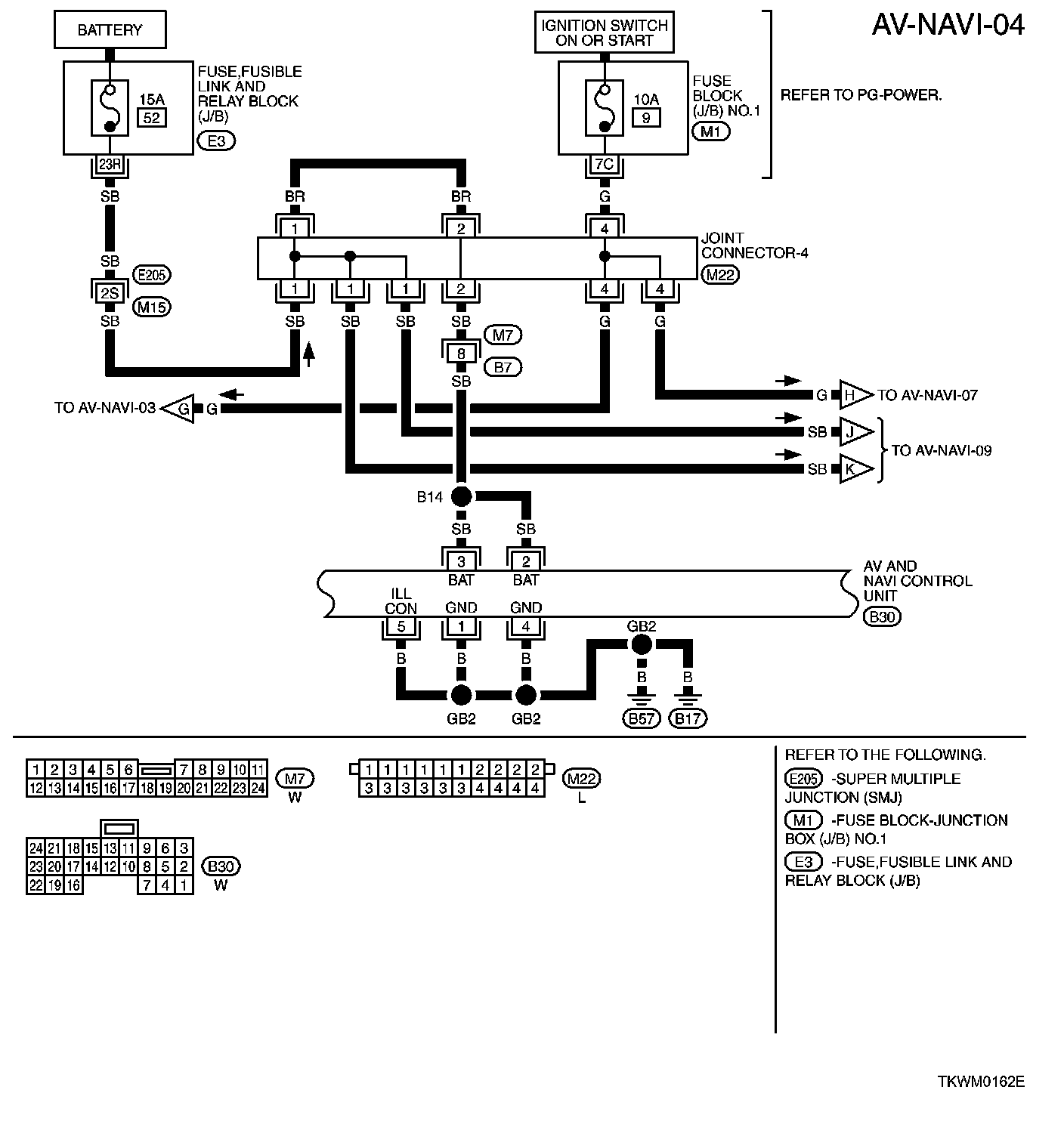

AV-NAVI-04:



AV-NAVI-05:



AV-NAVI-06:

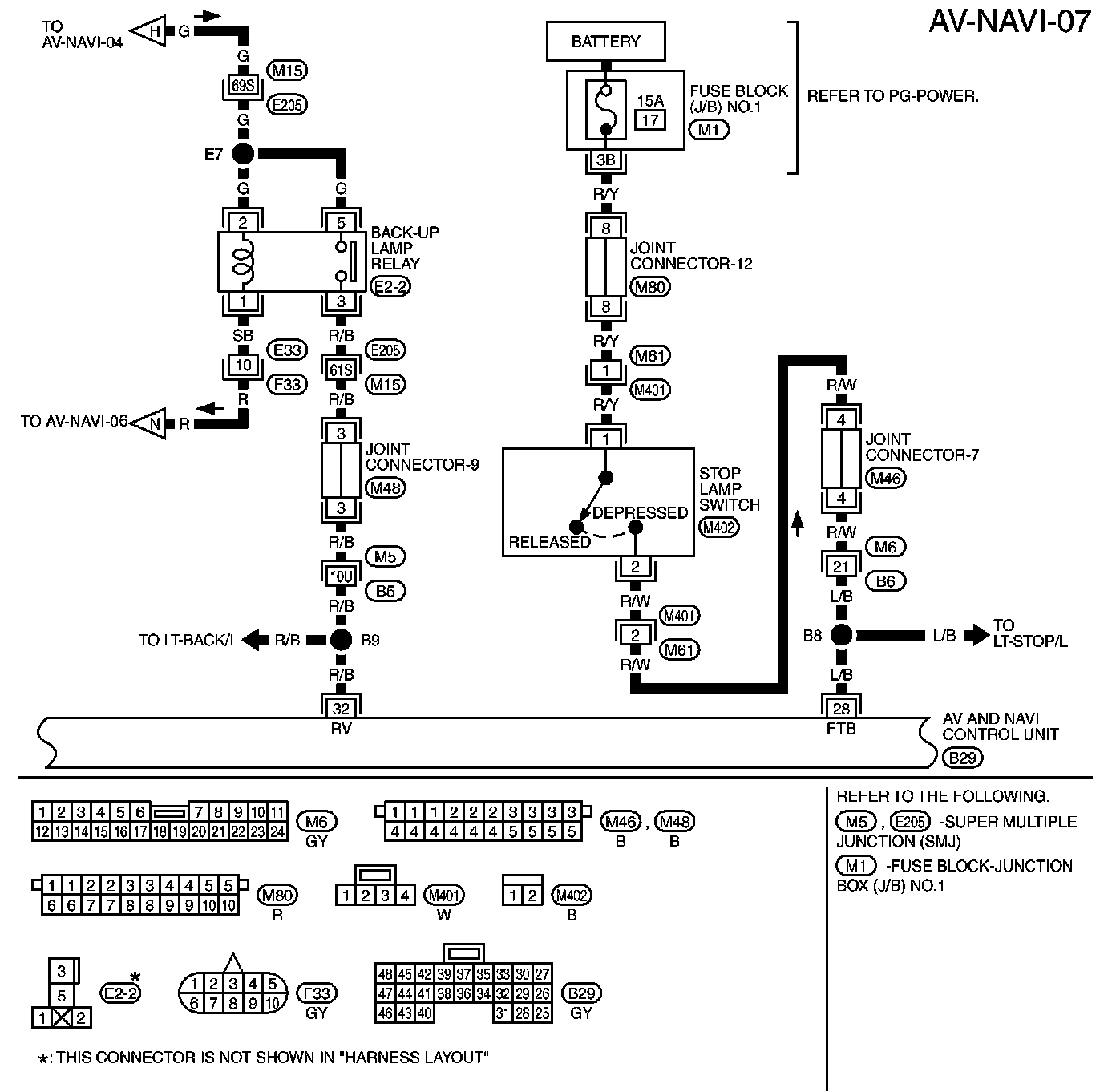

AV-NAVI-07 Connector Views:



AV-NAVI-08 Connector Views:

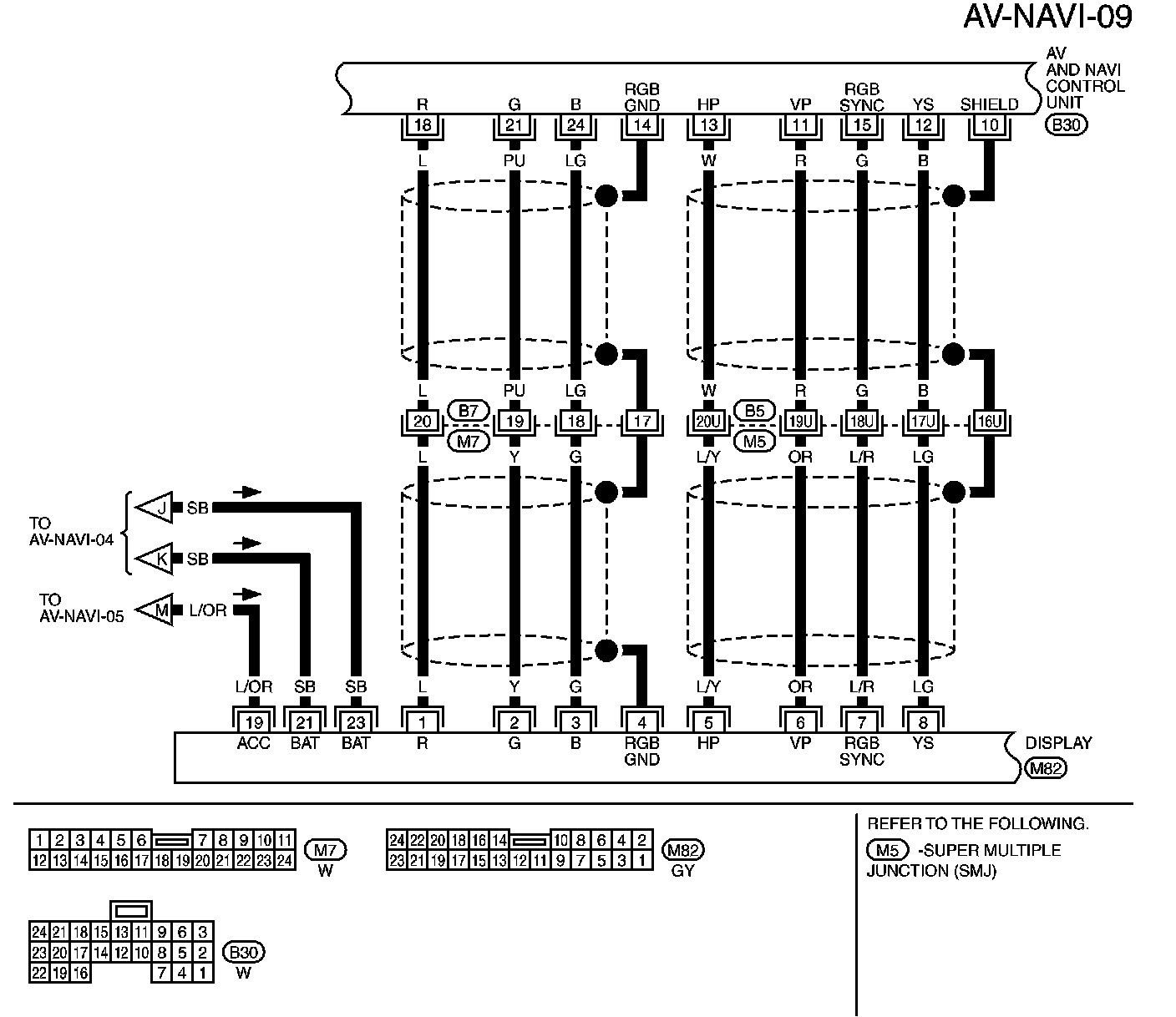

AV-NAVI-09:



AV-NAVI-10 Connector Views:
